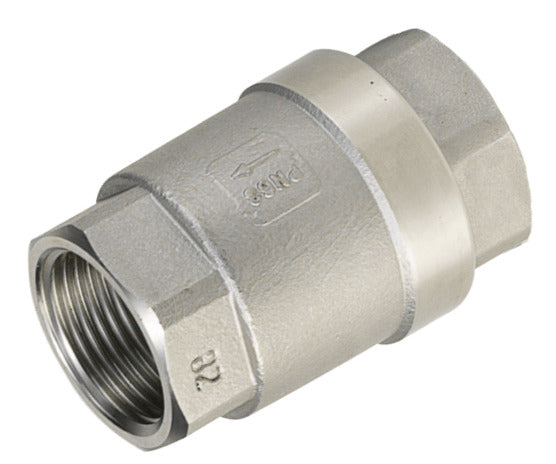

Rp1/4'' Stainless Steel 316 Check Valve PTFE 0.085-63bar (1.23-914psi) - High pressure
Rp 1/4 inch check valve made of stainless steel 316 with a PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.085 bar (1.23 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 63 bar (914 psi). The valve is suitable for operating temperatures between -20 and 200° C (-4 to 392° F). The Kv-value is 0.18 m3/h (3 l/min @1 bar pressure). In imperial units: Cv = 0.21 GPM @ 1 psi pressure.
- Regular price
- $34.24
Description
Rp 1/4 inch check valve made of stainless steel 316 with a PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.085 bar (1.23 psi). The valve has a spring to close the valve when the flow is below the minimum pressure and to prevent backflow. The maximum operating pressure is 63 bar (914 psi). The valve is suitable for operating temperatures between -20 and 200° C (-4 to 392° F). The Kv-value is 0.18 m3/h (3 l/min @1 bar pressure). In imperial units: Cv = 0.21 GPM @ 1 psi pressure.
Pros:
- Suitable for high pressure up to 63 bar (914 psi) applications
- Stainless steel 316 has better chemical resistance than stainless steel 304
- PTFE has a large temperature range and is resistant to almost all fluids
Mondeo CROMAX/AP series

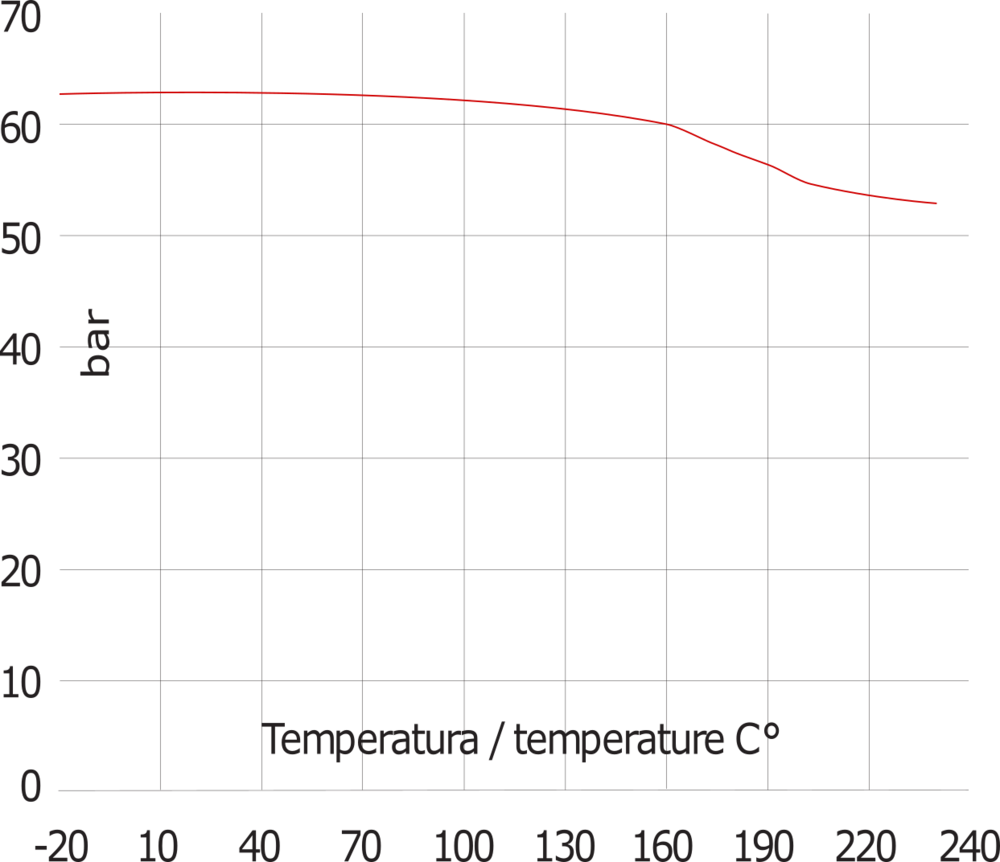

The Cromax series consists of stainless steel 316 check valves with PTFE sealing. They're available from Rp 1/4 up to 4 inch (ISO 7-1 EN 10226-1). With a PN 63 pressure rating and maximum temperatures of 240° C (464° F), the valves are suitable for harsh media such as steam.
