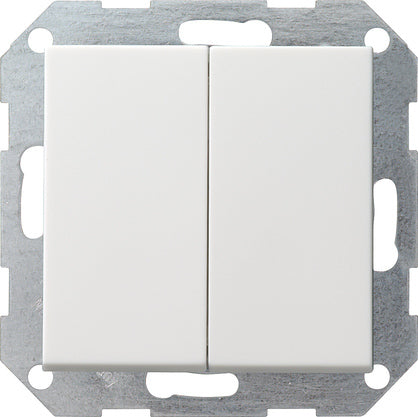

Gira System 55 Installation Switch - 012527

Gira System 55 Installation Switch - 012527
Gira System 55 Installation Switch - 012527
Image may vary slightly
See specifications for accurate information.
Reference: E29DD
Brand: Gira
Mfr. Part: 012527

This push button switch with 2-gang rocker from the System 55 series by Gira is suitable as a series switch. The switch always returns to its original position. This has the advantage that the switch position of the control dials are always the same.

View all
$24.95
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 47 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This push button switch with 2-gang rocker from the System 55 series by Gira is suitable as a series switch. The switch always returns to its original position. This has the advantage that the switch position of the control dials are always the same.

Downloads

Specifications

Wiring system
Series switch
Method of operation
Rocker/button
Assembly arrangement
Basic element with central cover plate
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
2
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with claw and screw
With mounting plate
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
The type of surface protection of the component.
Other
Surface finishing
Matt
Color
White
RAL-number (similar)
9010
Label space/information surface
No
Illumination
No
Suitable for degree of protection (IP)
IP20
Nominal voltage (V)
250
Rated current (A)
10
Switching current for fluorescent lamps (AX)
0
Feedback-signal contact
No
Connection type
Push-in clamp
Heating switch
No
Washing machine switch
No
Width of device (mm)
71
Height of device (mm)
71
Built-in depth (mm)
31.03
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
