Gira System 55 indoor Telephone Door Communication - 123903
Gira System 55 indoor telephone door communication, other, white, installation technology bus system, with video, speech station without handset, surface-mounted, eavesdrop protected, screen diagonal 55.9mm, screen diagonal (inch) 2.2, picture system PAL, door opening automatic, picture system feature color.
- Regular price
- $579.68
Description

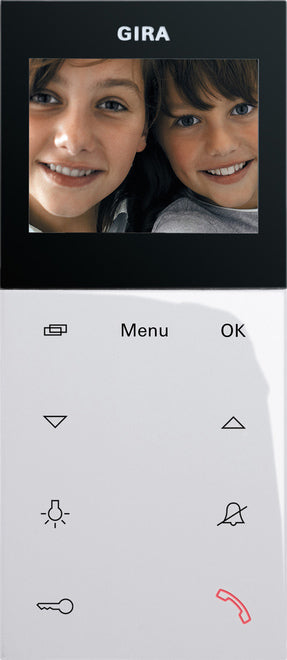

Surface-mounted video home station Plus System 55 in pure white glossy finish.
Features: When using an additional power supply for door communication, up to 28 surface-mounted home stations video can be used in parallel. The surface-mounted video home station Plus automatically detects whether a power supply for door communication is connected. A jumper between the additional power supply and bus is not required. It has a colour display with LED backlighting, with OSD function which provides text presentation in display for status display and menu guidance.
It features capacitive operating buttons with integrated LEDs for status display. The buttons are operated with a light touch. Connectable automatic door opener is another feature: when this function is activated, the door opener is automatically operated after pressing the door station call button. It also offers automatic call acceptance: direct speaking or listening into a room following an internal call. The device supports toll-free in-house intercom communication with up to ten other home stations.
The operating buttons of the surface-mounted video home station Plus control the following functions:
- Switching on and off the TFT colour display manually.
- Camera changeover - specific selection of connected colour cameras. Text in the display indicates which camera is currently being controlled.
- Switching light and other functions in conjunction with the switching actuator or the flush-mounted switching actuator.
- Control of the door opener.
- Switching the ringtone on and off.
- Call acceptance.
- Activation of the enforcement function.
- Adjustment of ring tone and voice volume.
Functions in the end customer menu include internal call, switching action, ringtone melody, brightness, colour intensity, contrast, switch-on time of the display, language (21 languages can be selected), button tones, automatic door opener, and automatic call acceptance.
The device also houses a card slot for an SD memory card.
New additional functions in the end customer menu:
- Internal image memory for up to 48 images. Manual transfer from internal to external image memory (SD memory card). Manual deletion of image memory. Manual triggering of snapshot. Rename switching actions and internal calls. Change date and time.
Properties of the SD memory card:
- Directory for ten ringing tones, five of which can be configured freely in WAVE format. Folder for external image memory (max. 200 images).
Note: Installation is possible without cover frame or with 2-gang cover frame without crossbar from the System 55 and Gira F100 design lines.
