Gira System 3000 Motion Switch (Complete) - 537702

Gira System 3000 Motion Switch (Complete) - 537702
Gira System 3000 Motion Switch (Complete) - 537702
Image may vary slightly
See specifications for accurate information.
Reference: E2YDN
Brand: Gira
Mfr. Part: 537702

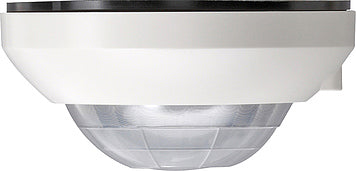

This System 3000 360° Bluetooth presence and motion detector from Gira is suitable for automatic switching of lighting depending on heat movement and ambient brightness. The motion detector should be ceiling mounted on a base element, with the optimum ceiling mounting height being 3 meters. A push-on plate can be used to limit the registration area. To operate, a secondary connection 2-wire or 3-wire, rotary dimmer secondary connection or impulse switch should be connected.

View all
$151.78
excl VAT
In stock +31 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 31 days. Up to 18 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 33 - 34 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This System 3000 360° Bluetooth presence and motion detector from Gira is suitable for automatic switching of lighting depending on heat movement and ambient brightness. The motion detector should be ceiling mounted on a base element, with the optimum ceiling mounting height being 3 meters. A push-on plate can be used to limit the registration area. To operate, a secondary connection 2-wire or 3-wire, rotary dimmer secondary connection or impulse switch should be connected.

Downloads

Other Documentation (EN)
pdf
Download

Specifications

Model
Presence detector
Sensor type
Passive infrared
With DALI interface
No
Constant light control
Yes
HVAC-control
No
Forced switch on
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Networkable
No
Scan angle (°)
360
Optimum mounting height (m)
3
Staircase monitoring
No
Bridging switch
No
Max. transmission range sideways (m)
0
Max. transmission range frontally (m)
0
Diameter detection range on floor (m)
0
Suitable for wireless transmission
No
Remote operation
Yes
With remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
Yes
Dim function with dimmer basic element
Yes
Mounting method
Other
Connection type
Other
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Thermoplastic
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Other
Anti-bacterial treatment
No
Color
White
RAL-number (similar)
9010
Transparent
No
Voltage-type
AC
Min. switch-on time (s)
0
Max. duty cycle (min)
0
Switch-off delay (s)
0
Switching-on delay (s)
0
Detection angle horizontal (°)
0 ° to 0 °
Response value luminosity (lx)
0 lx to 0 lx
Max. switching power (W)
0
Suitable for C-load
No
Temperature (°C)
0 °C to 0 °C
Max. starting current (A)
0
Control current (mA)
0
Substation input
Yes
With alarm function
No
Built-in depth (mm)
14.8
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
