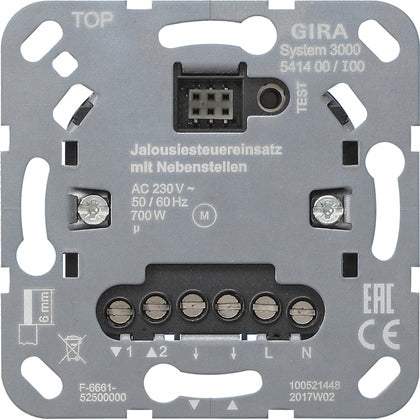

Gira System 3000 Blind Control - 541400

Gira System 3000 Blind Control - 541400
Gira System 3000 Blind Control - 541400
Image may vary slightly
See specifications for accurate information.
Reference: E273A
Brand: Gira
Mfr. Part: 541400

This blind control element from the System 3000 series from Gira is suitable for controlling electrically operated blinds, shutters and awnings. In combination with an attachment, an individual intermediate position can be stored. Control of a motor, for example to set end positions, is possible without an attachment. It is possible to store a ventilation position. The louver control with input side unit can be used as a main unit or side unit.

View all
$110.63
excl VAT
In stock +31 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 31 days. Up to 24 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 33 - 34 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This blind control element from the System 3000 series from Gira is suitable for controlling electrically operated blinds, shutters and awnings. In combination with an attachment, an individual intermediate position can be stored. Control of a motor, for example to set end positions, is possible without an attachment. It is possible to store a ventilation position. The louver control with input side unit can be used as a main unit or side unit.

Downloads

Other Documentation (EN)
pdf
Download

Specifications

Assembly arrangement
Basic element
Integrated timer
No
With brightness sensor connection
No
Suitable for wind sensor
No
Suitable for rain sensor
No
With glass breaking detector connection
No
With Astro program
No
Substation input
Yes
With memory function
No
Sun protection value adjustable (lx)
0 lx to 0 lx
Twilight value adjustable (lx)
0 lx to 0 lx
Random generator
No
Switch-off protection
No
Mounting method
Flush mounted (plaster)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Other
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Halogen free
No
Surface protection
The type of surface protection of the component.
Other
Color
Other
RAL-number (similar)
0
Transparent
No
Suitable for degree of protection (IP)
IP20
Max. switching power (W)
1000
Nominal voltage (V)
230
Type of fastening
Mounting with claw and screw
Min. depth of built-in installation box (mm)
24
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
