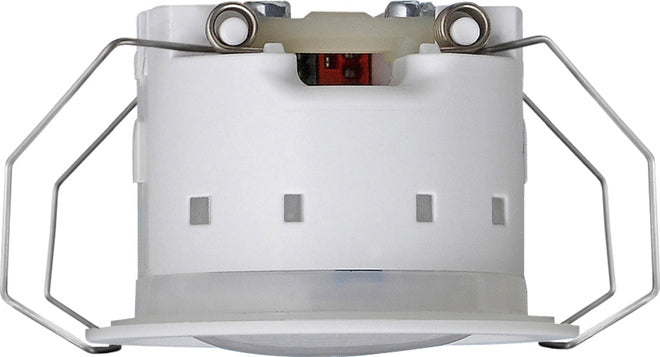

Gira KNX Motion Detector Bus System - 222500

The Mini Komfort Presence Detector for KNX is a multifaceted device that can be employed for presence tracking, motion detection, or alarm telegrams monitoring both indoors and outdoors. Its understated and slim design, combined with a flexible installation concept, renders it particularly apt for properties with high architectural requirements.

• Extremely slim installation.
• Terminal mounting on suspended ceilings.
• Ceiling mounting on stable ceilings in device box in line with DIN 49073 using optional accessories.
• Surface mounted installation in surface-mounted box using optional accessories.
• Protection type IP44 permits installation outdoors and in areas prone to moisture.
• The color of the design rings can be adjusted to match the wall or ceiling.
• Convenient front access to all the operating elements (for example, the programming button) of the device once the design ring is removed.
• Ceiling-mounted device with incorporated KNX bus coupler.
• PIR sensors: three sensors, integrated brightness sensor.
• Manual adjustability of motion detection sensitivity.
• Sensitivity configurable by ETS.
• Sensitivity adjuster on the device can be deactivated using the software.
• Indication of motion detection (either constant or only during walking test).
• Separate evaluation in the long range of the three PIR sensors with 120 detection range each with overlapping.
• Manual operation using IR remote control.
• A maximum of 5 + 2 function blocks are configurable.
• Various functions can be configured for every function block.
• Integrated temperature sensor for measuring the room temperature (from index level I02).

Please note, the Mini Presence Detector is not suitable for alarm messages in VdS-compliant alarm systems.
