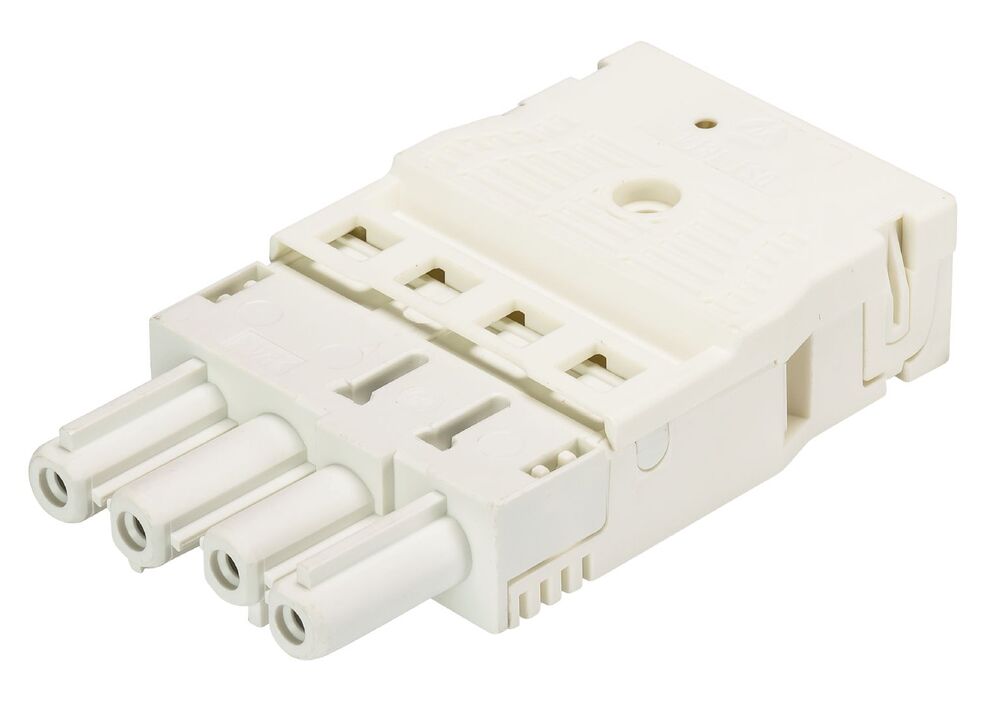

Gesis Classic Connector Female 4P 20A 400V Wieland - 92.943.0053.0 [50 Pieces]

Gesis Classic Connector Female 4P 20A 400V Wieland - 92.943.0053.0 [50 Pieces]
Gesis Classic Connector Female 4P 20A 400V Wieland - 92.943.0053.0 [50 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3JNC-X50
Brand: Wieland
Mfr. Part: 92.943.0053.0

The Wieland GST18i4 is a female plug connector designed for building installations. This connector, in white, comes in a compact size of 42.25x17x75mm and uses a spring clamp connection method. The pole marking is 2. N. PE. 1. This connector is capable of accepting a solid connection cross-section from 0.75 to 2.5mm² and a flexible connection cross-section from 0.75 to 1.5mm². Its design and features make it a highly dependable tool for various electrical installations.

Contains 50 pieces

View all
Note: product cannot be returned
$610.74
excl VAT
In stock +39 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 41 - 42 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Wieland GST18i4 is a female plug connector designed for building installations. This connector, in white, comes in a compact size of 42.25x17x75mm and uses a spring clamp connection method. The pole marking is 2. N. PE. 1. This connector is capable of accepting a solid connection cross-section from 0.75 to 2.5mm² and a flexible connection cross-section from 0.75 to 1.5mm². Its design and features make it a highly dependable tool for various electrical installations.

Contains 50 pieces

Downloads

Specifications

Rated voltage (V)
400
Rated current (A)
20
Number of poles
4
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP40
Connection type
Spring clamp connection
Model
Bus
Cable diameter (mm)
9.5 mm to 11.5 mm
Connection cross section (fine-strand) (mm²)
0.75 mm² to 1.5 mm²
Connection cross section (solid-core) (mm²)
0.75 mm² to 2.5 mm²
Number of connections per pole
2
Pole codification
2, N, PE, 1
Mechanical coding
Yes
Colour coding/contact insert
White
Locking mechanism
Integrated in plug-in connector
With strain relief
Yes
Max. continuous temperature resistance contact part (°C)
100
Max. continuous temperature resistance strain relief (°C)
100
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Polyamide (PA)
Halogen free
Yes
Fire load (kWh)
0.155
Contact material
CuZn
Surface treatment contacts
Tinned
Pollution degree
2
Rated surge voltage (kV)
4
Length (mm)
75
Height (mm)
The product's height without packaging.
17
Width (mm)
The product's width without packaging.
42.25
