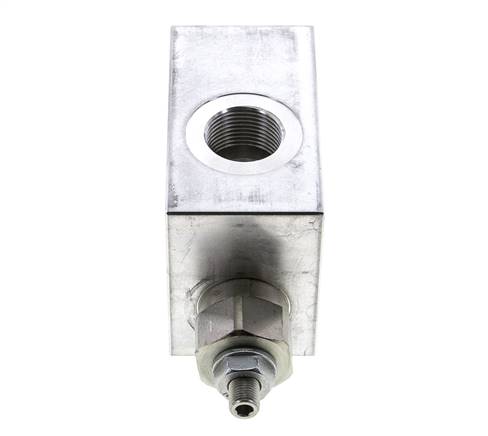

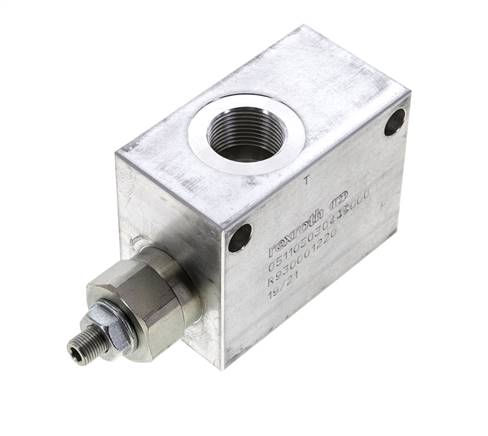

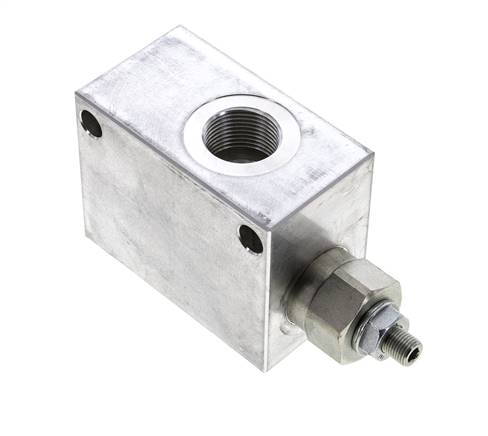

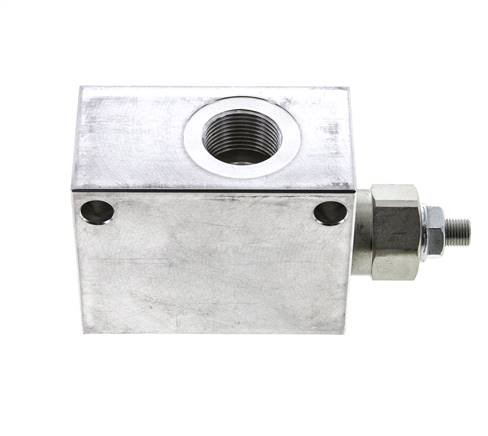

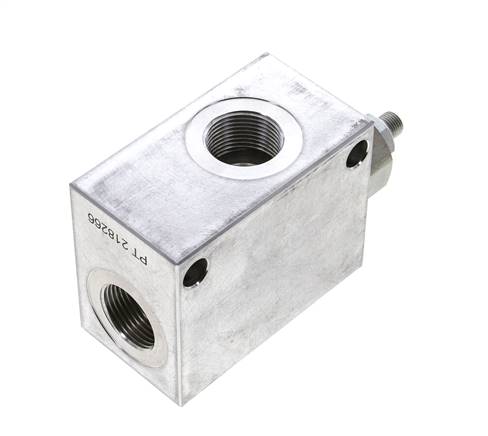

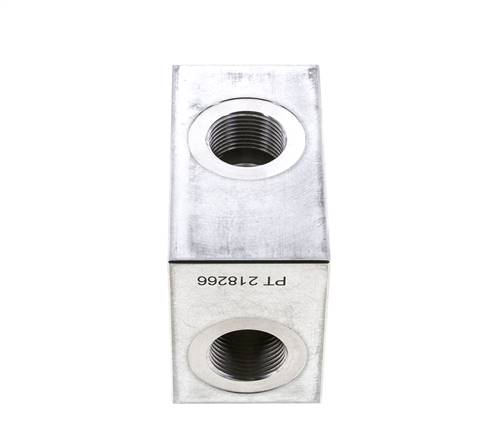

G3/4'' Hydraulic Inline Relief Valve 3-70bar 150l/min

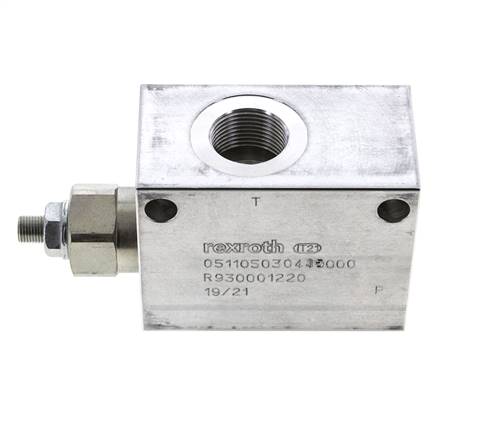

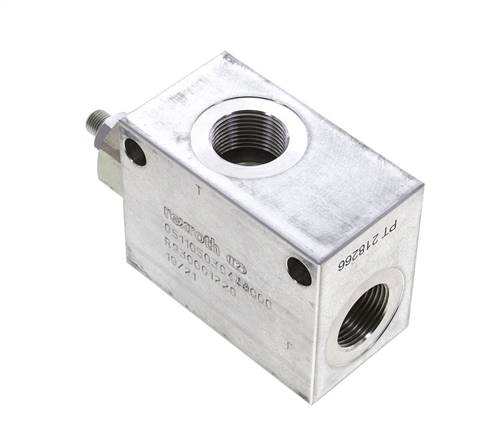

Pilot-operated hydraulic pressure relief valve for inline mounting, G3/4 BSPP. Adjustable from 3 to 70 bar. Nominal flow 150 l/min. It limits the system pressure by relieving excess oil from P to T, for overpressure protection or continuous operation. Aluminium body with galvanised steel cartridge and NBR seals, for mineral-oil hydraulics from -20 to +80 °C.
- Regular price
- $255.47 USD
We sell only to registered businesses
Description

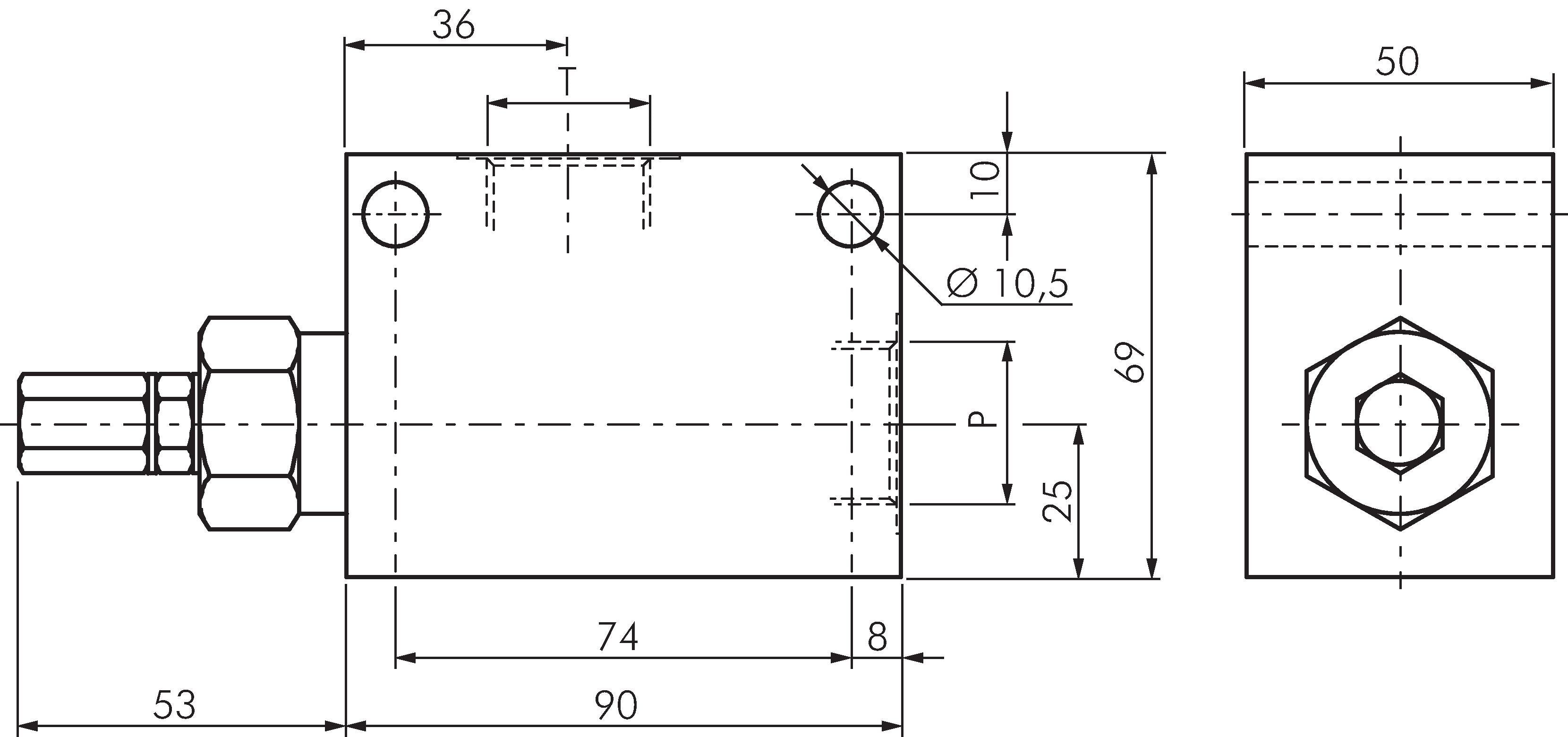

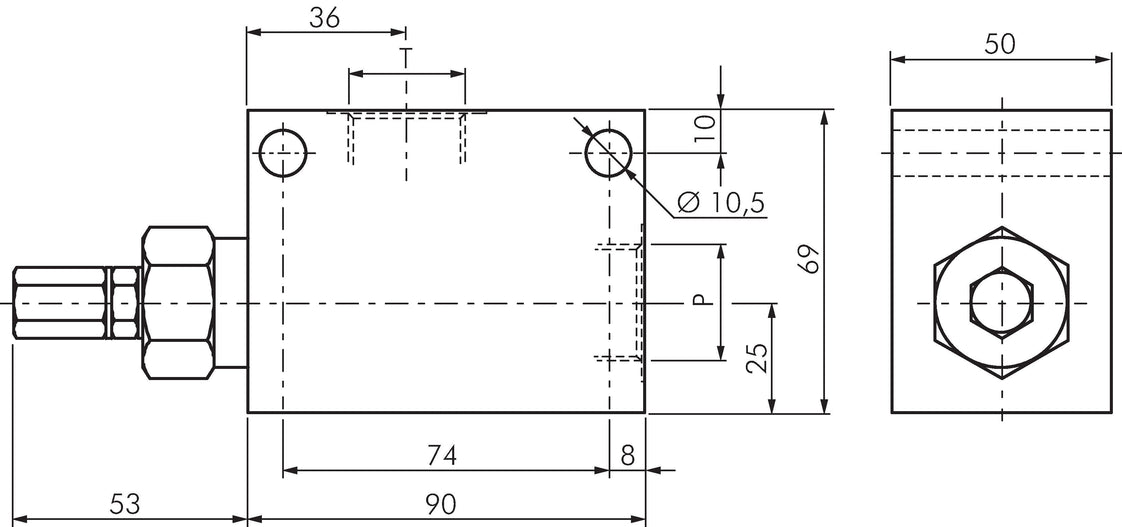

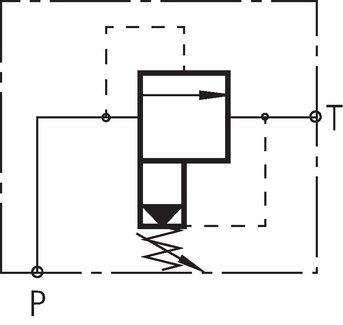

Fit it in the pressure line: P passes straight through the body, and oil above the set pressure flows out at T back to tank. Pilot operated, for flows up to 150 l/min. The same body is available with setting ranges up to 70, 105, 210 or 350 bar. Mount it through the 10.5 mm holes in the body.
Pros:
- Fits straight into the pressure line (P through, T to tank)
- For overpressure protection and continuous operation
- Pilot operated for flows up to 150 l/min
Cons:
- Lowest setting measured at 5 l/min - at higher flow the lowest achievable pressure rises
- Adjustable up to 70 bar only - for higher settings, choose a higher pressure range
Series:
Inline hydraulic pressure relief valves with an aluminium body, for limiting the system pressure in overpressure protection or continuous operation. The pressure line passes straight through the body (two P ports), and oil above the set pressure is relieved to T. Direct-operated versions cover 30 l/min (G3/8 and G1/2) and 80 l/min (G1/2 and G3/4); pilot-operated versions cover 150 l/min (G1/2, G3/4 and G1). Setting ranges from 3-70 bar up to 100-350 bar; the minimum settings are measured at 5 l/min. Aluminium body, galvanised steel screw-in cartridge and NBR seals, for mineral-oil hydraulic fluids from -20 to +80 °C. The valves mount through holes in the body.
