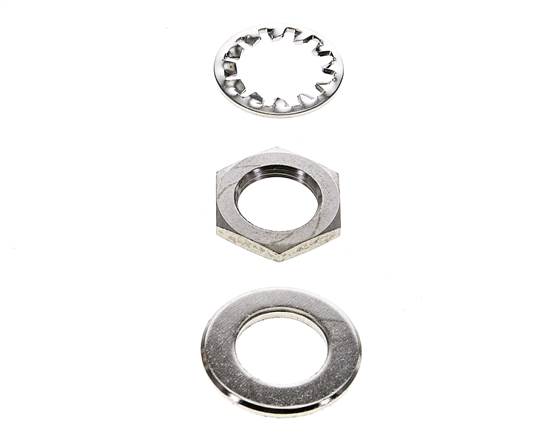

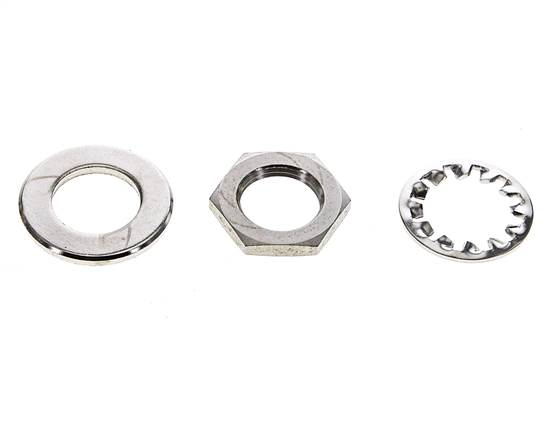

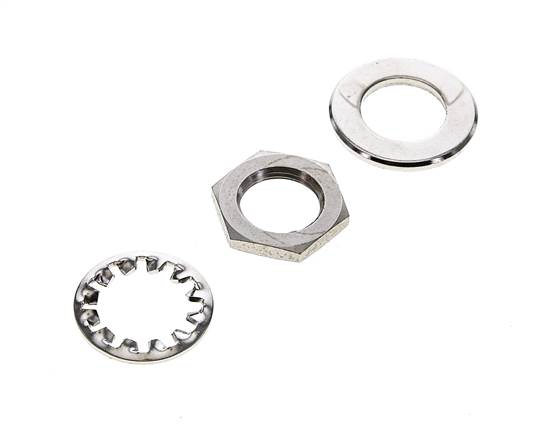

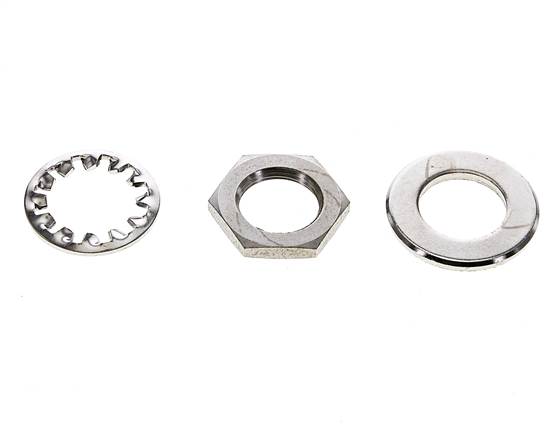

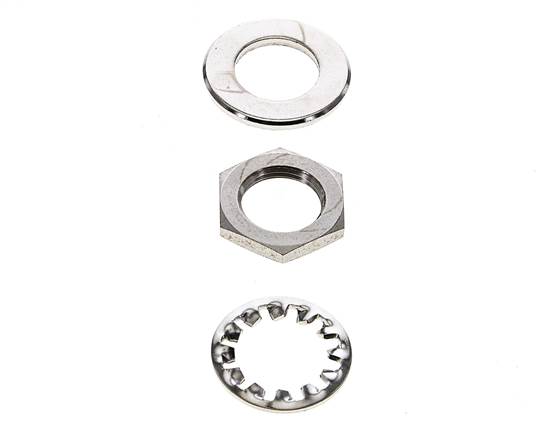

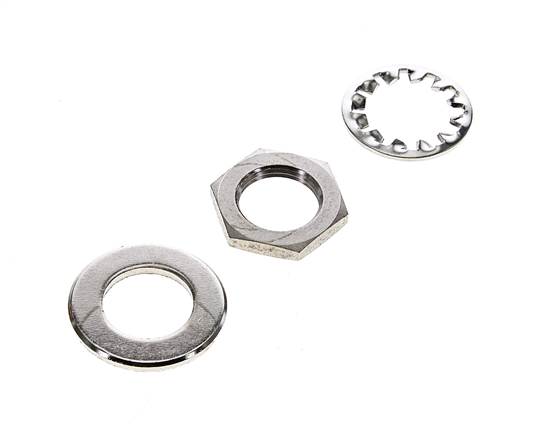

G1/4 & G3/8 Hydraulic Throttle Valve Panel Mounting Set

The threaded neck under the adjustment knob goes through the panel hole, and the thin hex nut clamps the valve to the panel from the front. The toothed lock washer keeps the nut from working loose. The valve stays in the hydraulic line behind the panel, so hoses and fittings are out of the way while the operator adjusts the speed from the front. This set fits the G1/4 and G3/8 sizes. The set carries no pressure and has no contact with the oil. The valve is ordered separately.

Pros:

• Adjustment knob on the front of the panel, valve and hoses behind it
• Fits both the throttle valve and the throttle check valve of the same size
• Toothed lock washer keeps the nut from working loose

Cons:

• Fits G1/4 and G3/8 valves only - for other sizes, choose the matching set

Series:

Panel mounting sets for the hydraulic throttle valves and throttle check valves rated to 350 bar. Four sets cover the six valve sizes: one for G1/8, one for G1/4 and G3/8, one for G1/2 and G3/4, and one for G1. Each set contains a flat washer, a thin hex nut and a toothed lock washer. The nut clamps the threaded neck of the valve to a control panel, so only the adjustment knob sits on the front while the valve, hoses and fittings stay behind the panel. The sets carry no pressure and have no contact with the hydraulic oil.
