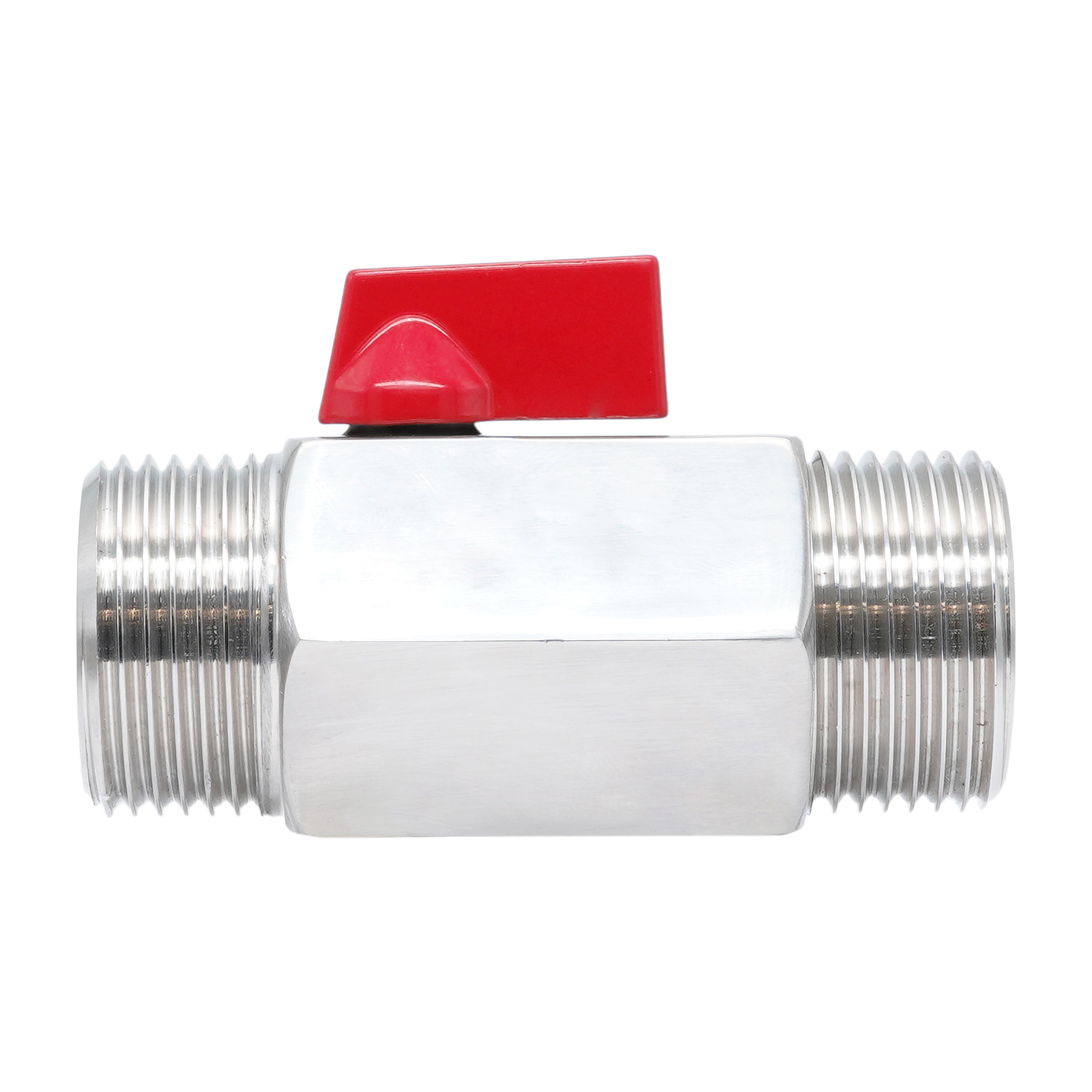

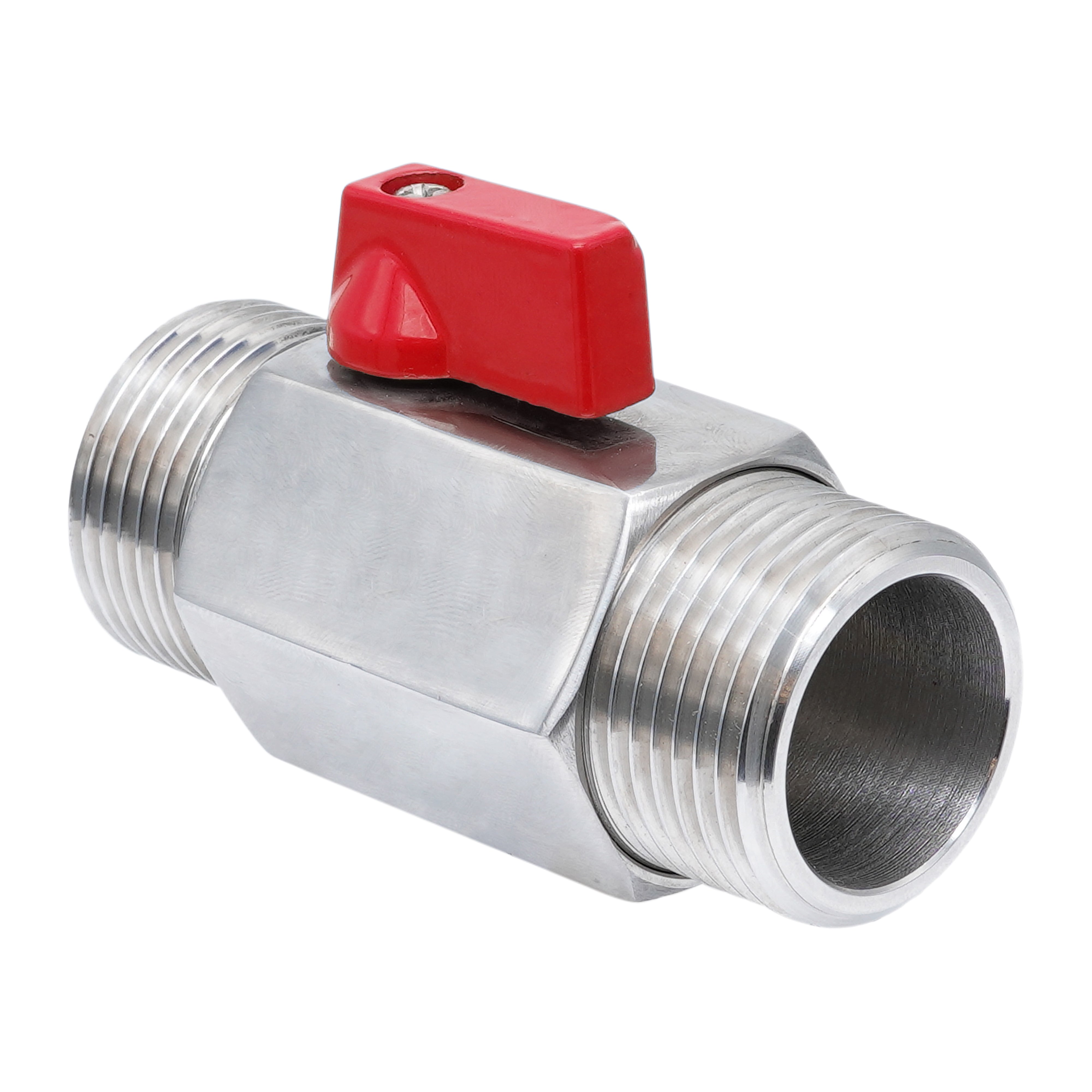

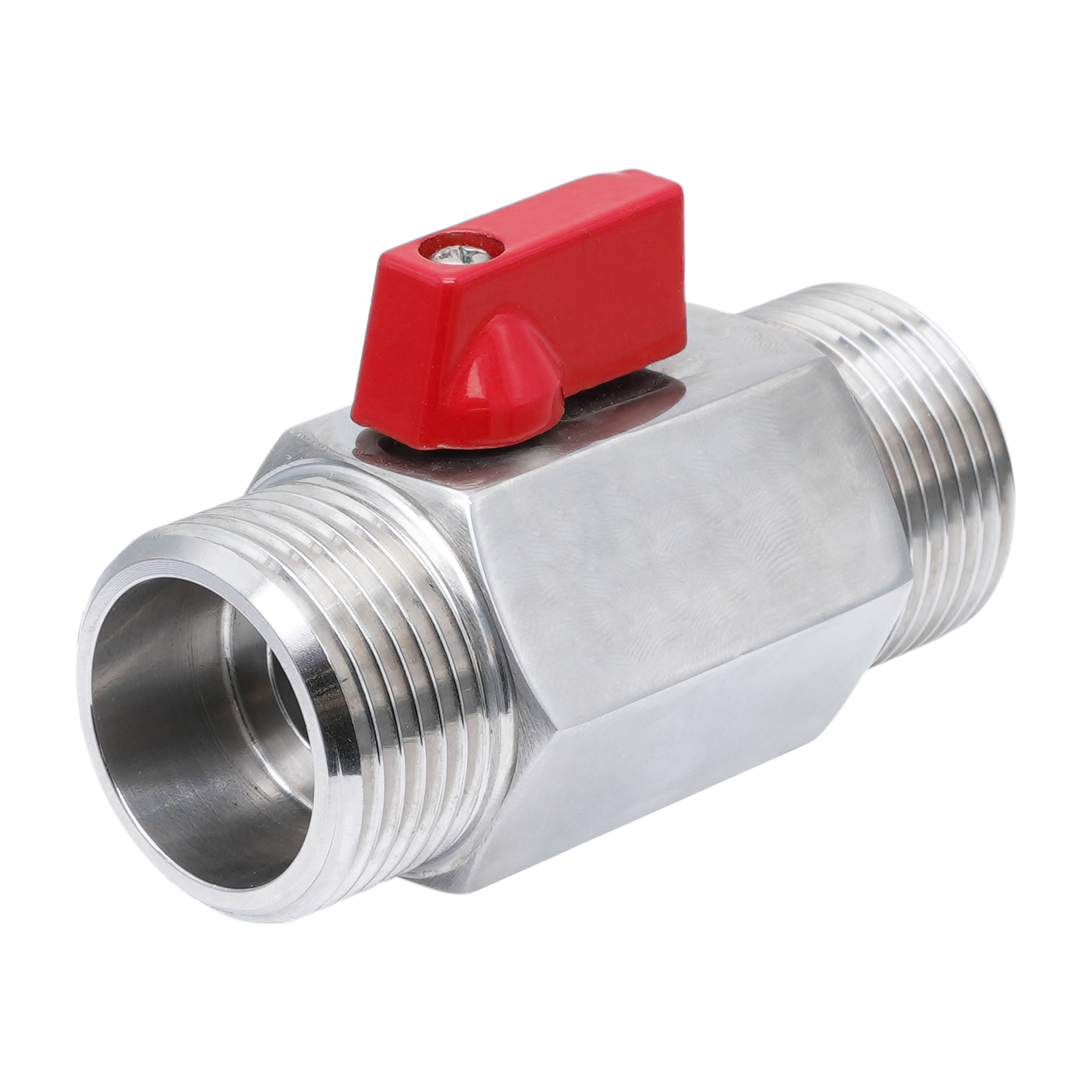

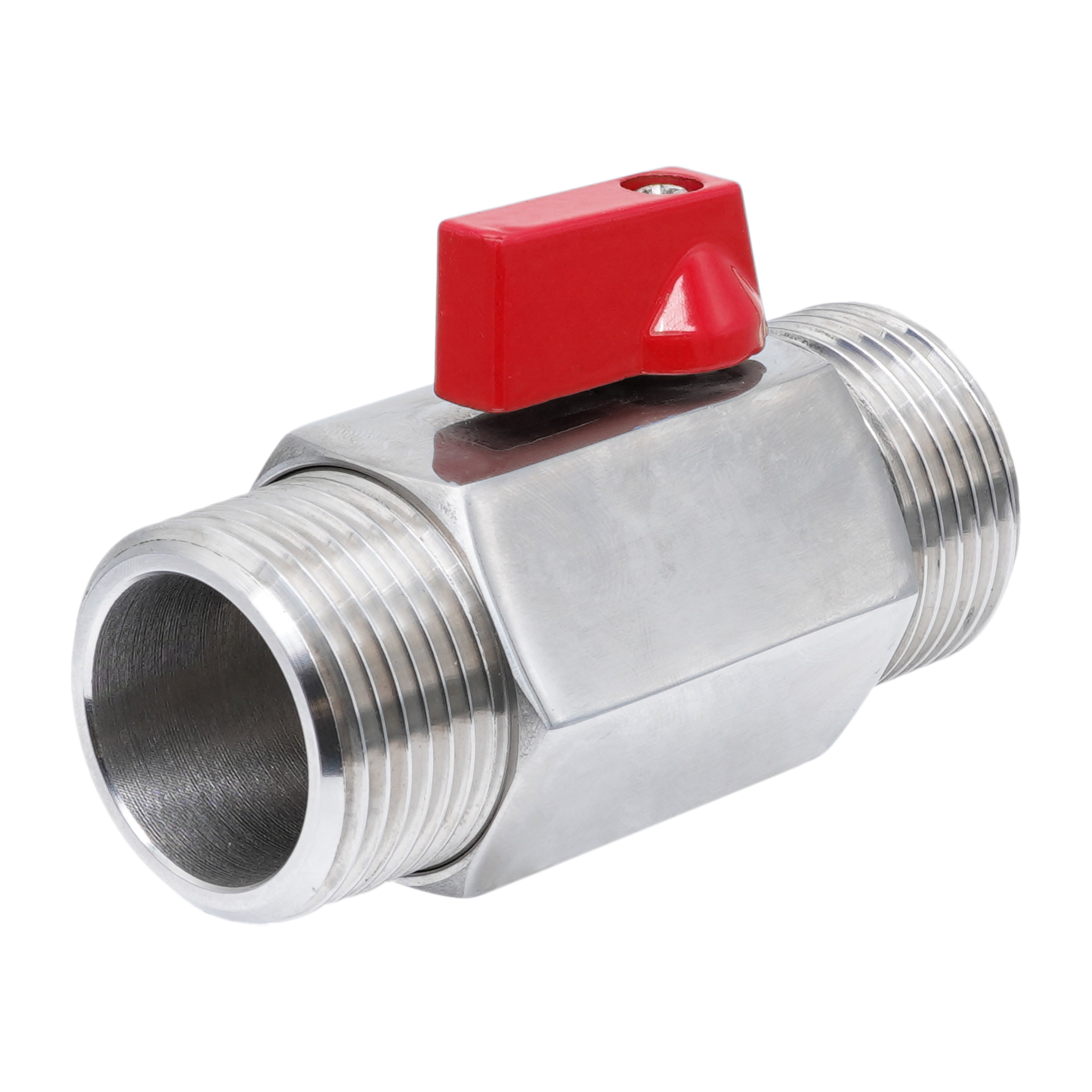

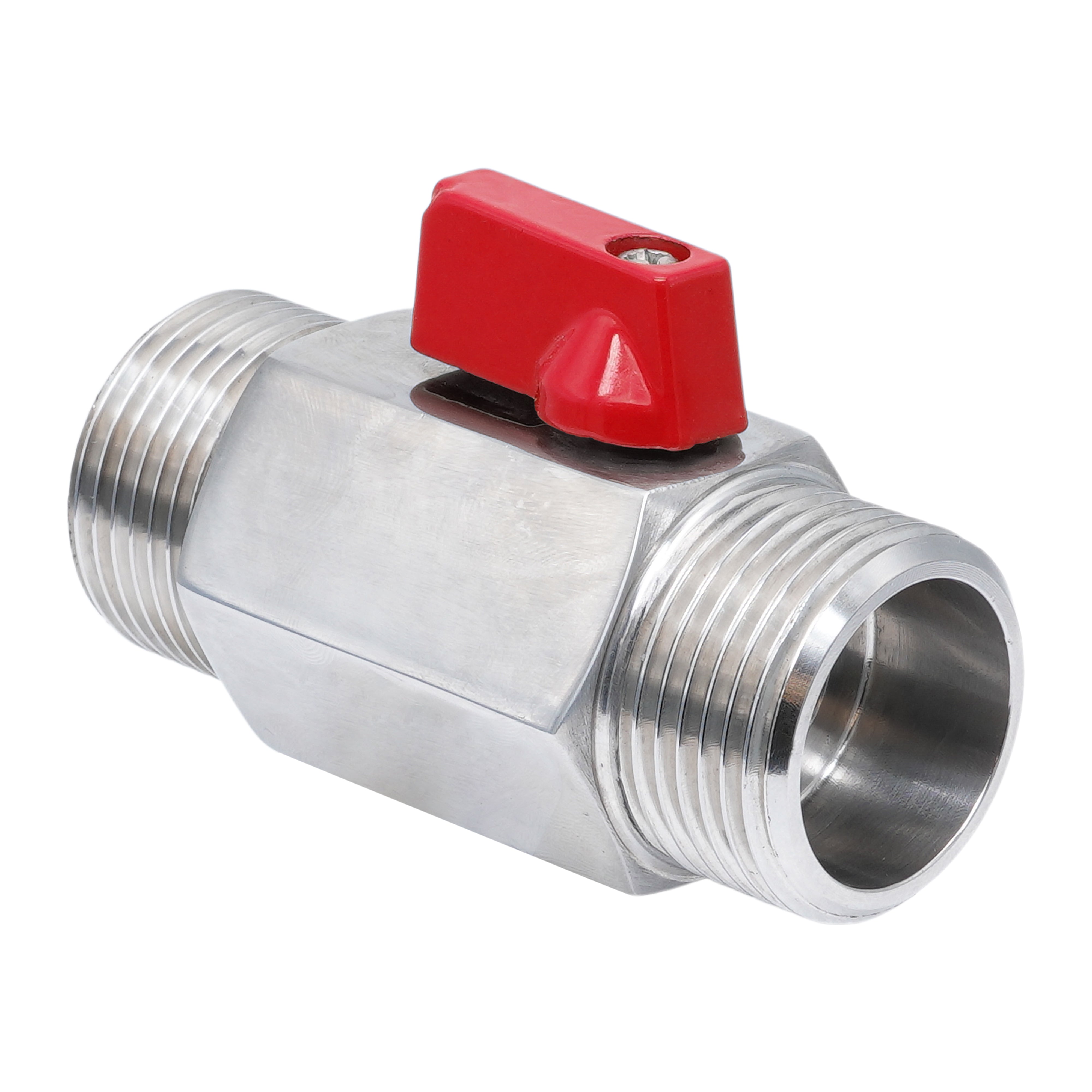

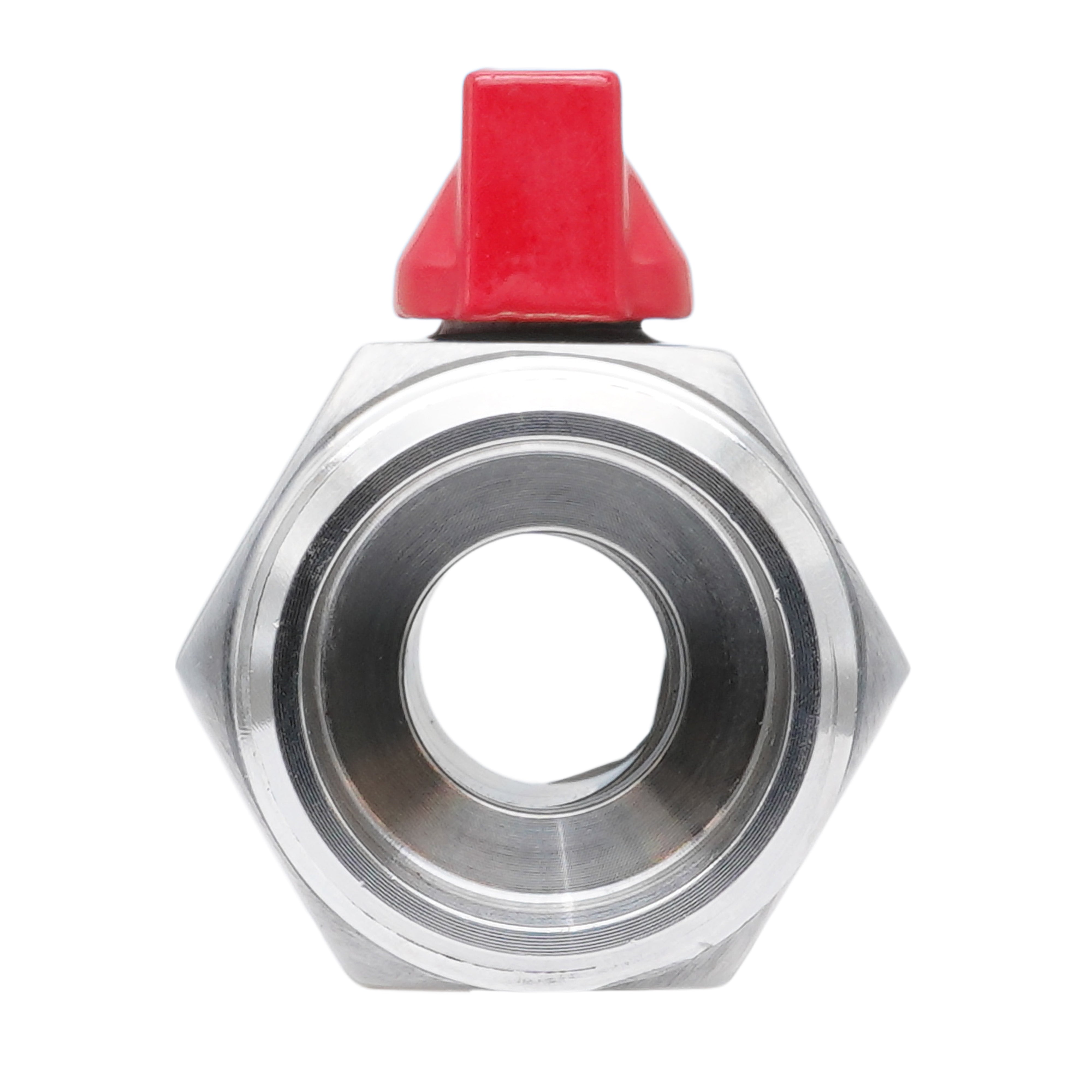

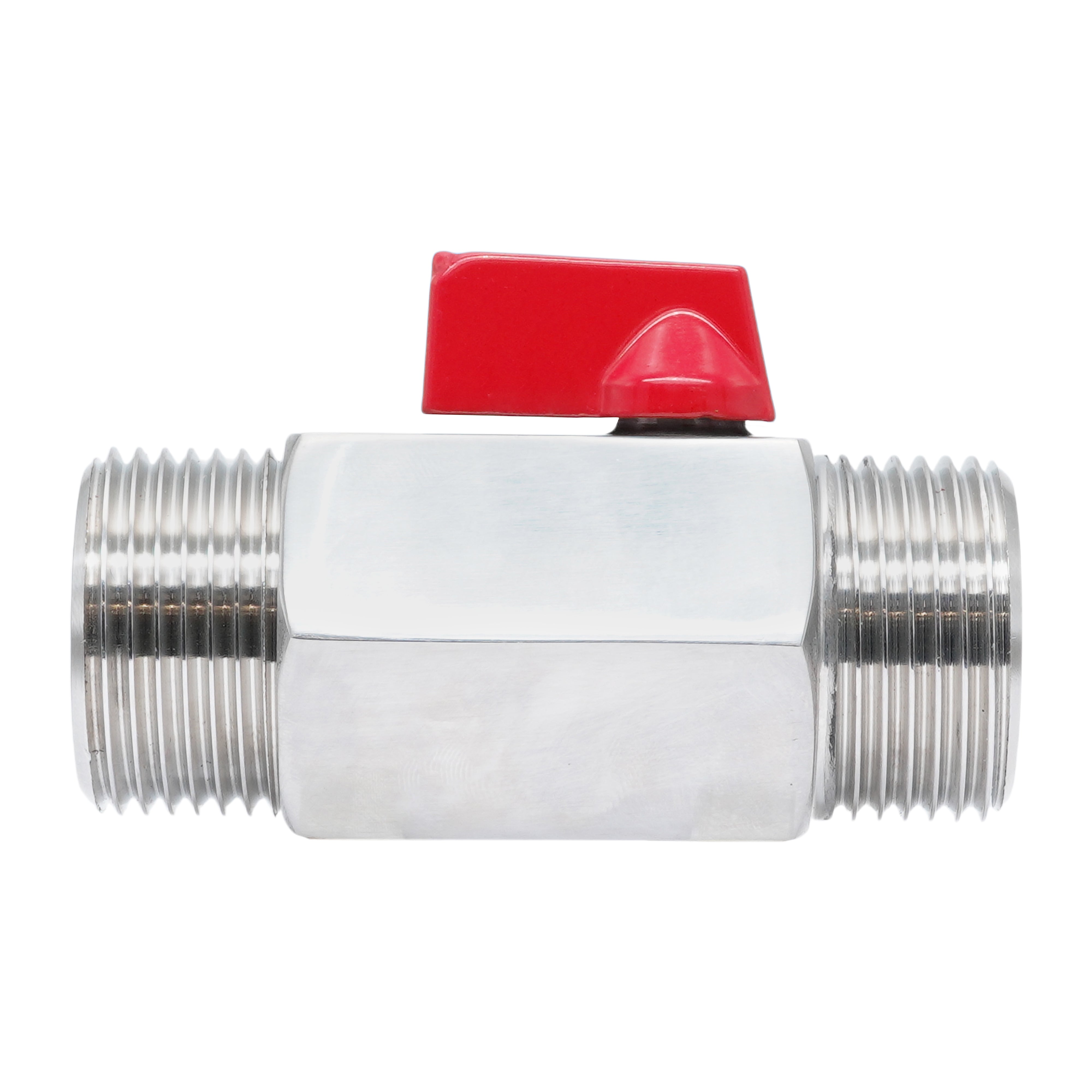

G 3/8'' M/M 2-Way Stainless Steel Mini Ball Valve 69 bar PTFE - TamesonPRO 1113-038-M
This 2-way stainless steel mini ball valve has G 3/8 BSPP male threaded ports. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting PTFE seats to handle a wide range of media.
The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C up to 160°C (-20°F up to 320°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 7 mm bore, with Kv value of 5.1 m3/h (at a differential pressure of 1 bar) (Cv = 5.9 gpm).
This configuration is manual only, for electric or pneumatic control you can use a version with an ISO-Top 5211.
- Regular price
- $19.38 USD
We sell only to registered businesses
Description
This 2-way stainless steel mini ball valve has G 3/8 BSPP male threaded ports. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting PTFE seats to handle a wide range of media.
The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C up to 160°C (-20°F up to 320°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 7 mm bore, with Kv value of 5.1 m3/h (at a differential pressure of 1 bar) (Cv = 5.9 gpm).
This configuration is manual only, for electric or pneumatic control you can use a version with an ISO-Top 5211.
Pros:
- Suitable for aggressive media due to the 316 stainless steel (1.4408/CF8M) housing and ball
- Wide operating temperature range from -29°C up to 160°C (-20°F to 320°F)
- PTFE seats for smooth operation and tight shut-off
- Weight and space saving due to compact design
Cons:
- Its small handle and compact body make it slightly harder to grip and operate
Dimensions
