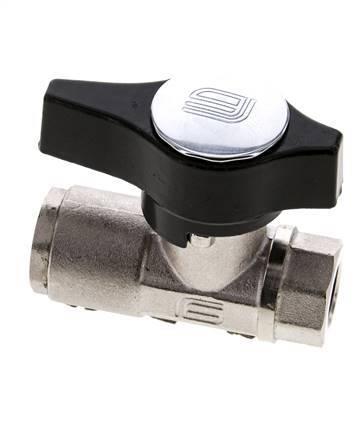

G 3/8 inch 2-Way Hydraulic Brass Ball Valve

G 3/8 inch 2-Way Hydraulic Brass Ball Valve
G 3/8 inch 2-Way Hydraulic Brass Ball Valve
Image may vary slightly
See specifications for accurate information.
Reference: BL2BN-MHY-038
Brand: Tameson

2-Way hydraulic ball valve with female G 3/8 inch ports and a handle for on/off flow control, designed specially for high pressure cleaners. 8 mm nominal diameter. The valve is suitable for water & hydraulic oil (max 210 bar / 3046 psi) and compressed air (max 100 bar / 1450 psi). Temperature range from -10 to 80 °C (14 to 176 °F). Nickel-plated brass housing, chromium-plated brass ball and PTFE/FKM/POM seals.

View all
Regular price
$81.95
excl VAT

In stock +2 days On request On request
For orders exceeding 0, expect an increased lead time of 2 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

This 2-way hydraulic ball valve from Tameson with a nominal diameter of 8 mm is used for on/off control. This valve was specially designed for high pressure cleaners.

The valve has female G 3/8 inch ports. This is BSPP (British Standard Pipe Parallel). With our wide range of 3/8 inch fittings you can connect it to any piping system.

The housing of the valve is made of nickel-plated brass, the ball is made of chromium-plated brass and the seals are made of PTFE/FKM/POM. The valve is suitable for water and hydraulic oil up to a maximum pressure of 210 bar or 3046 psi and compressed air (up to 100 bar or 1450 psi). The valve can be used within a temperature range from -10 to 80 °C (14 to 176 °F).

Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.

Pros:

  • Simple and durable brass design
  • Suitable for media other than hydraulic oil, such as water or air
  • High operating pressure up to 210 bar or 3046 psi

Cons:

  • Suitable only for manual actuation

BL2BN-MHY series

Our 2-way hydraulic brass ball valve BL2BN-MHY series ranges from G 3/8 to G 1 inch. The series is specially designed for high pressure cleaners. The housing material is nickel-plated brass, the ball material is hard chromium plated brass and the seals are PTFE/FKM/POM. The operating pressure is up to 210 bar (3046 psi) for water and hydraulic oil and 100 bar or 1450 psi for compressed air. The operating temperature range is from -10 to 80 °C (14 to 176 °F). The whole series is handle operated with an orifice range from 8 to 20 mm. The ball valves in the BL2BN-MHY series of Tameson are characterized by long life.
