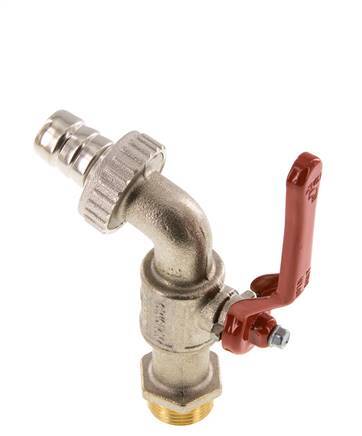

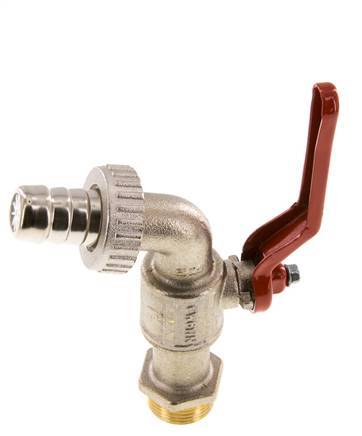

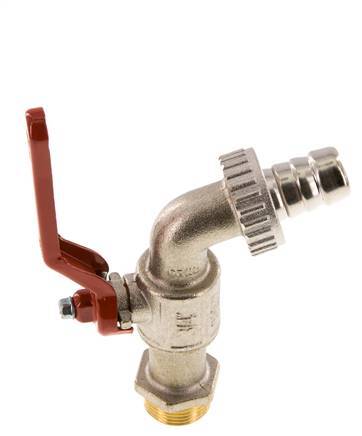

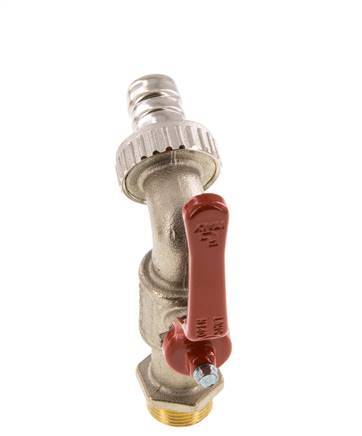

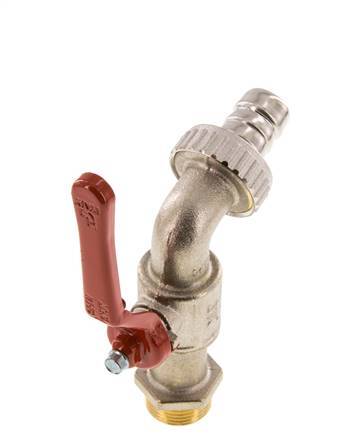

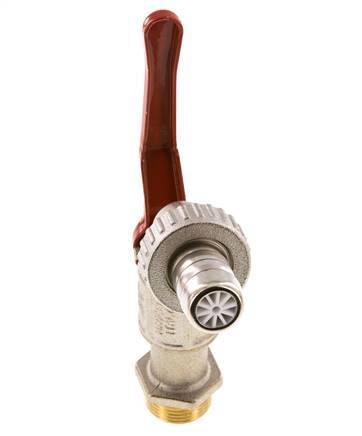

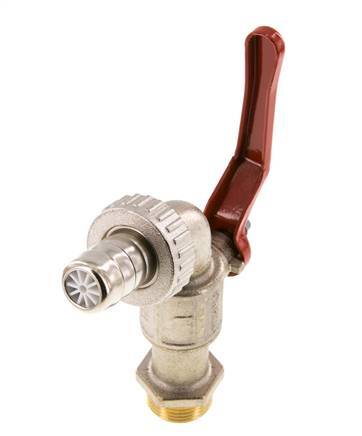

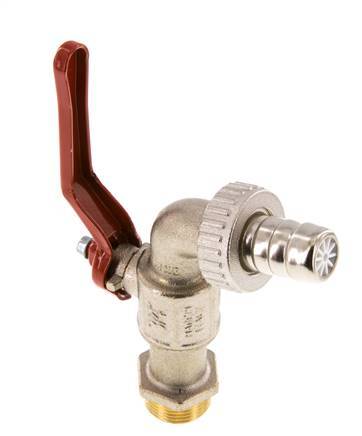

G 3/4 inch Brass 2-Way Faucet Ball Valve
Faucet ball valve with a male G 3/4 inch inlet port and a 20 mm hose barb as outlet port. The valve bore is 12 mm and the maximum pressure is 15 bar or 218 psi. Suitable for water, neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air. Also suitable for vacuum (max. -0.9 bar or -13 psi). Suitable for temperatures from -20 to 80 °C (-4 to 176 °F). Nickel-plated brass housing, hard chrome plated brass ball and PTFE/NBR sealings.
- Regular price
- $26.65
Description
This 2-way brass ball valve with a nominal diameter of 12 mm is designed for draining and discharging.
The valve has a male G 3/4 inch inlet port and a 20 mm hose barb outlet port. The hose barb is removable.
The housing of the valve is made of nickel-plated brass, the ball is made of hard chrome plated brass and the sealings are made of PTFE/NBR. This valve is suitable for a wide variety media, such as water, neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air up to a maximum operating pressure of 15 bar or 218 psi. Also suitable for vacuum (max. -0.9 bar or -13 psi). The valve is suitable for temperatures from -20 to 80 °C (-4 to 176 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If it is perpendicular to the pipe, the valve is closed.
Pros:
- Unobstructed flow of the media thanks to the full bore design
- Ideally suited as a draining or discharging valve
Cons:
- Not suitable for aggressive media
BL2BN-MFA series
View our 2-way faucet brass ball valve BL2BN-MFA series designed for draining and discharging. The inlet port ranges from 3/8 to 1 inch. The outlet port has a removable hose barb, sizes range from 14.5 to 26 mm. The housing material is nickel-plated brass, the ball material is hard chrome plated brass and the sealings are PTFE/NBR. The valves are suitable for a wide variety media, such as water, neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air up to a maximum operating pressure of 15 bar or 218 psi. The series is also suitable for vacuum applications (max. -0.9 bar or -13 psi). The valves can be used within a temperature range from -20 to 80 °C (-4 to 176 °F). The whole series is handle operated and provides reliability and a long service life.
