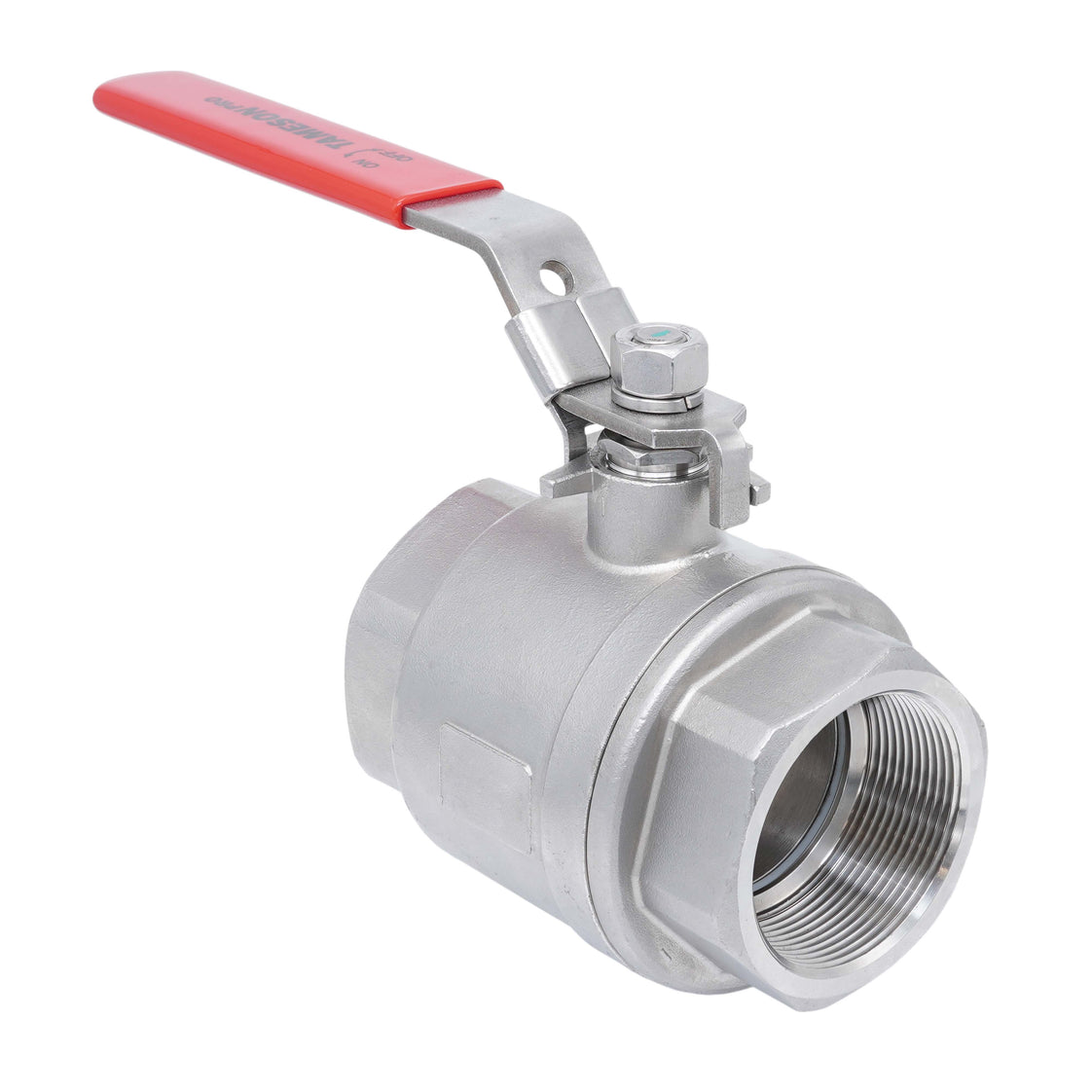

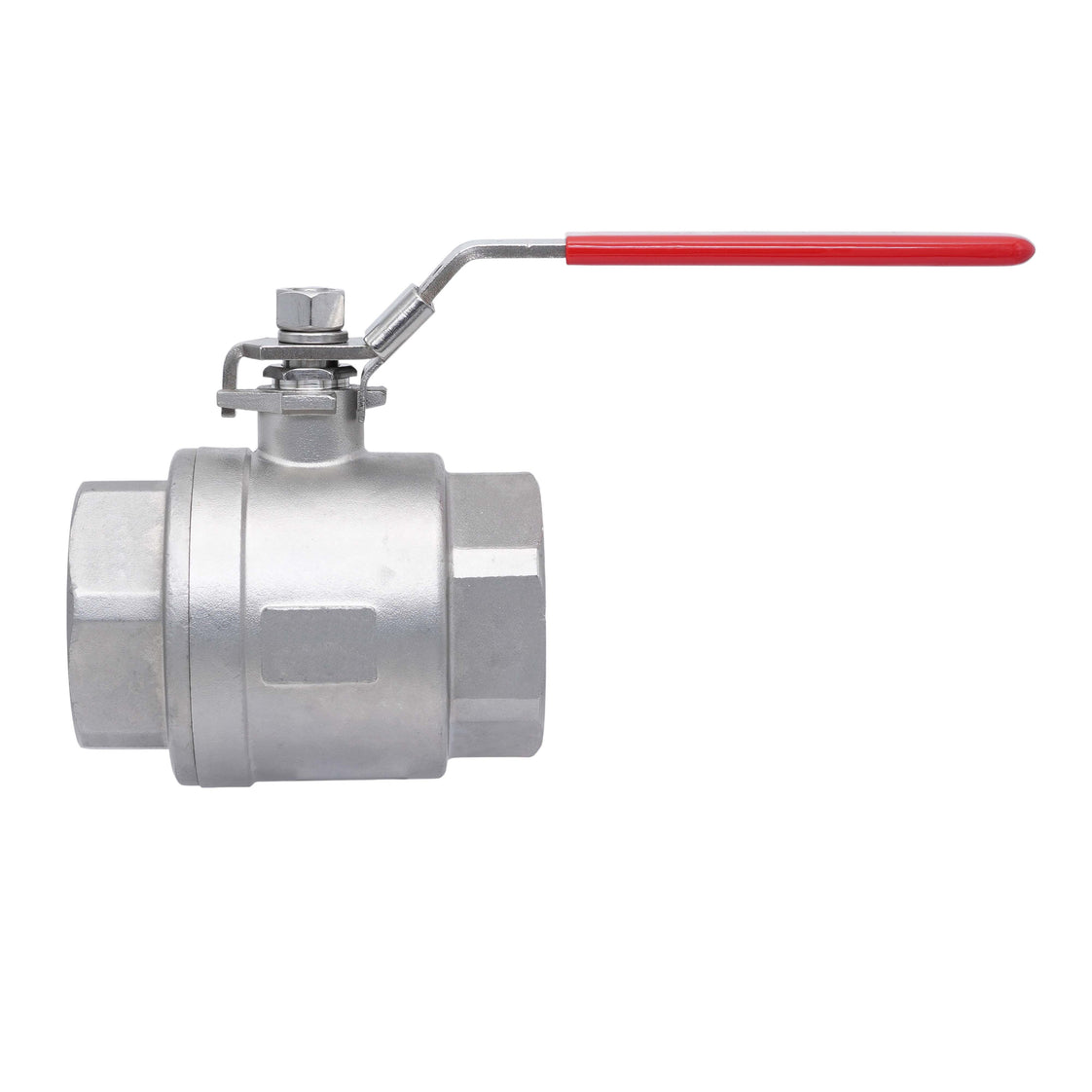

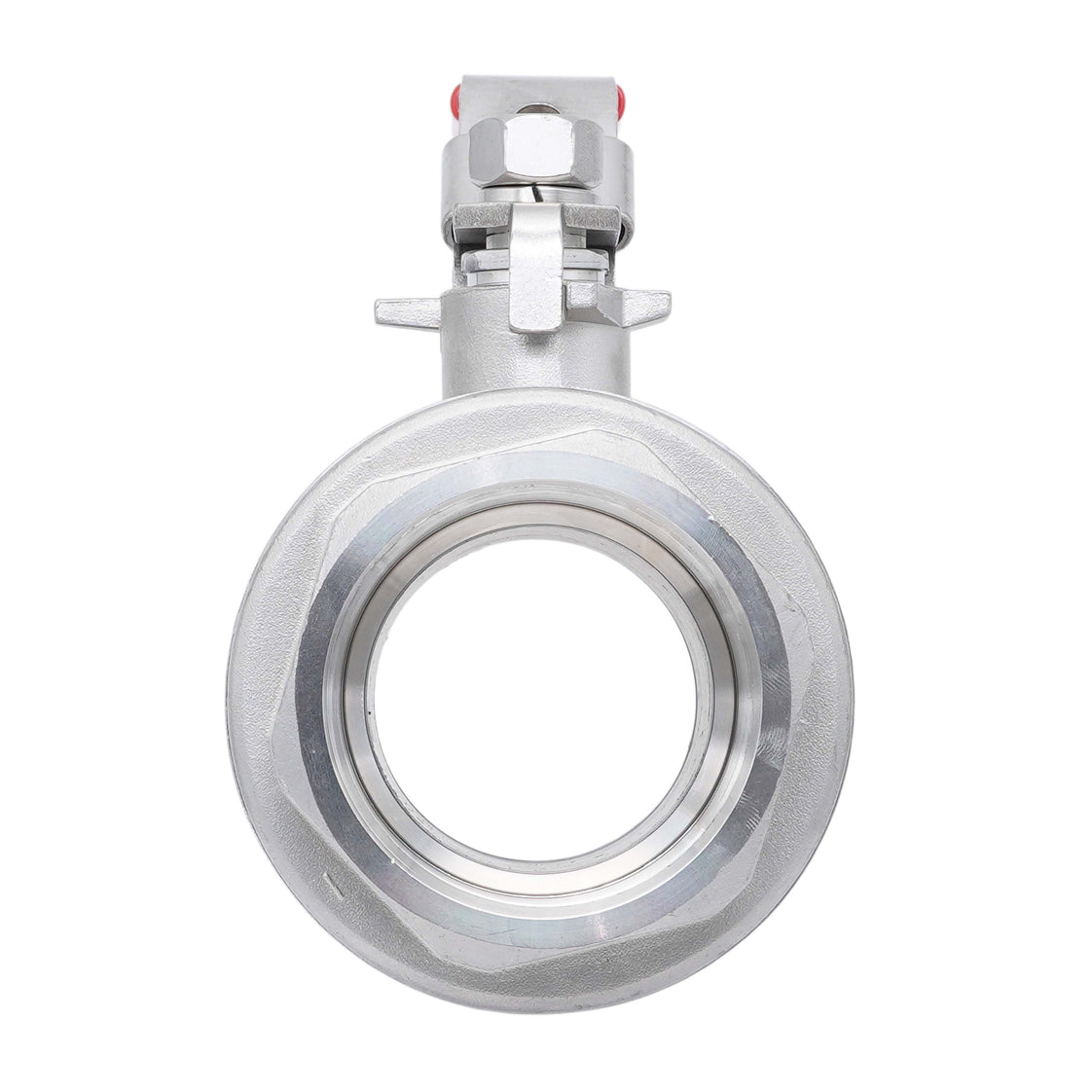

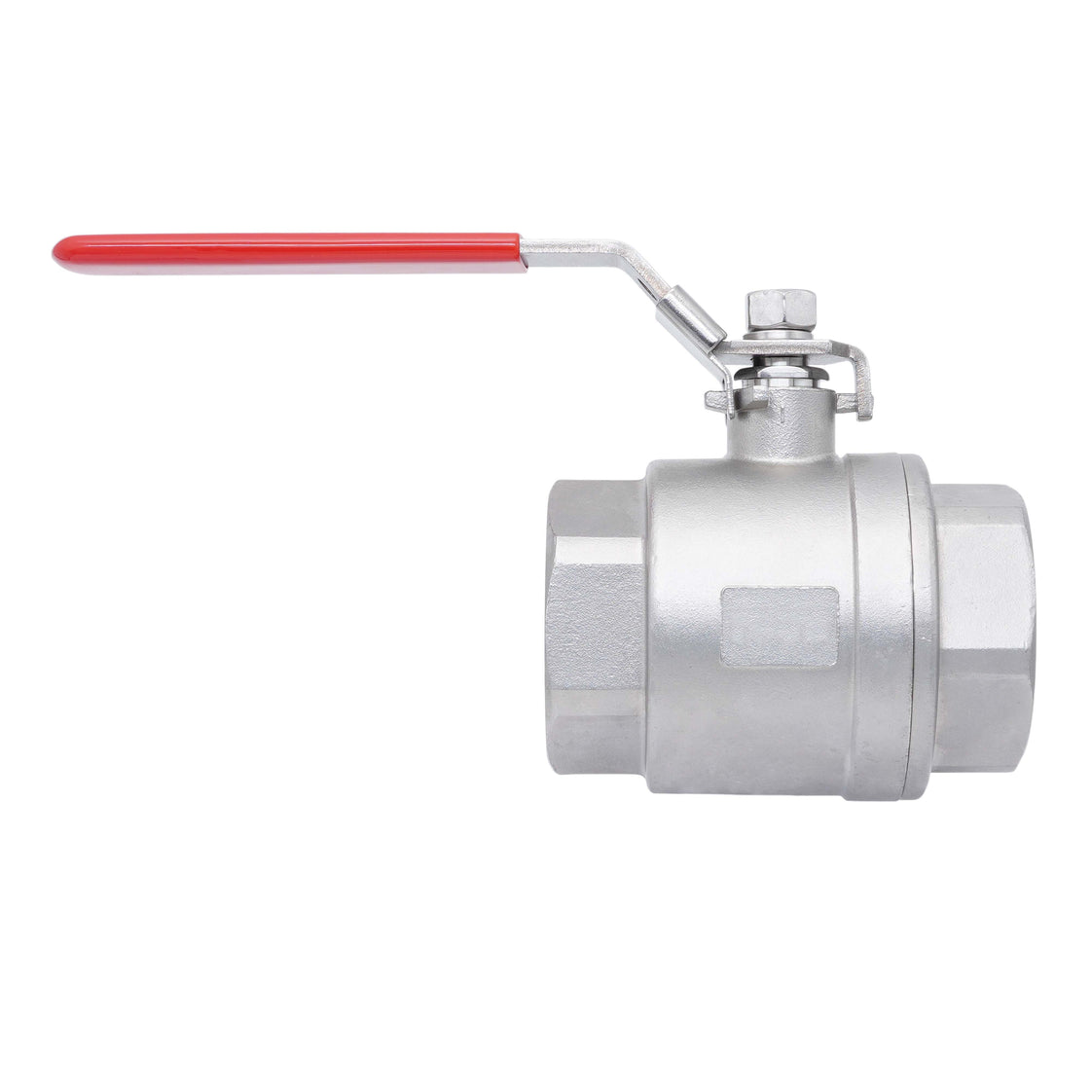

Rp 3/4'' F/F 2-Piece 2-Way Stainless Steel Ball Valve 69 bar RTFE - TamesonPRO 1111-034

This 2-way stainless steel ball valve has Rp 3/4 BSPT female threaded ports. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting RTFE seats to handle a wide range of media.

The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C to 210°C (-20°F to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 20 mm bore, with Kv value of 48 m³/h (at a differential pressure of 1 bar) (Cv = 55.5 gpm). The valve has a full bore design, offering unobstructed flow to minimise pressure drop.

It is operated manually using a 304 stainless steel 1.4301 handle. For electric or pneumatic actuation, please select the model with an ISO 5211 mounting pad.

Pros:

• Suitable for aggressive media due to the 316 stainless steel (1.4408/CF8M) housing and ball
• Wide operating temperature range from -29°C to 210°C (-20°F to 410°F)
• Full-bore design for minimal pressure loss and maximum flow
• RTFE seats for smooth operation and tight shut-off
• Lockable handle prevents unauthorized tampering or accidental operation

Cons:

• Suitable for manual actuation only - no ISO 5211 mounting pad

Dimensions

d=20mm, L=65.6mm, H=63mm, W=123mm
