G 1'' NC Pneumatic 2-Way Angle Seat Valve Brass - 2000 - 344657

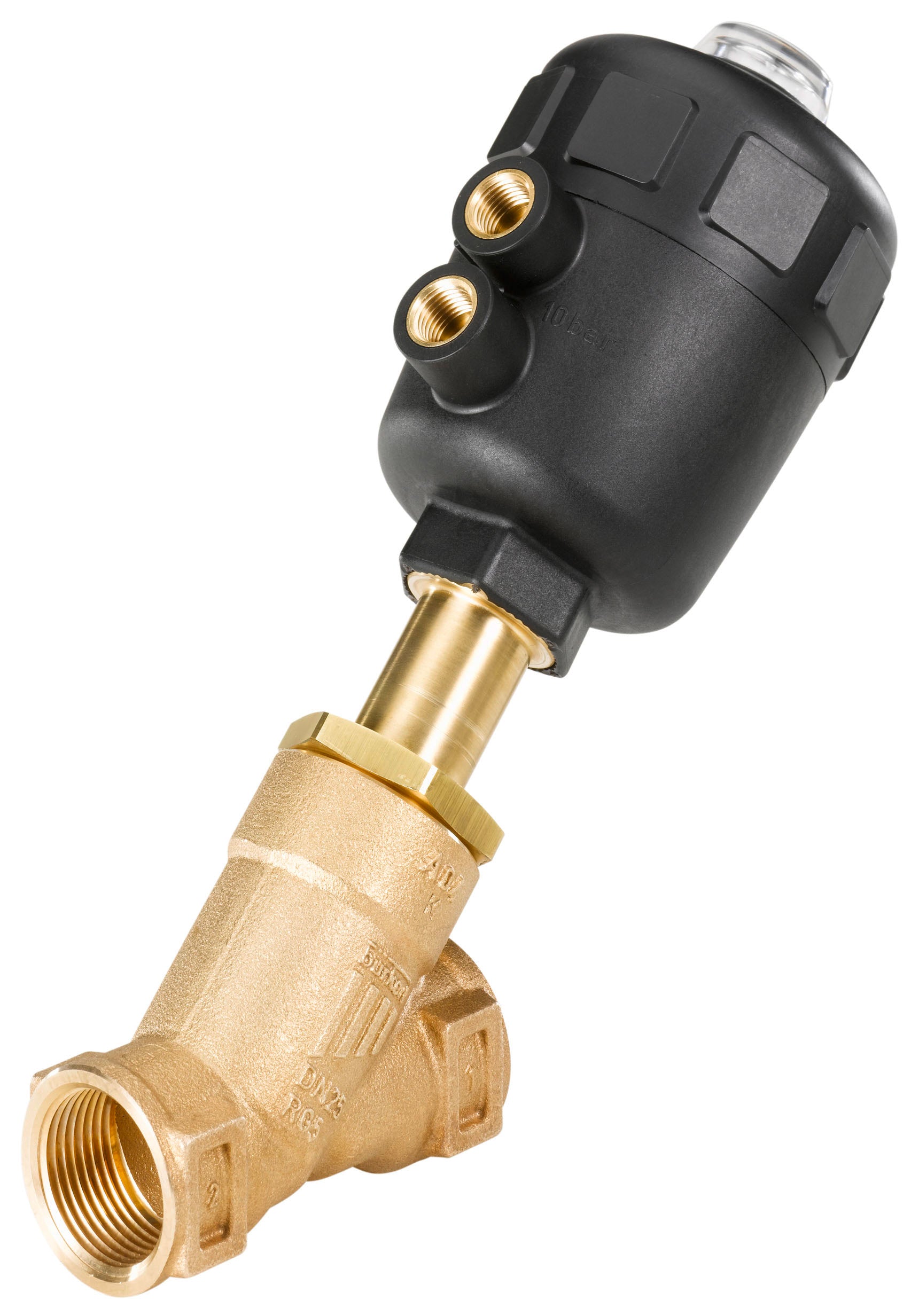

Bürkert 2/2-way pneumatic angle seat valve (type 2000) with G 1 inch female threaded ports. Designed for shut-off applications, normally closed (NC). For media temperatures from -10 to 185°C (14 to 365°F) at a pressure of 0 to 11 bar (0 to 154 psi). Housing of brass with PTFE sealing and a 25 mm orifice. The Kv-value is 18 m3/h (Cv-value of 20.8 gpm). The valve is pneumatically actuated with an IP67 PPS piston actuator.
- Regular price
- $349.26 USD
Description
Bürkert 2/2-way pneumatic angle seat valve (type 2000) with G 1 inch female threaded ports. The valve has a brass housing with PTFE sealing and an orifice size of 25 mm. The control function of the valve is normally closed (NC), which means the valve opens when air is applied. Suitable for a media temperatures from -10 to 185°C (14 to 365°F) at a pressure of 0 to 11 bar (0 to 154 psi). The valve has a Kv-value of 18 m3/h (Cv-value of 20.8 gpm). The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The PTFE sealing is resistant to almost all chemicals. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium.
Pros:
- Y-shape design allow for higher flow capacity and Kv value compared to vertical globe valves
- Easily mount a compact Burkert 8697 position feedback and control unit on the actuator (not included)
- Versions that close against the flow direction are suited for liquids, steam and gasses
Cons:
- Type 2000 doesn't have a control cone, so it is not as suited to regulate flow rate as Burkert type 2702 or 2712
Series:
The Bürkert type 2000 2/2-way angle seat valve is a pneumatically actuated on/off valve. The CLASSIC pneumatically operated piston actuator is available in PA, or PPS for higher ambient temperatures. The valve body has been optimized for excellent flow properties and is equipped with a self-adjusting packing gland for added tightness and long-term reliability. These valves are suitable for high viscosity media of up to 600 mm2/s. This valve can be controlled through the use of a pilot valve or through central automation with a valve island. The valve can be fitted with accessories like electrical position feedback, manual override or stroke limitation.
