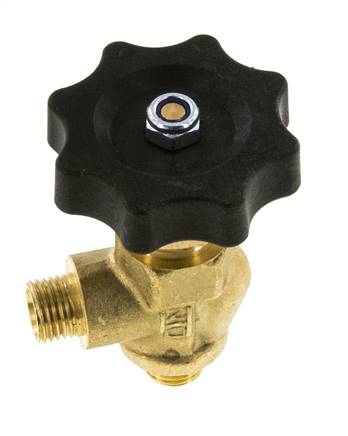

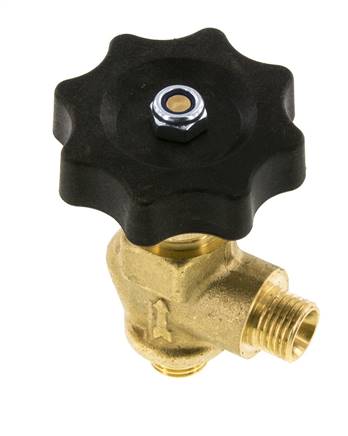

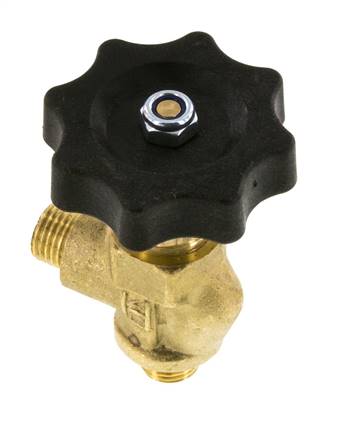

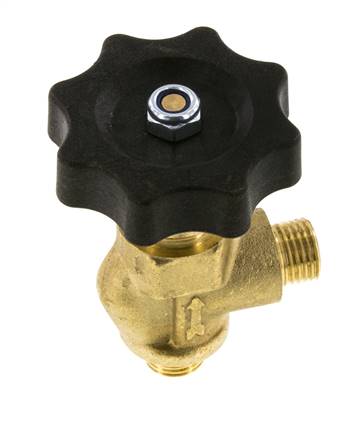

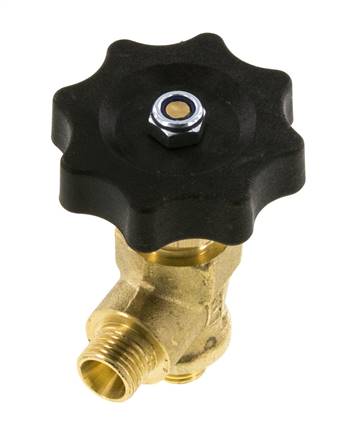

G 1/4'' Brass Right Angle Ball Valve 40 bar with Handwheel
- Regular price
- $19.51 USD
We sell only to registered businesses
Description
This G 1/4" BSP male brass ball valve controls on/off flow with a single quarter-turn of the handwheel. The right-angle body redirects flow by 90° within a single fitting, eliminating the need for a separate elbow and reducing the number of potential leak points in the system. The brass ball seals against a brass seat. This metal-to-metal contact creates a reliable, tight shutoff across the full operating range. The NBR stem seal is compatible with water, compressed air, oils, fuels, alcohols, and lubricants. Avoid use with strong acids, ammonia, seawater, or other media aggressive to brass or NBR. Rated to 40 bar at 20 °C, temperature range -30 to 110 °C (-22 to 230 °F). The pressure rating decreases at elevated temperatures.
Pros:
- Quarter-turn handwheel for fast open/close.
- Metal-to-metal brass ball seal - tight shutoff without soft seal degradation at the sealing surface.
- Compatible with water, compressed air, oils, fuels, alcohols, and lubricants.
- Right-angle body replaces a separate elbow fitting - saves space and reduces connection points.
Cons:
- Brass body not suitable for strong acids, ammonia, or seawater.
- NBR stem seal not compatible with aggressive chemicals - always verify media compatibility before use.
