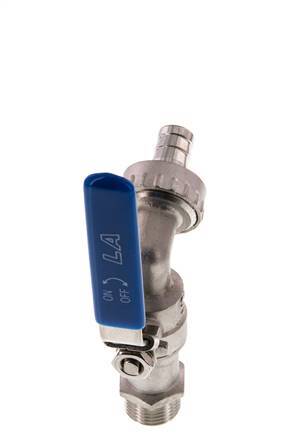

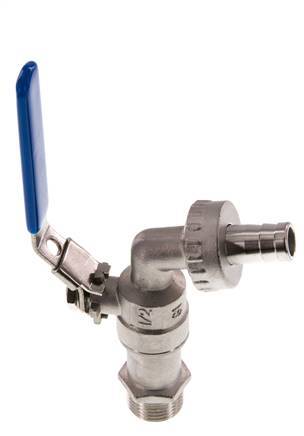

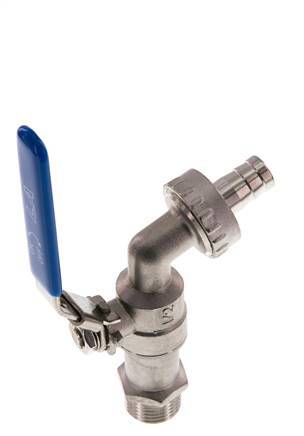

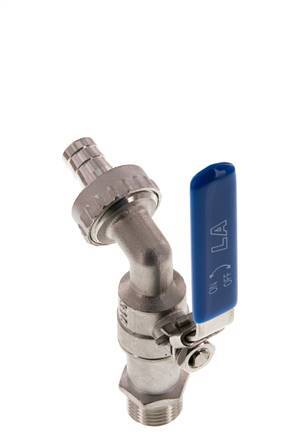

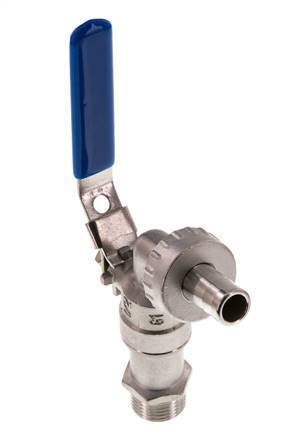

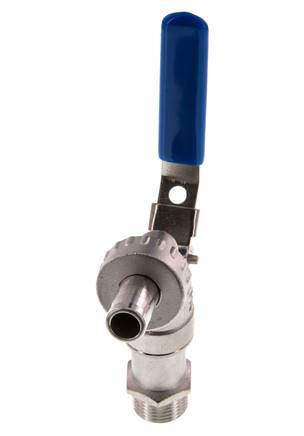

G 1/2 inch Stainless Steel 2-Way Faucet Ball Valve
Faucet ball valve with a male G 1/2 inch inlet port and a 13 mm hose barb as outlet port. The valve bore is 9 mm and the maximum pressure is 16 bar or 232 psi. Suitable for water, oil, fuels, compressed air and solvents. Suitable for temperatures from -10 to 150 °C (14 to 302 °F). Stainless steel housing and ball and PTFE/NBR sealings.
- Regular price
- $29.45
Description
This 2-way stainless steel ball valve with a nominal diameter of 9 mm is designed for draining and discharging.
The valve has a male G 1/2 inch inlet port and a 13 mm hose barb outlet port. The hose barb is removable.
The housing and the ball material is stainless steel and the sealings are made of PTFE/NBR. Suitable for water, steam, oil, compressed air, fuels and solvents up to a maximum operating pressure of 16 bar or 232 psi. The valve is suitable for temperatures from -10 to 150 °C (14 to 302 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If it is perpendicular to the pipe, the valve is closed.
Pros:
- Unobstructed flow of the media thanks to the full bore design
- The valve has a lockable hand lever
- Wide temperature range thanks to high quality materials
- Ideally suited as a draining or discharging valve
- Ideal as filling or draining valve for heating installations
- Including a closing cap to prevent accidental leaks
Cons:
- Not suitable for aggressive media
BL2SH-MFA series
View our 2-way faucet brass ball valve BL2SH-MFA series designed for draining and discharging. The inlet port ranges from 1/2 to 1 inch. The outlet port has a removable hose barb, sizes range from 13 to 27.5 mm. The housing and the ball material is stainless steel and the sealings are PTFE. The valves are suitable for a wide variety media, such as water, steam, oil, compressed air, fuels and solvents up to a maximum operating pressure of 16 bar or 232 psi. The series is also suitable for vacuum applications (max. -0.9 bar or -13 psi). The valves can be used within a temperature range from -10 to 150 °C (14 to 302 °F). The whole series is handle operated and provides reliability and a long service life.
