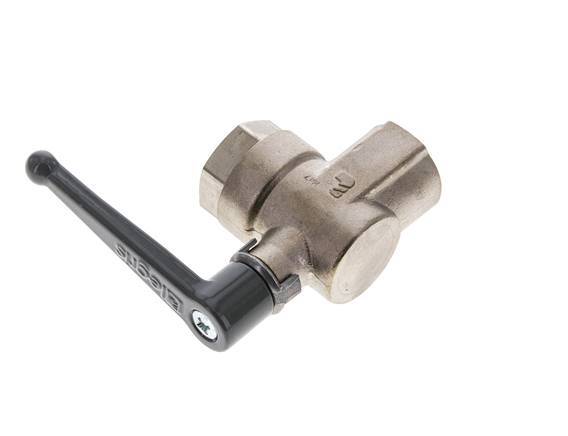

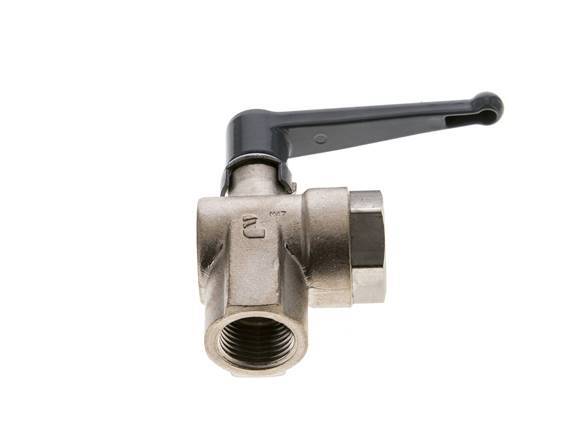

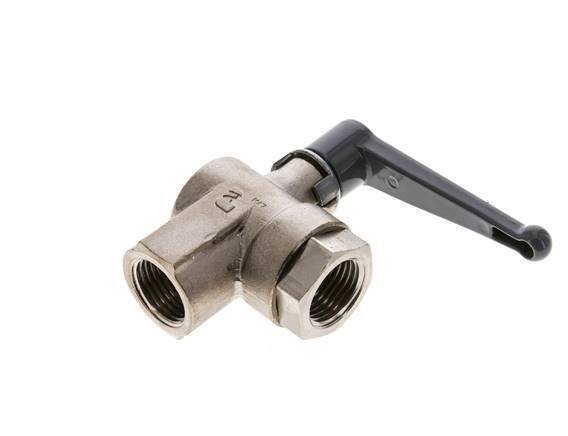

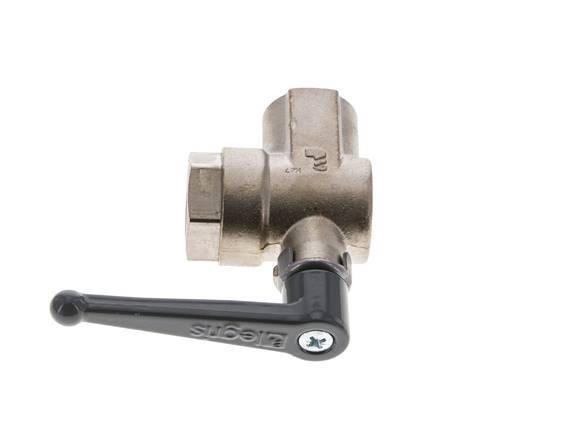

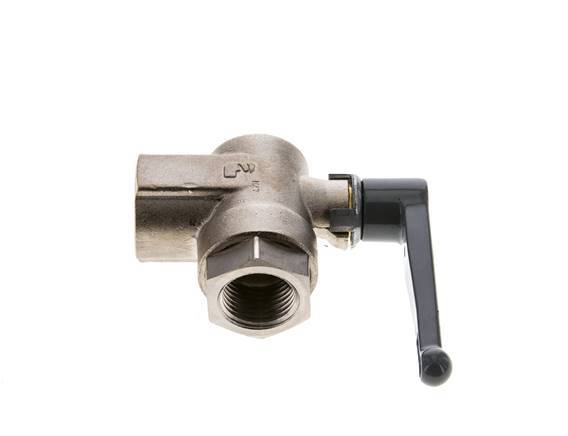

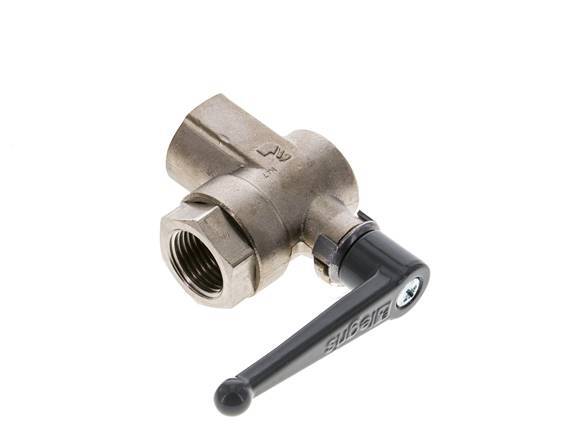

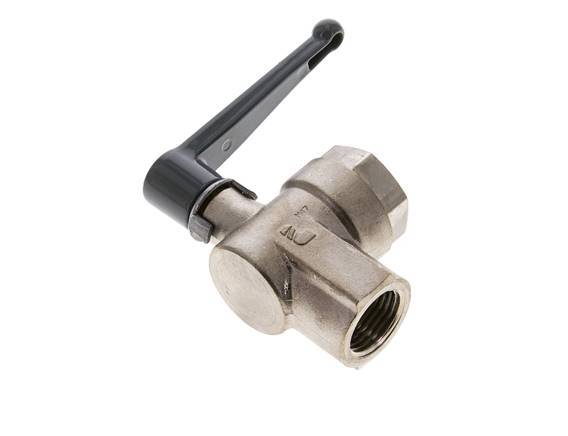

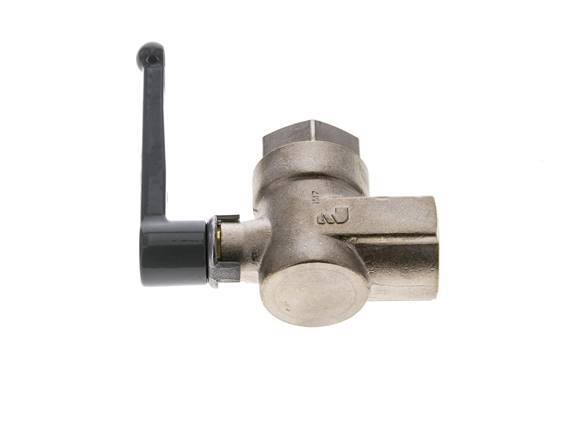

G 1/2 Inch 2-Way Right Angle Brass Ball Valve
Right angle brass ball valve. It has G 1/2 inch threaded ports. The valve bore nominal diameter is 12 mm and the maximum pressure is 20 bar or 290 psi. The valve is suitable for compressed air, water and oils. Temperature range is from -20 to 80 °C -4 to 176 °F. Nickel-plated brass housing, polished brass ball and PA/NBR sealings.
- Regular price
- $119.41 USD
We sell only to registered businesses
Description
This is a right angle brass ball valve. The right angle allows the connection of perpendicularly oriented pipes. The valve bore is 12 mm.
The valve has G 1/2 inch threaded ports. This is BSPP (British Standard Pipe Parallel). With our wide range of 1/2 inch fittings you can connect it to any piping system.
The housing of the valve is made of nickel-plated brass, the ball is made of polished brass and the sealings are made of PA/NBR. The valve is suitable for compressed air, water and oils up to a maximum pressure of 20 bar or 290 psi. The valve can be used within a temperature range from -20 to 80 °C -4 to 176 °F.
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Cons:
- Suitable only for manual actuation
- Not suitable for aggressive media
BL2BN-MAN series
Our 2-way right angle ball valve BL2BN-MAN series ranges from 1/8 to 1 inch. The valves are made of nickel-plated brass and the sealings are PA/NBR. The valves are suitable for water, oils and compressed air up to a maximum pressure of 20 bar or 290.1 psi and vacuum (max. -0.99 bar or -14 psi). The operating temperature range of the series is from -20 to 80 °C -4 to 176 °F. The valves are handle operated. The valves in the BL2BN-MAN-series of Tameson are characterized by a long service life.
