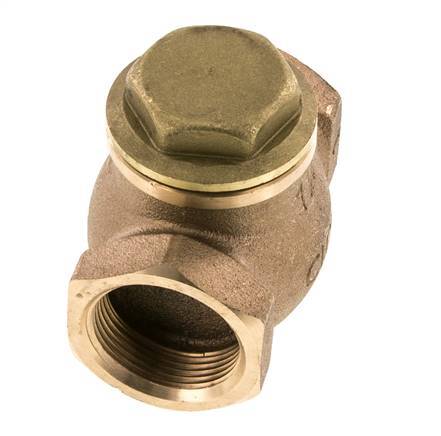

G 1-1/4'' Red Brass Lift Check Valve 20 bar (290 psi) Heavy Duty
Female threaded G 1 1/4 inch lift check valve made of red brass with a PTFE sealing. The maximum operating pressure is 20 bar (290 psi). The valve is suitable for water between -10 and +100°C (14 and 212°F), and saturated steam at 9 bar (130.5 psi) to a max temperature of +180°C (356°F). The valve uses pressure of the media and gravity to work so it must be installed horizontally. It is ideal for heavy-duty applications with frequent cycles due to its minimal moving parts that reduce wear. The Kv-value is 10 m3/h (166.7 l/min at 1 bar pressure drop). In imperial units: Cv = 11.56 GPM at 1 psi pressure drop.
- Regular price
- $116.34 USD
Description
Female threaded G 1 1/4 inch lift check valve made of red brass with a PTFE sealing. The maximum operating pressure is 20 bar (290 psi). The valve is suitable for water between -10 and +100°C (14 and 212°F), and saturated steam at 9 bar (130.5 psi) to a max temperature of +180°C (356°F). The valve uses pressure of the media and gravity to work so it must be installed horizontally. It is ideal for heavy-duty applications with frequent cycles due to its minimal moving parts that reduce wear. The Kv-value is 10 m3/h (166.7 l/min at 1 bar pressure drop). In imperial units: Cv = 11.56 GPM at 1 psi pressure drop.
Pros:
- Ideal for heavy-duty and frequent use
- Suitable for saturated steam up to 9 bar (130.5 psi) and +180°C (356°F)
Cons:
- Only for horizontal installation
