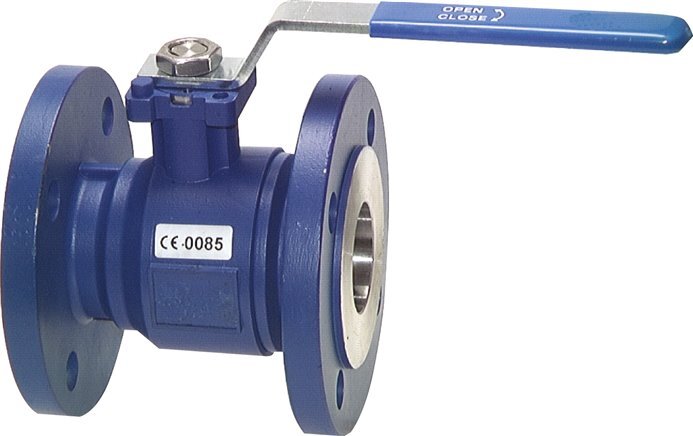

Flanged Ball Valve 2-Way DN25 PN40 Cast Steel DVGW EN 14141

Flanged Ball Valve 2-Way DN25 PN40 Cast Steel DVGW EN 14141
Flanged Ball Valve 2-Way DN25 PN40 Cast Steel DVGW EN 14141
Image may vary slightly
See specifications for accurate information.
Reference: V2UM2
Brand: Tameson

This 2-way DN 25 flanged ball valve is made of cast steel with Teflon (PTFE) sealings. Standardized length of 125 mm conforming to DIN 3202-F4 (EN 558-1 Row 14). The valve is suitable for water, oil, air and fuel up to a maximum pressure of 40 bar (580 psi) and vacuum (max. -0.9 bar or -13 psi). This valve is DVGW certified for gas (MOP 40 bar) in accordance with EN 14141. The valve can be equipped with an actuator using the ISO 5211 F05 flange, but it requires a separate adapter and mounting bracket, which are not provided. The valve operates within a temperature range from -20 to 180 °C (-4 to 356 °F).

View all
$676.43
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This 2-way DN 25 flanged ball valve is made of cast steel with Teflon (PTFE) sealings. Standardized length of 125 mm conforming to DIN 3202-F4 (EN 558-1 Row 14). The valve is suitable for water, oil, air and fuel up to a maximum pressure of 40 bar (580 psi) and vacuum (max. -0.9 bar or -13 psi). This valve is DVGW certified for gas (MOP 40 bar) in accordance with EN 14141. The valve can be equipped with an actuator using the ISO 5211 F05 flange, but it requires a separate adapter and mounting bracket, which are not provided. The valve operates within a temperature range from -20 to 180 °C (-4 to 356 °F). An actuator can be mounted using a mounting flange according to ISO 5211 when it is used in conjunction with a special bracket and shaft adapter.

Pros:

  • Standardized installation length of 125 mm according to DIN 3202-F4
  • Unobstructed flow path thanks to the full bore design
  • Suitable for vacuum
  • Easy installation and maintenance thanks to the standardized DN 25/PN 40 flange

Cons:

  • To disassemble the valve for inspection and cleaning it has to be completely removed from the pipe

Downloads

Flanged ball valve S-45CV
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
DN 25
Connection type
Flange
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Cast steel
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
Teflon (PTFE)
Max pressure difference at 20 °C (bar)
40
Operation
The way the valve works. For example via an electric actuator, a pinch wheel or a pneumatic actuator.
Handle
Recommended for
Water, Oil, Air, Fuel
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
180
Vacuum (bar)
Suitable for vacuum.
-0.9
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
Gas
Valve bore (mm)
25
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
72
Standard
Meet the requirements of an ISO or DIN Standard
DIN 3202-F4 (EN 558-1 Row 14 (Lenght)), EN 14141 (gas)
Ball valve feature
For vacuum
Housing construction
2-part
ISO 5211 Square head size (mm)
Size of the valve's square head according to ISO 5211.
14
ISO 5211 Flange type
Standard flange design to mount an actuator, the size is expressed in F-xx. Note that not every valve is suitable to directly mount an actuator, sometimes an adapter is required.
Flange F05
Model
Straight
Ball seal
Teflon (PTFE)
Material ball
Specifies the material of the ball within the valve, which can affect its durability and compatibility with certain fluids.
Stainless steel
Spindle seal material
FKM (FPM)
Article compression class
PN 40
Flange compression class
PN 40
Full bore
Yes
