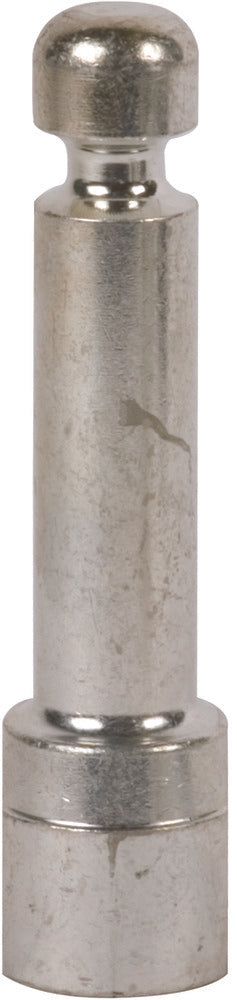

Fixed Earthing Point With D16mm Ring Groove And M16 Female Thread - 790260
This earth-side fixed point, with a diameter of 16mm, includes a ring groove and features internal threading. It is designed for use in compliance with EN/IEC 61230 (DIN VDE 0683-100) in the earthing system. The device can handle a maximum short-circuit current of 42kA and is straight built. The fixed point allows for an earth and ring groove connection of 16mm, and can accept a maximum wire cross-section of up to 150mm² for copper. It is recognized for its high mechanical strength due to its non-cutting form thread.
- Regular price
- $58.80 USD
We sell only to registered businesses
Description
This earth-side fixed point, with a diameter of 16mm, includes a ring groove and features internal threading. It is designed for use in compliance with EN/IEC 61230 (DIN VDE 0683-100) in the earthing system. The device can handle a maximum short-circuit current of 42kA and is straight built. The fixed point allows for an earth and ring groove connection of 16mm, and can accept a maximum wire cross-section of up to 150mm² for copper. It is recognized for its high mechanical strength due to its non-cutting form thread.
