Fixed Ball Point Straight M16x45mm Threaded Bolt and Nut 25mm - 755645

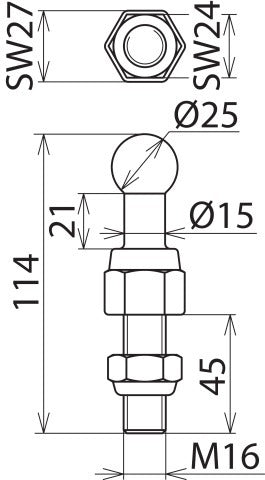

This is a straight fixed ball point with a threaded pin and nut, suitable for use as both the phase-side and earth-side connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100). It's applicable to the conductor and the earthing system, featuring high mechanical strength as the thread is not cut. This straight fixed ball point is also appropriate for fixing cable lugs or connecting busbars as per DIN 43673-1, with a maximum short circuit current of 42kA. Its construction is straight and consists of a threaded bolt, with an earthing/short-circuit point of 25mm, the maximum wire cross-section for copper is 150mm², and the diameter of the fixed point is 25mm.
- Regular price
- $41.77 USD
We sell only to registered businesses
Description
This is a straight fixed ball point with a threaded pin and nut, suitable for use as both the phase-side and earth-side connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100). It's applicable to the conductor and the earthing system, featuring high mechanical strength as the thread is not cut. This straight fixed ball point is also appropriate for fixing cable lugs or connecting busbars as per DIN 43673-1, with a maximum short circuit current of 42kA. Its construction is straight and consists of a threaded bolt, with an earthing/short-circuit point of 25mm, the maximum wire cross-section for copper is 150mm², and the diameter of the fixed point is 25mm.
