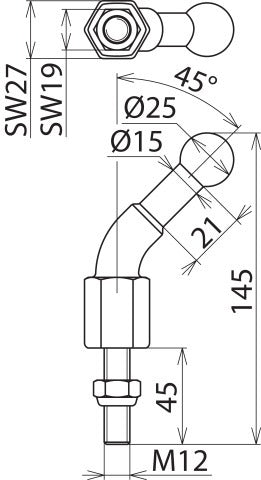

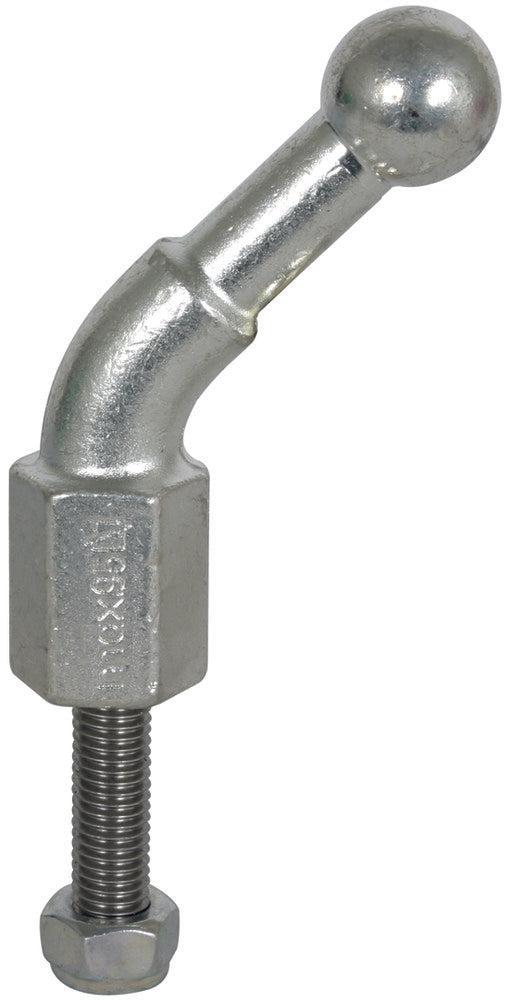

Fixed Ball Point D25mm Angled 45 Degrees With Threaded Bolt M12x4 - 756245
This is a fixed ball point with a 45° angle, equipped with a threaded pin and self-locking nut serving as both a line and earth connection point as per EN/IEC 61230 (DIN VDE 0683-100) standards. Ideal for the conductor and earth-termination systems, it boasts high mechanical strength due to the inherent female thread, which is not cut. With a maximum short-circuit current of 26.5kA, it is suitable for attaching cable lugs or connecting busbars as laid down by DIN 43673-1, possessing a maximum wire cross-section for copper of 95mm², and a 25mm connection point diameter.
- Regular price
- $71.31 USD
We sell only to registered businesses
Description
This is a fixed ball point with a 45° angle, equipped with a threaded pin and self-locking nut serving as both a line and earth connection point as per EN/IEC 61230 (DIN VDE 0683-100) standards. Ideal for the conductor and earth-termination systems, it boasts high mechanical strength due to the inherent female thread, which is not cut. With a maximum short-circuit current of 26.5kA, it is suitable for attaching cable lugs or connecting busbars as laid down by DIN 43673-1, possessing a maximum wire cross-section for copper of 95mm², and a 25mm connection point diameter.
