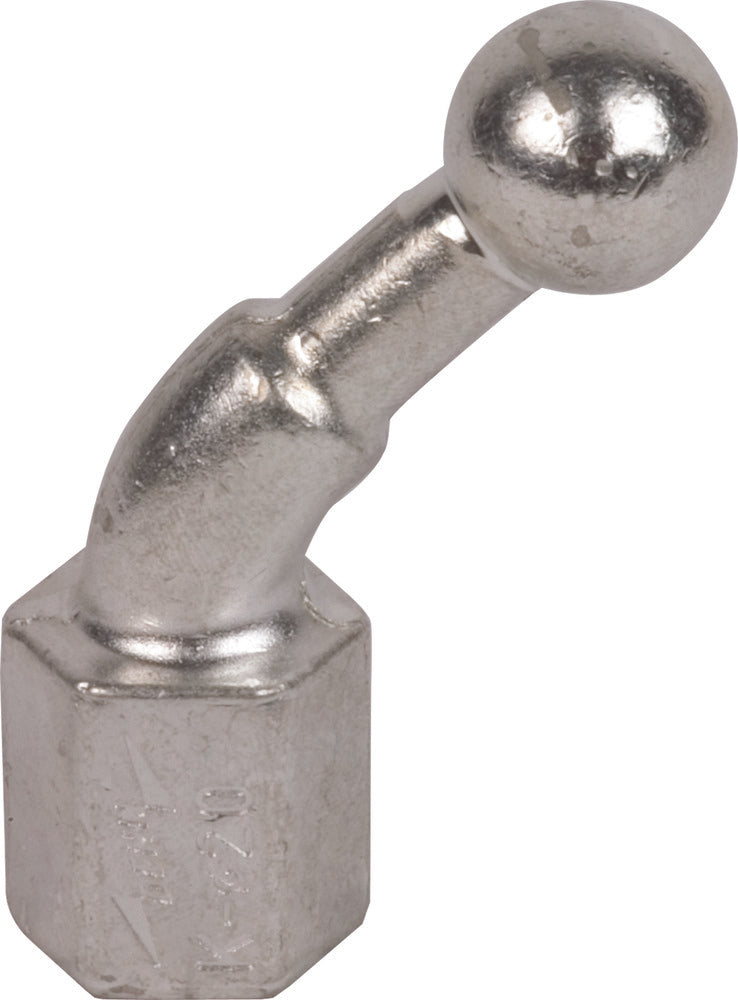

Fixed Ball Point D 20mm Angled 45 Degrees With M16 Female Thread - 706600

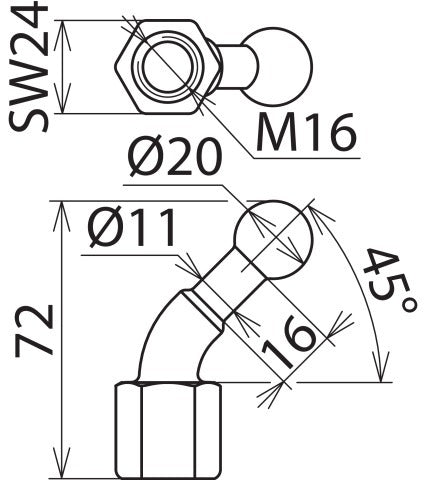

This is a fixed ball point with a 45-degree angle, equipped with a female thread that serves as a line and earth connection point, compliant with EN/IEC 61230 (DIN VDE 0683-100) regulations. Suitable for the conductor and earth-termination systems, it possesses high mechanical strength due to its female thread, ensuring it isn't cut. The ball point can be used to fix cable lugs or connect busbars in accordance with the DIN 43673-1 standard. It can accommodate a maximum short-circuit current of 19.5kA, with a secure point diameter of 20mm. It is designed to handle a maximum copper wire cross-section of 70mm².
- Regular price
- $38.37 USD
We sell only to registered businesses
Description
This is a fixed ball point with a 45-degree angle, equipped with a female thread that serves as a line and earth connection point, compliant with EN/IEC 61230 (DIN VDE 0683-100) regulations. Suitable for the conductor and earth-termination systems, it possesses high mechanical strength due to its female thread, ensuring it isn't cut. The ball point can be used to fix cable lugs or connect busbars in accordance with the DIN 43673-1 standard. It can accommodate a maximum short-circuit current of 19.5kA, with a secure point diameter of 20mm. It is designed to handle a maximum copper wire cross-section of 70mm².
