Fixed Ball Point 20mm With Threaded Pin And Nut M12x35mm - 754235

Fixed Ball Point 20mm With Threaded Pin And Nut M12x35mm - 754235
Fixed Ball Point 20mm With Threaded Pin And Nut M12x35mm - 754235
Image may vary slightly
See specifications for accurate information.
Reference: E3NVH
Brand: DEHN
Mfr. Part: 754235

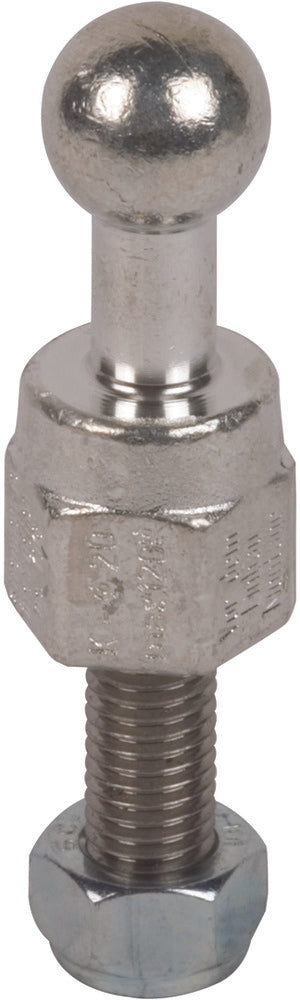

This is a straight fixed ball point featuring a threaded pin and nut, suitable for use as both a phase-side and earth-side connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. Showcasing high mechanical strength, the thread on this item is not cut, making it ideal for fixing cable lugs or connecting busbars in line with DIN 43673-1. It can endure a maximum short circuit current of 33.5kA, boasts a straight design form, and is fitted with a 20mm grounding and short-circuit connection point. The maximum cross section for copper is 120mm², and the point diameter is a reliable 20mm.

View all
Note: product cannot be returned
Regular price
$27.81
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 96 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Description
Specifications
Downloads

This is a straight fixed ball point featuring a threaded pin and nut, suitable for use as both a phase-side and earth-side connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. Showcasing high mechanical strength, the thread on this item is not cut, making it ideal for fixing cable lugs or connecting busbars in line with DIN 43673-1. It can endure a maximum short circuit current of 33.5kA, boasts a straight design form, and is fitted with a 20mm grounding and short-circuit connection point. The maximum cross section for copper is 120mm², and the point diameter is a reliable 20mm.
