Finder Bistable Relay - 20.23.9.024.4000

Finder Bistable Relay - 20.23.9.024.4000
Finder Bistable Relay - 20.23.9.024.4000

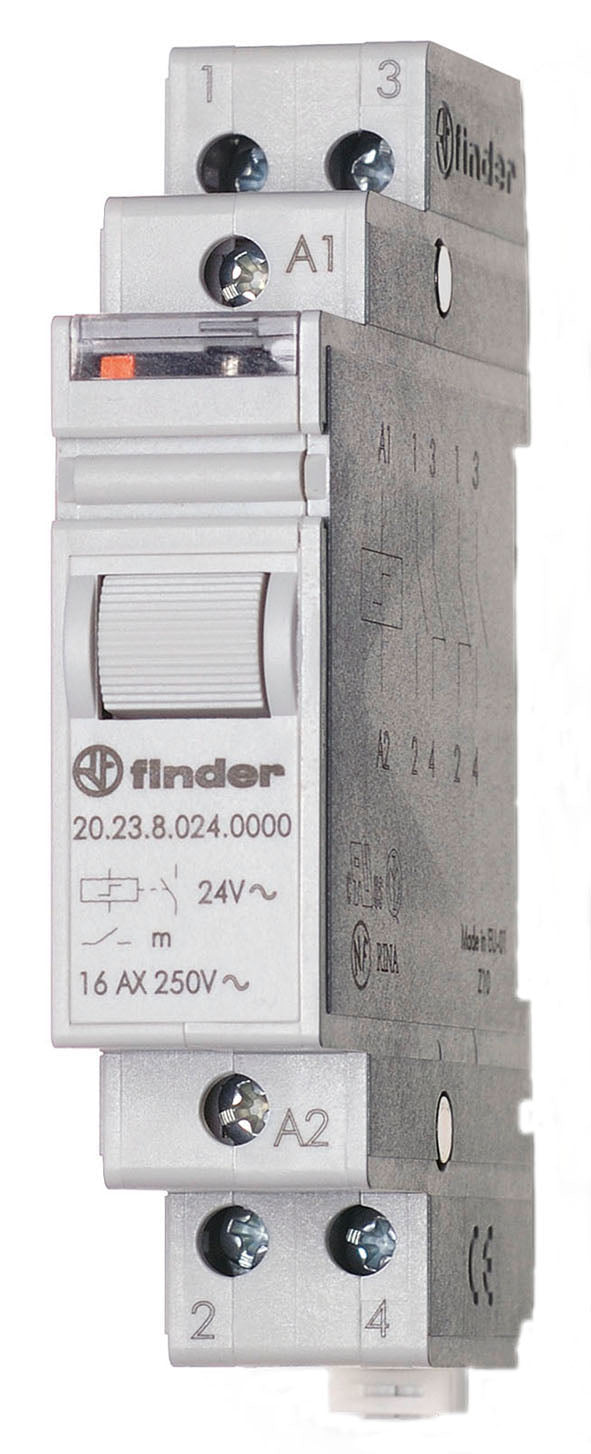

Image may vary slightly
See specifications for accurate information.
Reference: E34QR
Brand: Finder
Mfr. Part: 20.23.9.024.4000

The finder type 20.23 modular step relays, 16a, double phase switch 1 no + 1 nc, 35 mm rail (en 60715) mounting. Width: one module 17.4 mm. Test button and mechanical indicator. 7 sequences. Ac or dc coil. Identification card. Connection with illuminated pushbuttons via the finder type 026.00 adaptor. Cadmium-free contacts.

View all
$24.92
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 31 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The finder type 20.23 modular step relays, 16a, double phase switch 1 no + 1 nc, 35 mm rail (en 60715) mounting. Width: one module 17.4 mm. Test button and mechanical indicator. 7 sequences. Ac or dc coil. Identification card. Connection with illuminated pushbuttons via the finder type 026.00 adaptor. Cadmium-free contacts.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Function
Mechanical switch
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth (mm)
60.8
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Control voltage 1 (V)
21.6 V to 26.4 V
Type of control voltage 1
DC
Frequency control voltage 1 (Hz)
50 Hz to 60 Hz
Control voltage 2 (V)
0 V to 0 V
Type of control voltage 2
DC
Frequency control voltage 2 (Hz)
50 Hz to 60 Hz
Rated switch current (A)
16
Supply voltage (V)
24 V to 24 V
Voltage type of supply voltage
DC
Max. incandescent lamp load (W)
2000
Max. load fluorescent lamp (VA)
1000
Max. load fluorescent lamp (Duo circuit) (VA)
750
Max. load fluorescent lamp (parallel compensated) (VA)
750
Max. switching current (cos phi = 0.6) (A)
18
Manual override
Yes
