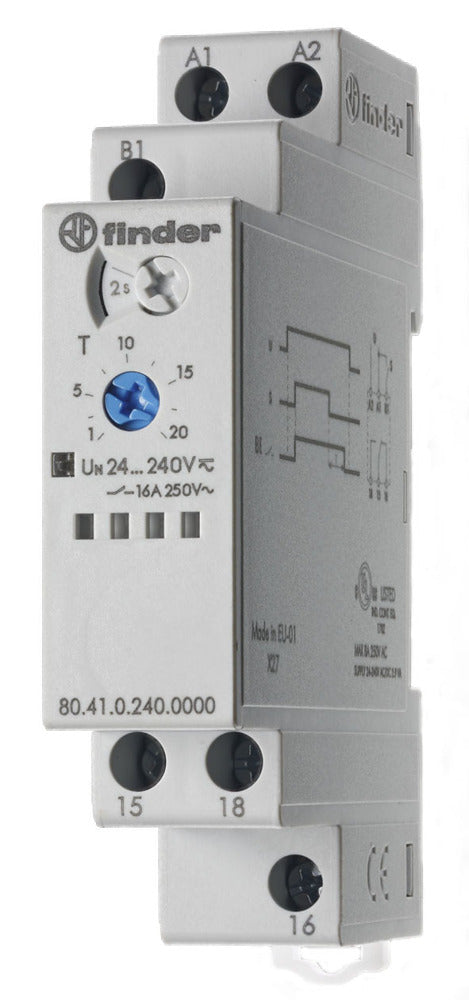

Finder 80.41 Timer Relay 16A 24-240V AC/DC Off-Delay - 80.41.0.240.0000

Finder 80.41 Timer Relay 16A 24-240V AC/DC Off-Delay - 80.41.0.240.0000
Finder 80.41 Timer Relay 16A 24-240V AC/DC Off-Delay - 80.41.0.240.0000
Reference: E3U9J
Brand: Finder
Mfr. Part: 80.41.0.240.0000

Single-function off-delay timer relay with 17.5mm width and one changeover contact rated at 16A/250VAC. Features an adjustable time range from 0.1s to 24h and operates on a wide voltage range of 24-240V AC/DC. Designed for DIN rail mounting with screw terminal connections, this relay activates timing function when control signal opens.

View all
$50.32 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 58 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Single-function off-delay timer relay with 17.5mm width and one changeover contact rated at 16A/250VAC. Features an adjustable time range from 0.1s to 24h and operates on a wide voltage range of 24-240V AC/DC. Designed for DIN rail mounting with screw terminal connections, this relay activates timing function when control signal opens.

Pros:

  • Wide operating voltage range 24-240V AC/DC
  • Compact 17.5mm width design
  • High current rating of 16A
  • Extended timing range from 0.1s to 24h

Downloads

Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Electrical connectioni
Screw connection
Function delay-on energization
No
Function delay on de-energization
Yes
Function floating contact on energization
No
Function floating contact on de-energization
No
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage Us at AC 50HZ
24..240 V
Rated control supply voltage Us at AC 60HZ
24..240 V
Rated control supply voltage Us at DC
24..240 V
Voltage type for actuating
AC/DC
Nominal current
16 A
Time range
0.1..86400 s
