Finder 20 Bistable Relay - 20.22.8.024.4000

Finder 20 Bistable Relay - 20.22.8.024.4000
Finder 20 Bistable Relay - 20.22.8.024.4000

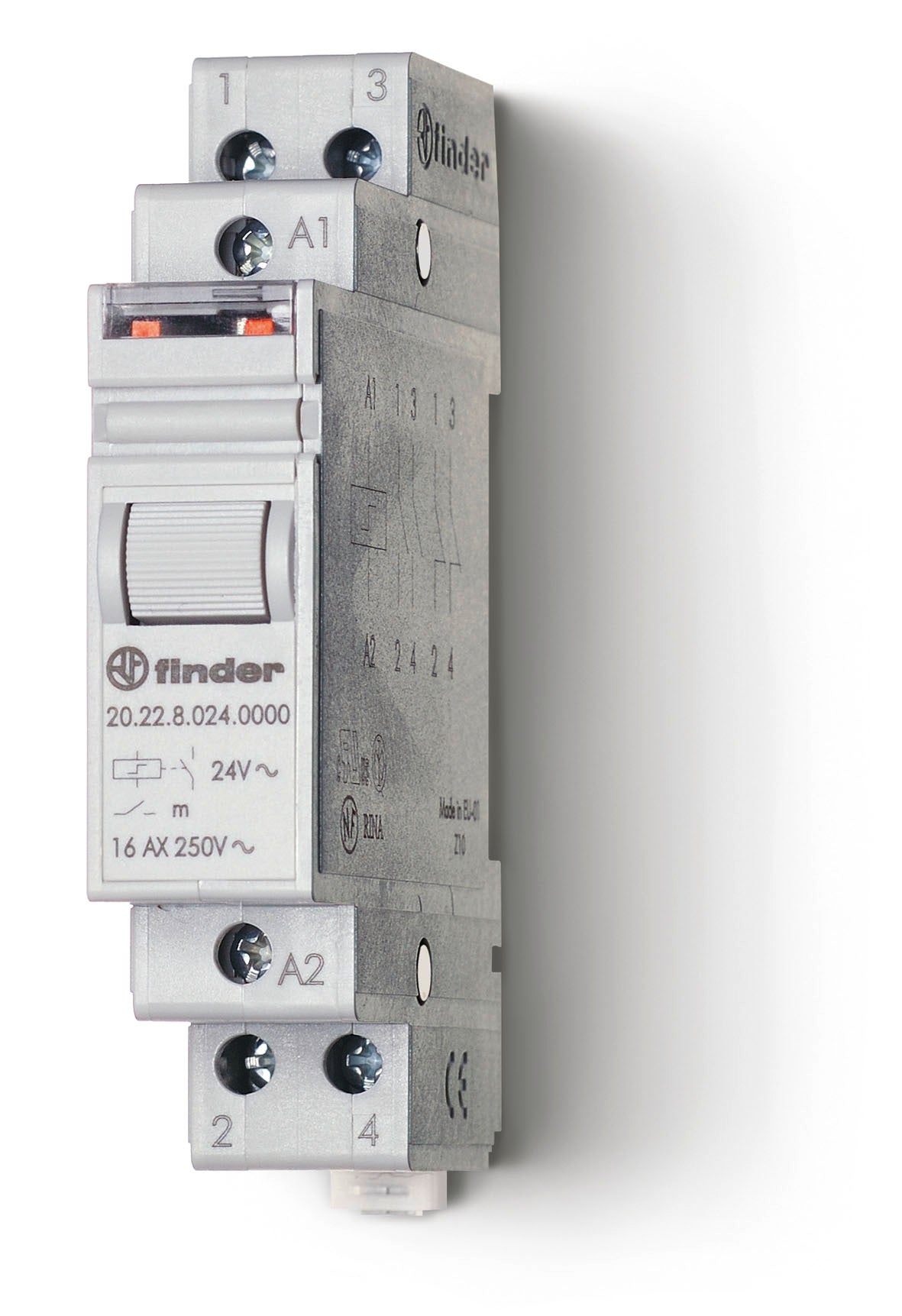

Image may vary slightly
See specifications for accurate information.
Reference: E2HCC
Brand: Finder
Mfr. Part: 20.22.8.024.4000

Finder 20 bistable relay, (WxDxH) 17.5x55x60mm, coil voltage 1 20.4 - 26.4V, coil voltage type 1 AC, supply voltage 24V, DIN rail, coil voltage AC 24V, 2 make contacts, nom. (measuring) switching current 16A, 1 module 18mm (TE), width in module units 1, frequency coil voltage 1 50 - 60Hz.

View all
$27.79 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 38 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Finder 20 bistable relay, (WxDxH) 17.5x55x60mm, coil voltage 1 20.4 - 26.4V, coil voltage type 1 AC, supply voltage 24V, DIN rail, coil voltage AC 24V, 2 make contacts, nom. (measuring) switching current 16A, 1 module 18mm (TE), width in module units 1, frequency coil voltage 1 50 - 60Hz.

Downloads

Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Function
Mechanical switch
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth (mm)
60.8
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
20.4 V to 26.4 V
Type of control voltage 1
AC
Frequency control voltage 1 (Hz)
50 Hz to 60 Hz
Control voltage 2 (V)
0 V to 0 V
Frequency control voltage 2 (Hz)
0 Hz to 0 Hz
Rated switch current (A)
16
Supply voltage (V)
24 V to 24 V
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
2000
Max. load fluorescent lamp (VA)
1000
Max. load fluorescent lamp (Duo circuit) (VA)
750
Max. load fluorescent lamp (parallel compensated) (VA)
750
Max. switching current (cos phi = 0.6) (A)
18
