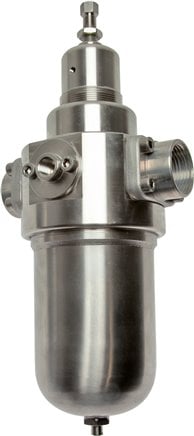

Filter-Regulator G1'' 6000 l/min 0.5-8.0bar/7-116psi Manual Stainless Steel
This G 1 inch high-quality pneumatic filter regulator (FR) removes moisture and contaminants over 50 microns and regulates the output pressure between 0.5 to 8.0 bar (7 to 116 psi). The regulator is self-relieving. The max flow rate is 6000 l/min. The condensate drain is manual, requiring manual release of condensate.Suitable for a 30.0 bar (435 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).
- Regular price
- $2,360.14 USD
We sell only to registered businesses
Description
This filter regulator (FR) combines two functions. The filter removes water, dirt and other harmful particles larger than 50 microns. The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 to 8.0 bar (7 to 116 psi). This model has G 1 inch ports. The maximum flow rate is 6000 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.
The maximum input pressure is 30.0 bar (435 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). It has a manual condensate drain. There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of stainless steel and the filter has a bowl made of 1.4401.
Mounting brackets need to be ordered separately.
