Image may vary slightly
See specifications for accurate information.
Reference: P255V
Brand: Knocks
Mfr. Part: KFIL-014

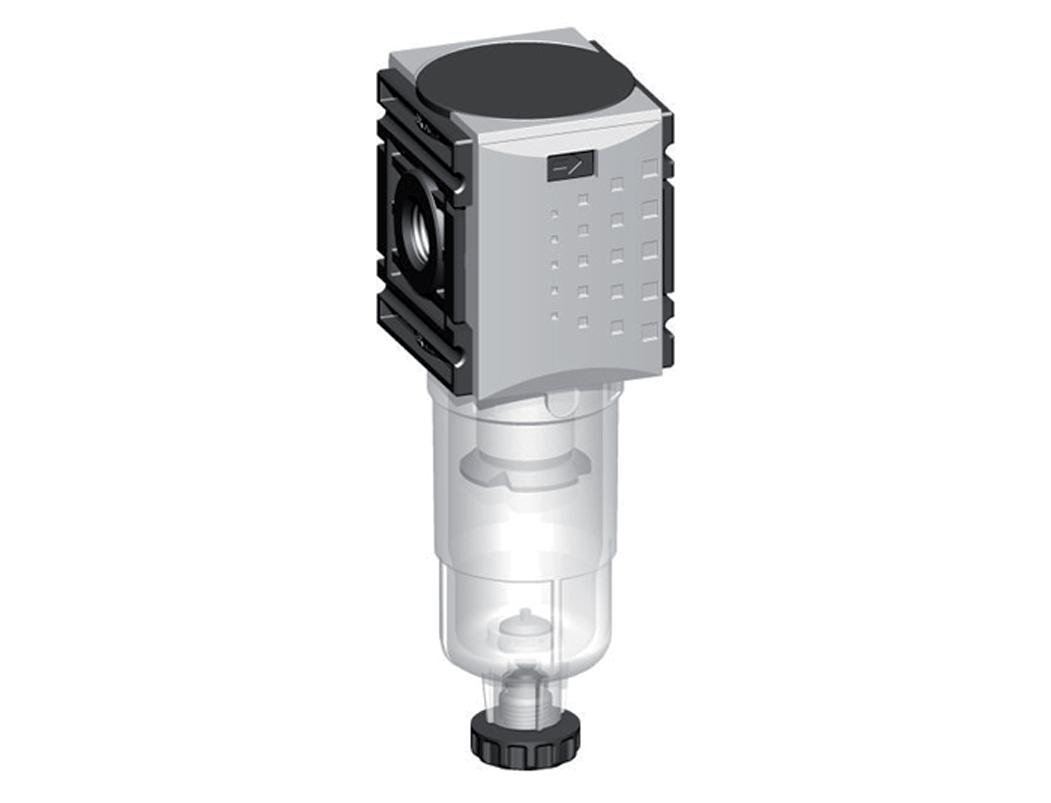

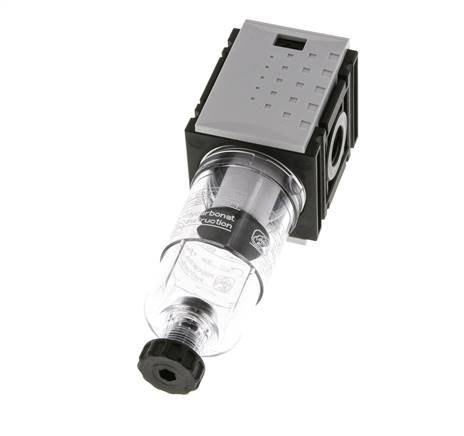

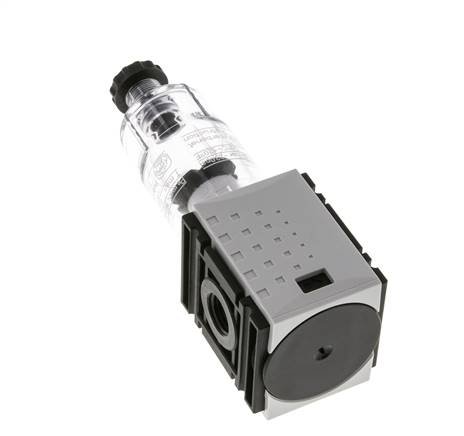

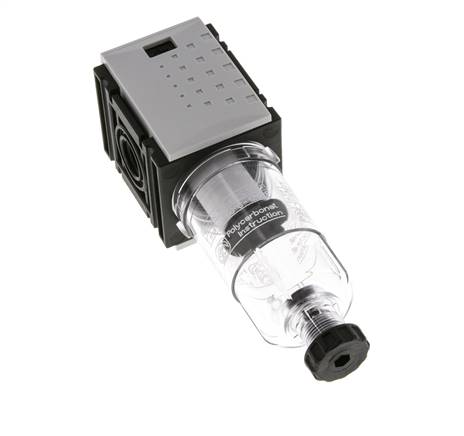

This G 1/4 inch pneumatic filter filters out contaminants larger than 5 microns to ensure clean air. The max flow rate is 1000 l/min (always use the flow chart for correct sizing). The semi-auto drain valve will open every time the compressed air is shut off. Suitable for a 12.0 bar (174 psi) max input and temperatures between -10 and 50 °C (14 and 122 °F).

View all
Regular price
$17.55 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 26 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

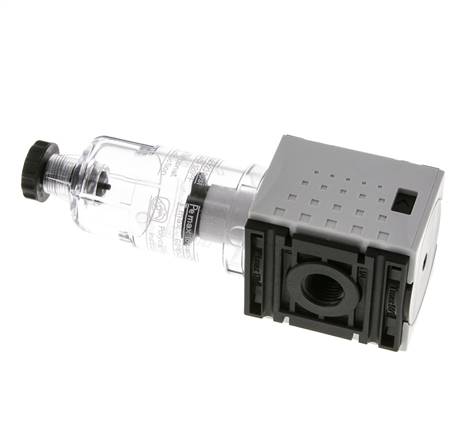

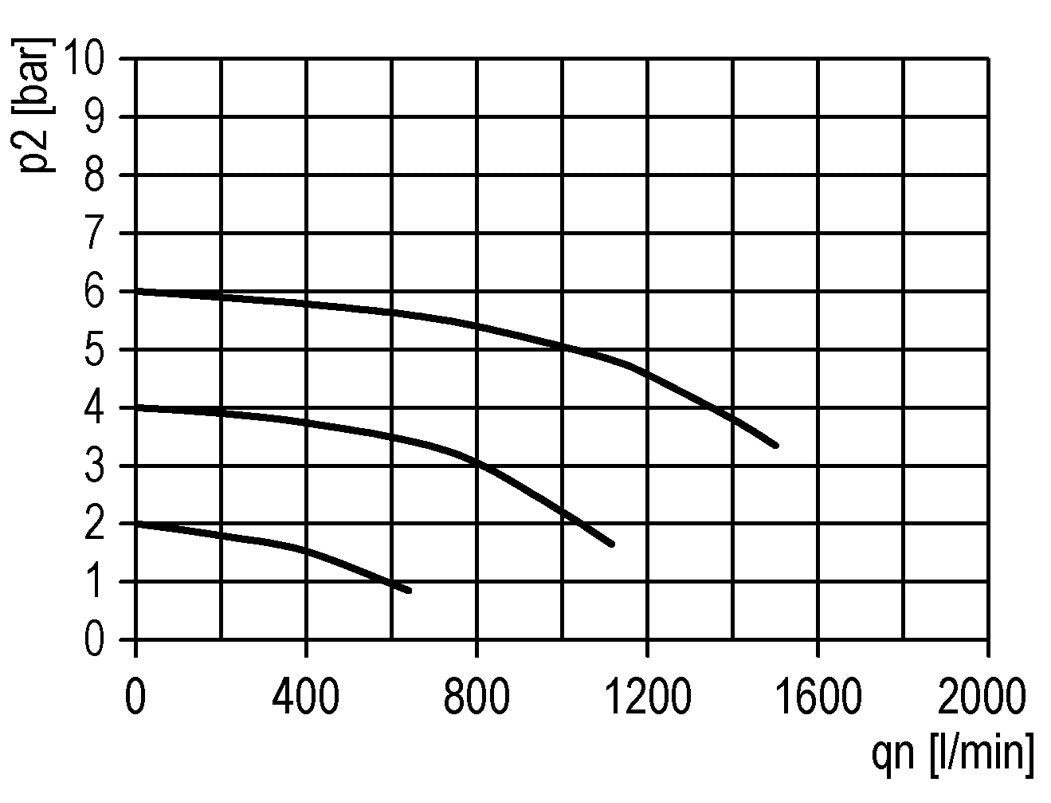

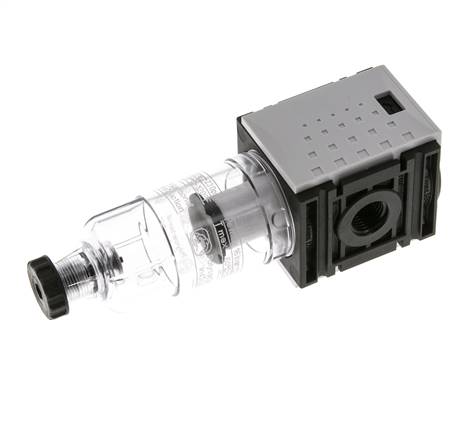

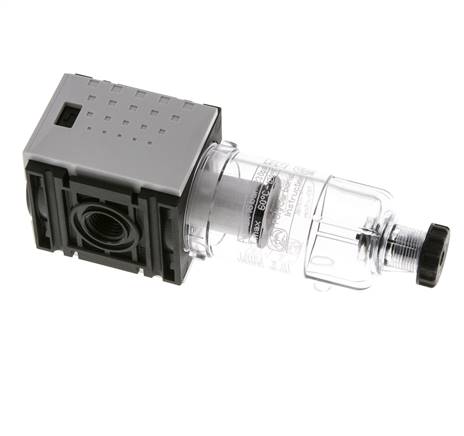

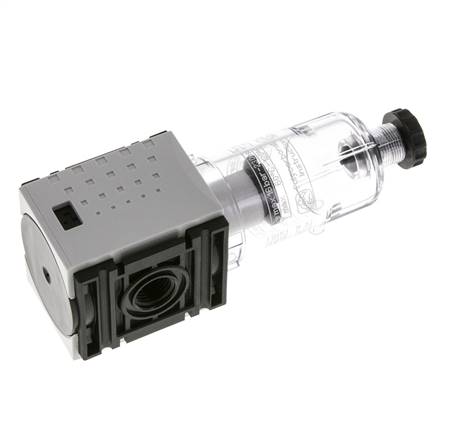

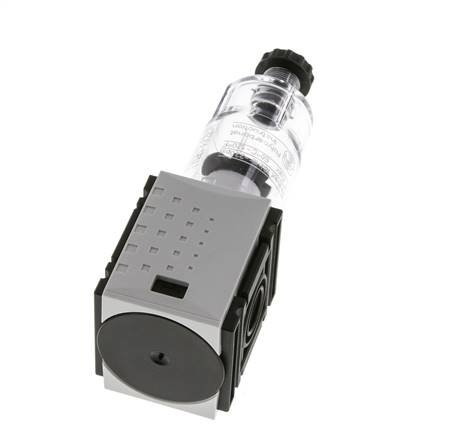

The filter removes water, dirt and other harmful particles larger than 5 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 1/4 inch ports. The maximum flow rate is 1000 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.

The maximum input pressure is 12.0 bar (174 psi) and the temperature range is between -10 and 50 °C (14 and 122 °F). It has a semi-auto condensate drain with a drain capacity of 16 cm3. Semi-auto means that it drains as soon as the airline is depressurized, however it can also be drained manually. The housing material is made out of PA 66 and the filter has a bowl made of polycarbonate (PC).

Mounting brackets need to be ordered separately.
