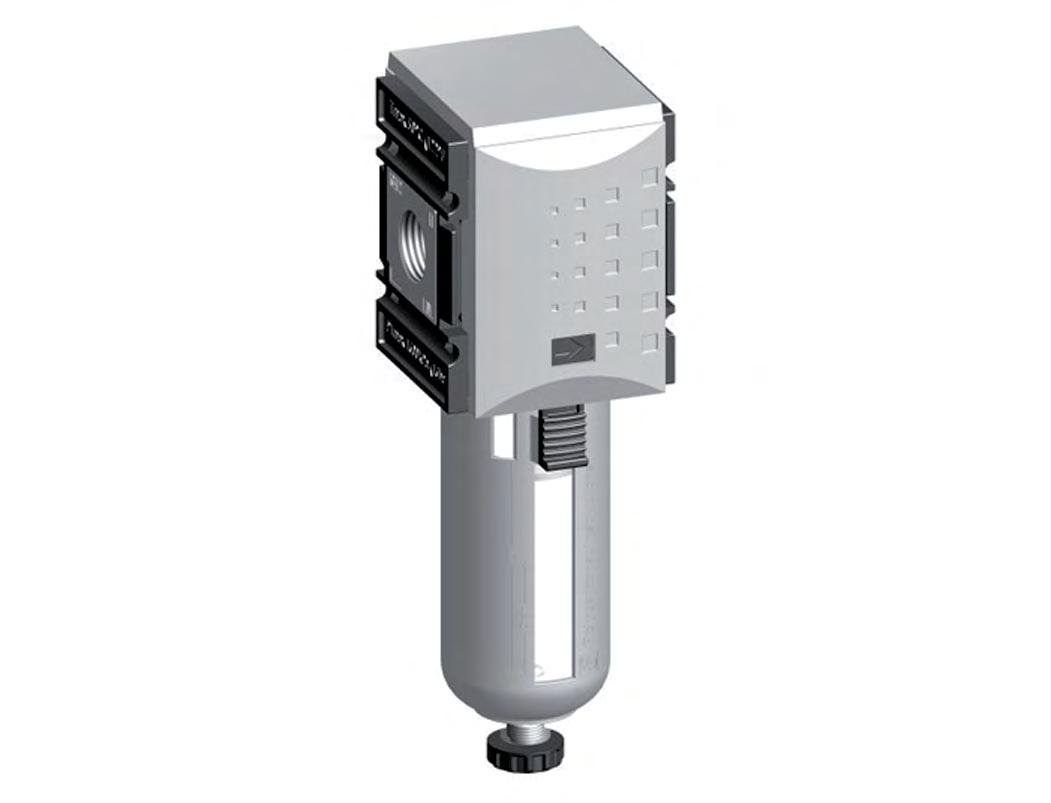

Filter 5microns G1/2'' 3500 l/min Auto (Closed Without Pressure) Polycarbonate Futura 2
This G 1/2 inch pneumatic filter filters out contaminants larger than 5 microns to ensure clean air. The max flow rate is 3500 l/min (always use the flow chart for correct sizing). The auto drain valve will open and close automatically based on residue level. Automatic discharge closed when not pressurized.Suitable for a 16.0 bar (232 psi) max input and temperatures between -10 and 50 °C (14 and 122 °F).
- Regular price
- $98.52 USD
Description

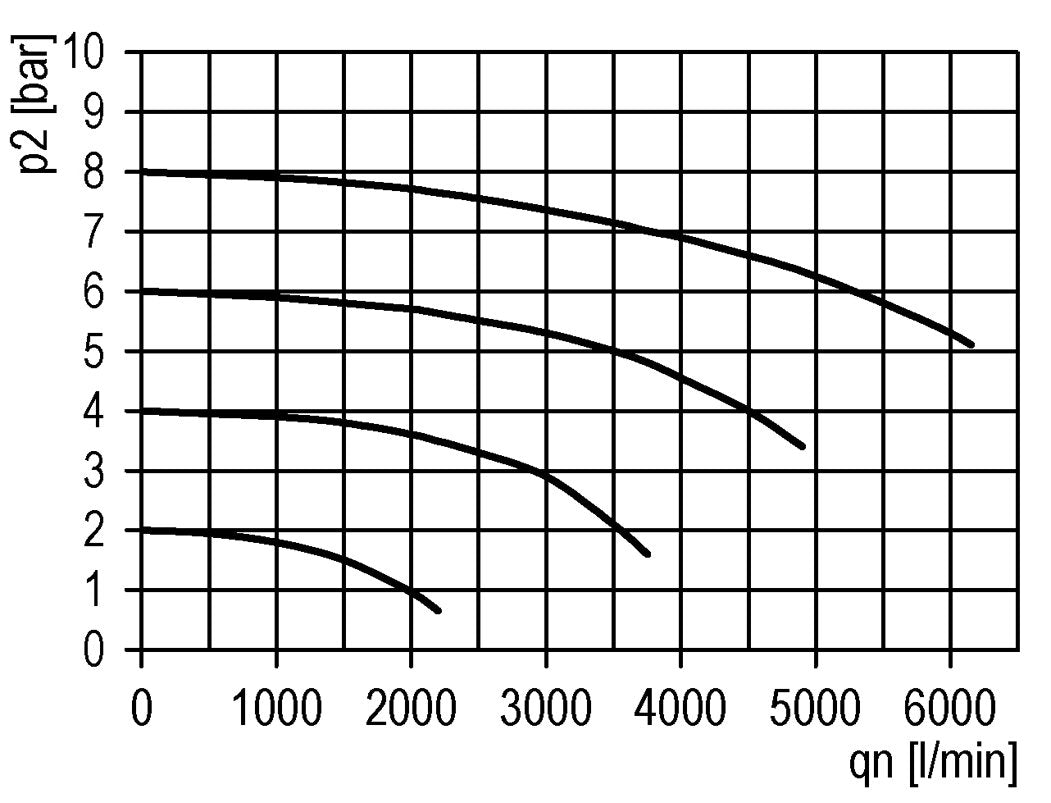

The filter removes water, dirt and other harmful particles larger than 5 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 1/2 inch ports. The maximum flow rate is 3500 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.
The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 50 °C (14 and 122 °F). It has an automatic (closed without pressure) condensate drain with a drain capacity of 49 cm3. The housing material is made out of PA 66 and the filter has a bowl made of polycarbonate (PC).
Mounting brackets need to be ordered separately.
