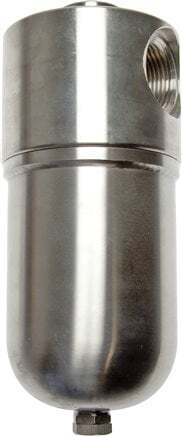

Filter 50microns G1/4'' 900 l/min Auto Stainless Steel
This G 1/4 inch pneumatic filter filters out contaminants larger than 50 microns to ensure clean air. The max flow rate is 900 l/min. The auto drain valve will open and close automatically based on residue level. Suitable for a 50.0 bar (725 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).
- Regular price
- $654.89 USD
Description
The filter removes water, dirt and other harmful particles larger than 50 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 1/4 inch ports. The maximum flow rate is 900 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance.
The maximum input pressure is 50.0 bar (725 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). It has an auto condensate drain. The housing material is made out of stainless steel and the filter has a bowl made of 1.4401.
Mounting brackets need to be ordered separately.
