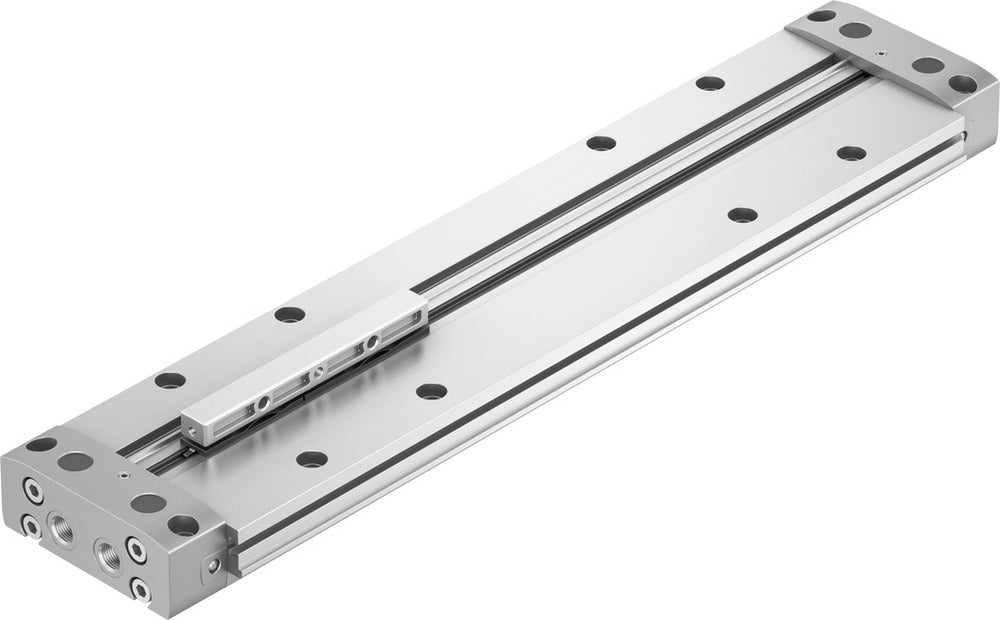

Festo Linear Actuator 32mm Bore 600mm Stroke Double Acting - 5074790
This double-acting linear actuator features a 32 mm piston diameter and 600 mm stroke, delivering a theoretical force of 483 N at 6 bar when advancing. It incorporates self-adjusting pneumatic end-position cushioning for smooth operation and is compatible with proximity sensors for position sensing. The actuator's extremely flat design allows for versatile mounting options, including below-table installation, and direct attachment of loads and machining jigs to the slide.
- Regular price
- $546.58 USD
We sell only to registered businesses
Description
This double-acting linear actuator features a 32 mm piston diameter and 600 mm stroke, delivering a theoretical force of 483 N at 6 bar when advancing. It incorporates self-adjusting pneumatic end-position cushioning for smooth operation and is compatible with proximity sensors for position sensing. The actuator's extremely flat design allows for versatile mounting options, including below-table installation, and direct attachment of loads and machining jigs to the slide.
