Festo Linear Actuator 25mm Bore 100mm Stroke Double Acting - 5072370

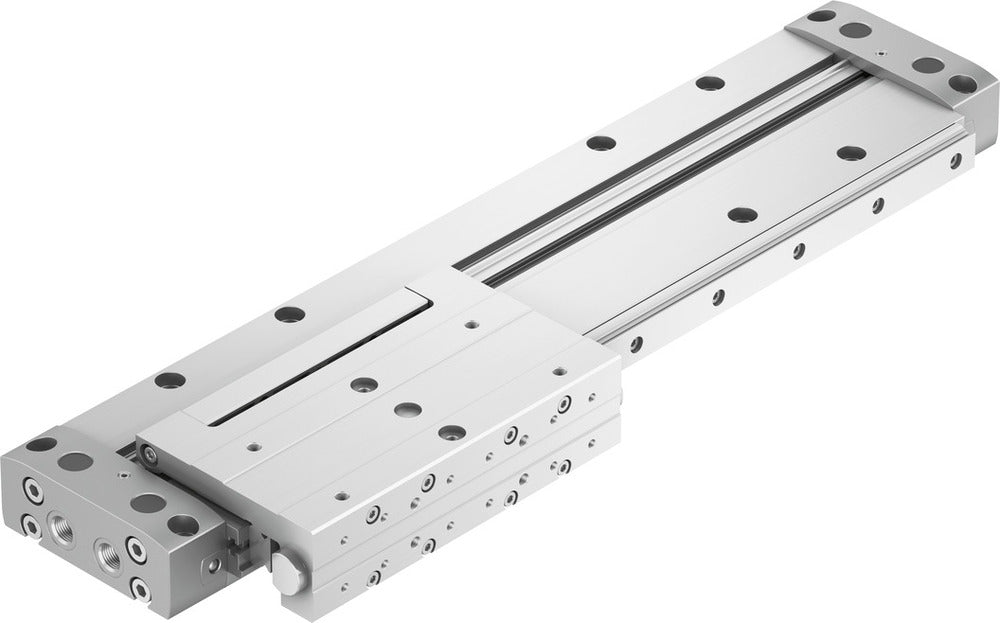

This linear actuator features a recirculating ball bearing guide and double-acting operation with a 25 mm piston diameter. It delivers a theoretical force of 295 N at 6 bar when advancing, with a stroke length of 100 mm. The actuator includes self-adjusting pneumatic end-position cushioning and is compatible with proximity sensors for position sensing. Its extremely flat design allows for versatile mounting options, including below-table installation, and direct attachment of loads and machining jigs to the slide.
- Regular price
- $741.45 USD
We sell only to registered businesses
Description
This linear actuator features a recirculating ball bearing guide and double-acting operation with a 25 mm piston diameter. It delivers a theoretical force of 295 N at 6 bar when advancing, with a stroke length of 100 mm. The actuator includes self-adjusting pneumatic end-position cushioning and is compatible with proximity sensors for position sensing. Its extremely flat design allows for versatile mounting options, including below-table installation, and direct attachment of loads and machining jigs to the slide.
