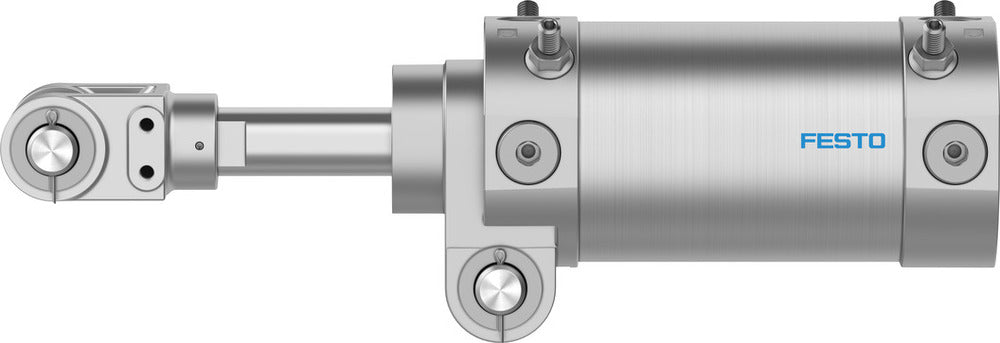

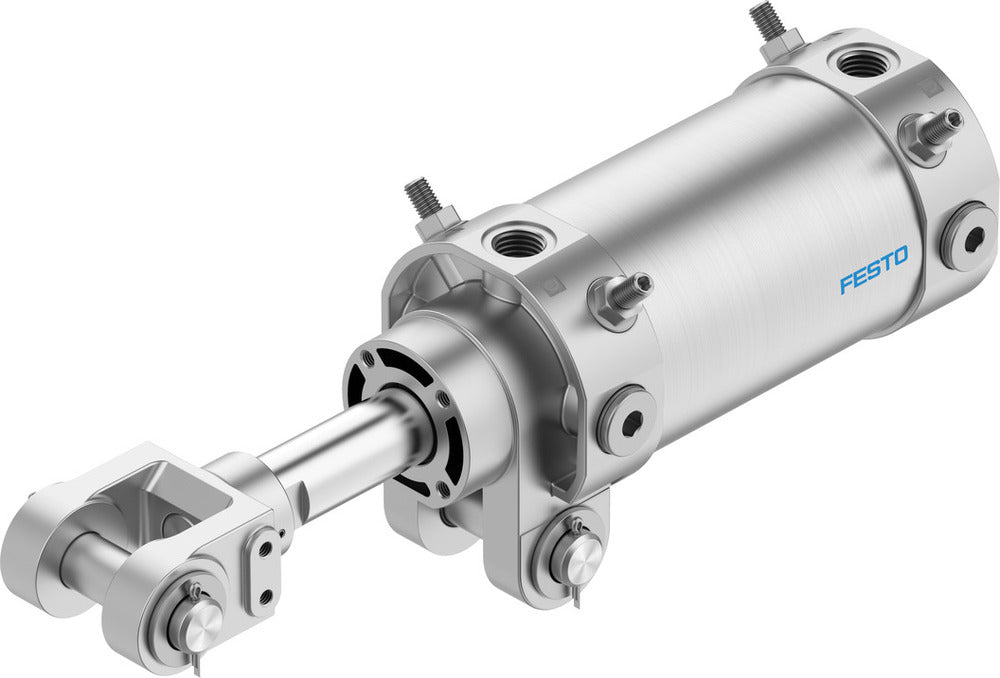

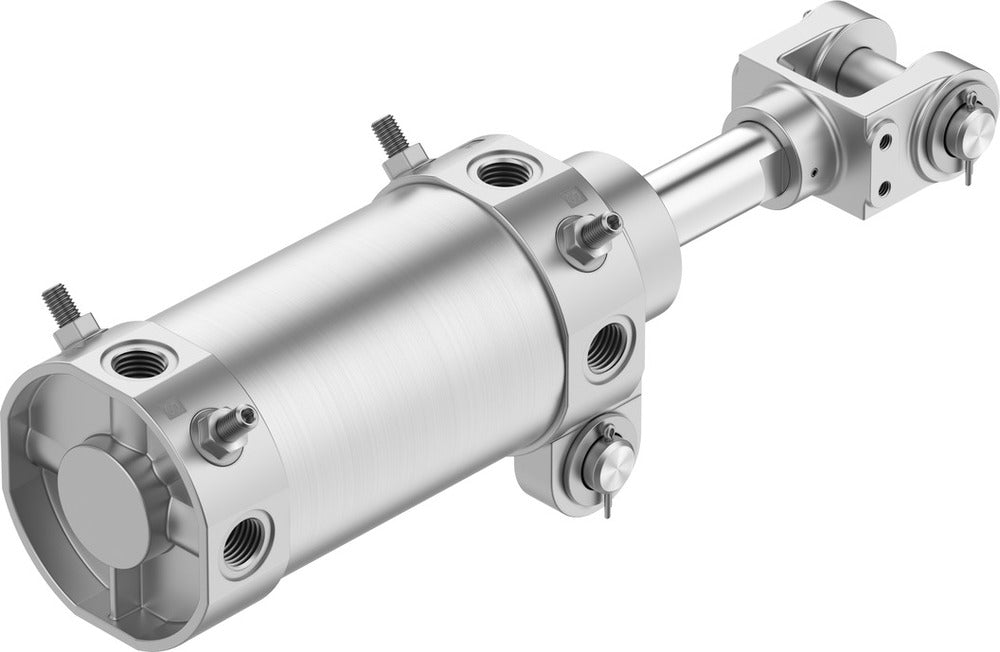

Festo Hinge Cylinder 80mm Bore 75mm Stroke Double Acting - 565804
This double-acting hinge cylinder features an 80 mm piston diameter and a 75 mm stroke, providing theoretical forces of 3016 N advancing and 2721 N retracting at 6 bar. With a G3/8 pneumatic connection, it offers easy mounting due to its articulated design with a joint yoke on the bearing cap. The cylinder includes integrated throttling, end-position cushioning, and a rod wiper seal for protection against welding spatter, making it suitable for clamping components in welding processes.
- Regular price
- $372.05 USD
We sell only to registered businesses
Description
This double-acting hinge cylinder features an 80 mm piston diameter and a 75 mm stroke, providing theoretical forces of 3016 N advancing and 2721 N retracting at 6 bar. With a G3/8 pneumatic connection, it offers easy mounting due to its articulated design with a joint yoke on the bearing cap. The cylinder includes integrated throttling, end-position cushioning, and a rod wiper seal for protection against welding spatter, making it suitable for clamping components in welding processes.
