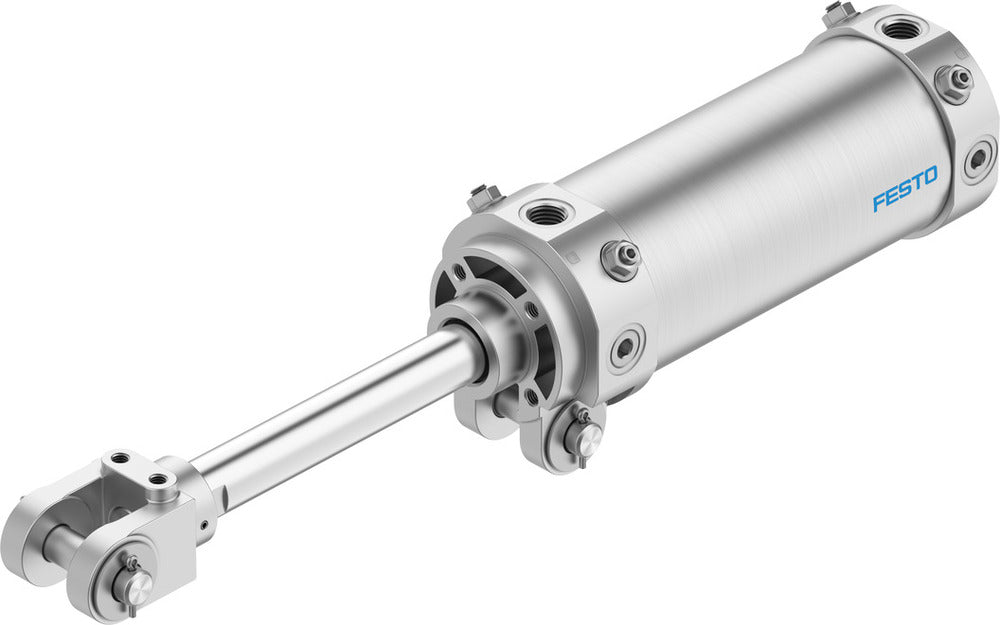

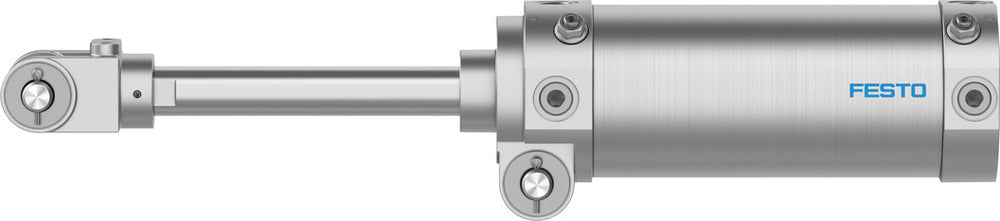

Festo Hinge Cylinder 63mm Bore 125mm Stroke Double Acting - 549576
This double-acting hinge cylinder with a 63 mm piston diameter and 125 mm stroke is designed for clamping components in welding processes. It features a joint yoke on the bearing cap for easy mounting and integrated throttling. The cylinder provides a theoretical force of 1870 N when advancing and 1682 N when retracting at 6 bar pressure. With a Rc1/4 pneumatic connection and rod wiper seal, it offers protection against welding spatter, making it suitable for automotive body production applications.
- Regular price
- $212.04 USD
We sell only to registered businesses
Description
This double-acting hinge cylinder with a 63 mm piston diameter and 125 mm stroke is designed for clamping components in welding processes. It features a joint yoke on the bearing cap for easy mounting and integrated throttling. The cylinder provides a theoretical force of 1870 N when advancing and 1682 N when retracting at 6 bar pressure. With a Rc1/4 pneumatic connection and rod wiper seal, it offers protection against welding spatter, making it suitable for automotive body production applications.
