Festo Hinge Cylinder 50mm Bore 50mm Stroke Double Acting - 549543

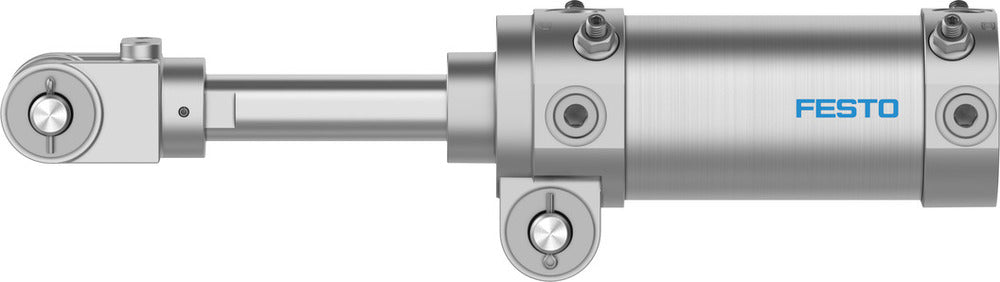

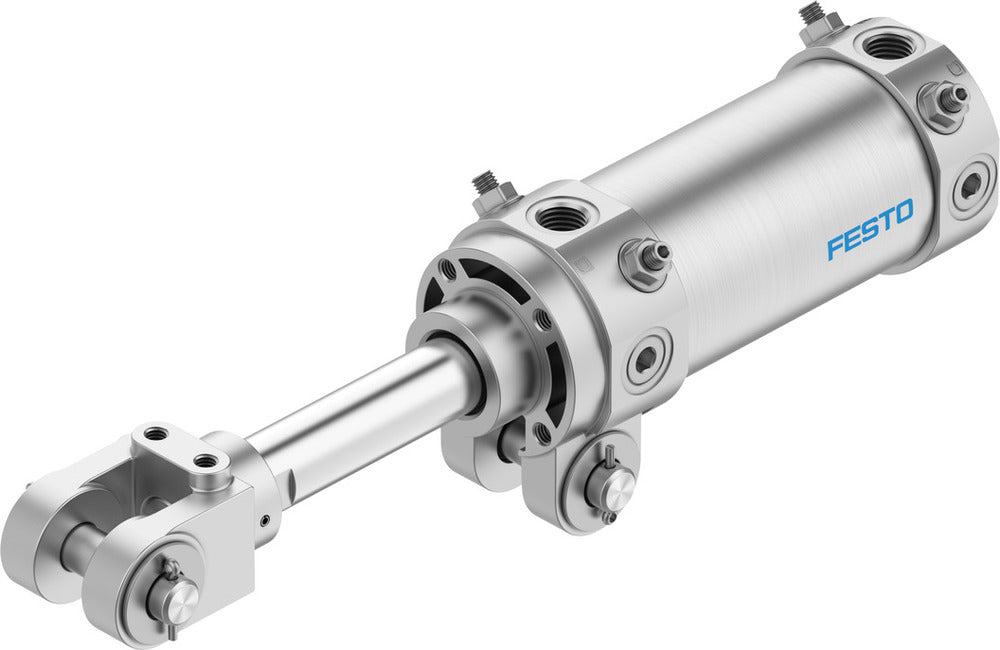

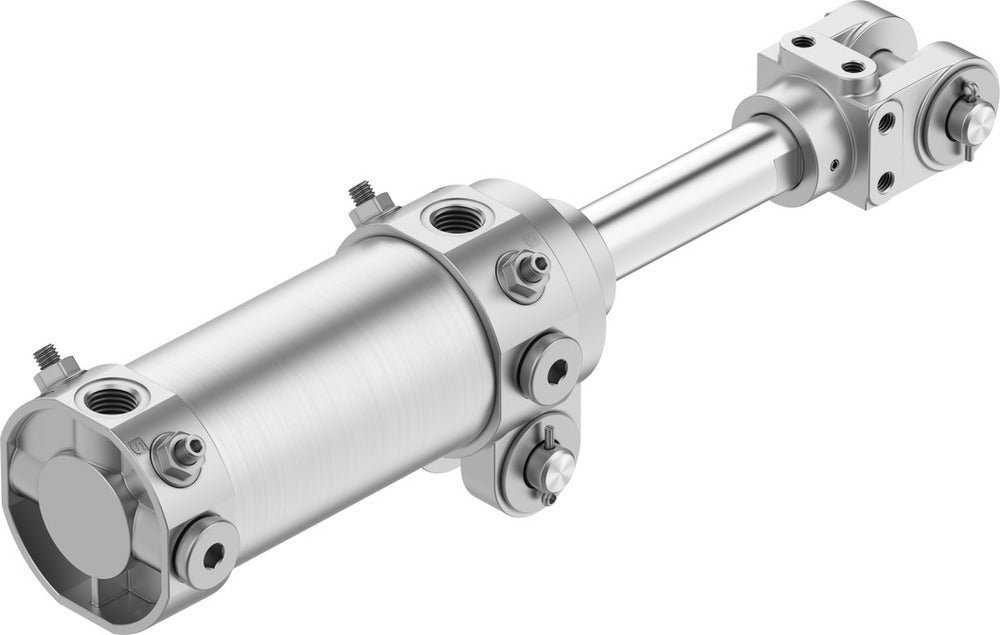

This double-acting hinge cylinder with a 50 mm piston diameter and 50 mm stroke is designed for clamping components in welding processes. It features a joint yoke on the bearing cap for easy mounting and integrated throttling. The cylinder provides a theoretical force of 1178 N when advancing and 990 N when retracting at 6 bar pressure. With a Rc1/4 pneumatic connection and rod wiper seal, it offers protection against welding spatter, making it suitable for automotive body production applications.
- Regular price
- $181.09 USD
We sell only to registered businesses
Description
This double-acting hinge cylinder with a 50 mm piston diameter and 50 mm stroke is designed for clamping components in welding processes. It features a joint yoke on the bearing cap for easy mounting and integrated throttling. The cylinder provides a theoretical force of 1178 N when advancing and 990 N when retracting at 6 bar pressure. With a Rc1/4 pneumatic connection and rod wiper seal, it offers protection against welding spatter, making it suitable for automotive body production applications.
