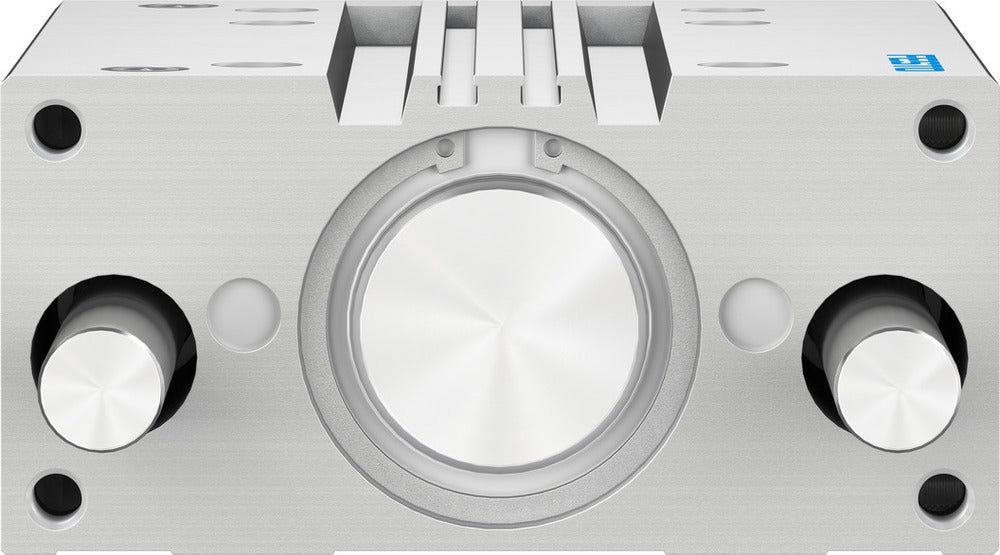

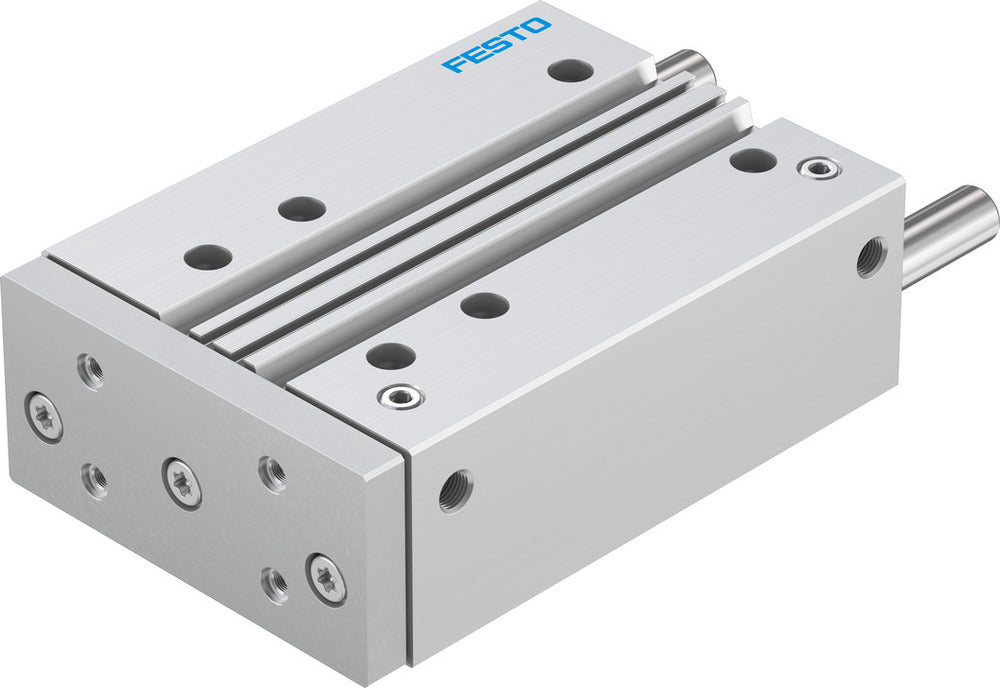

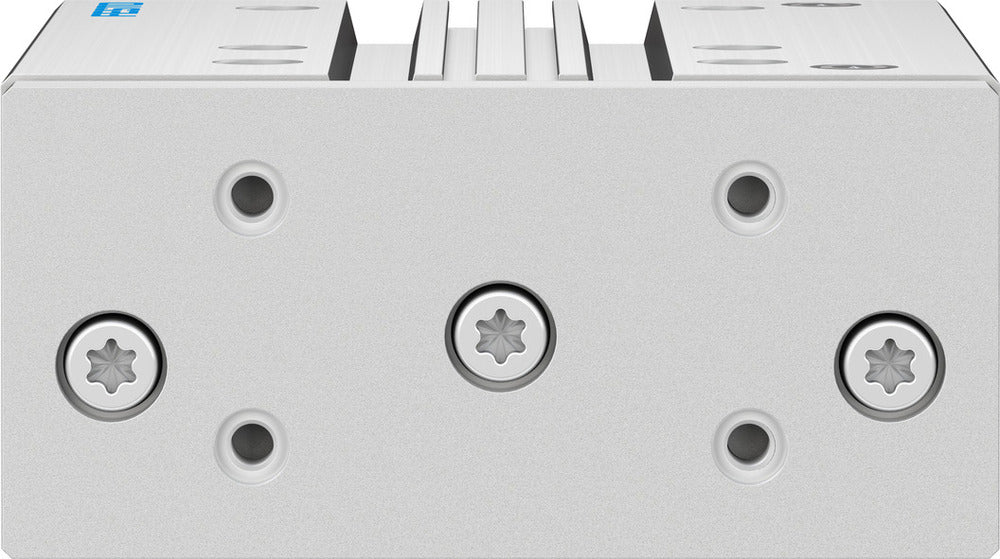

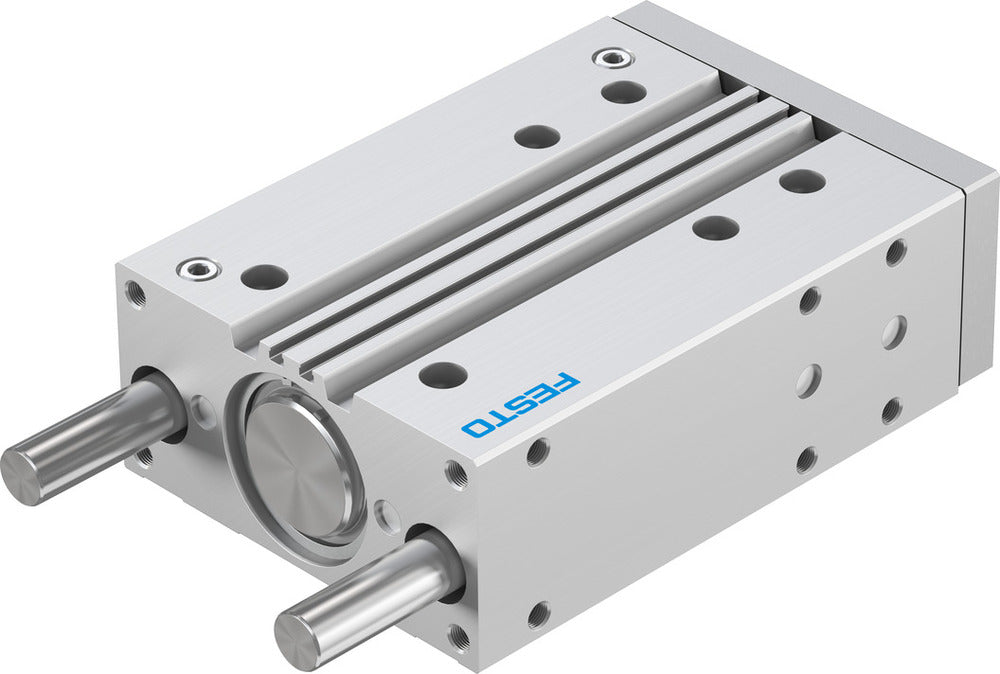

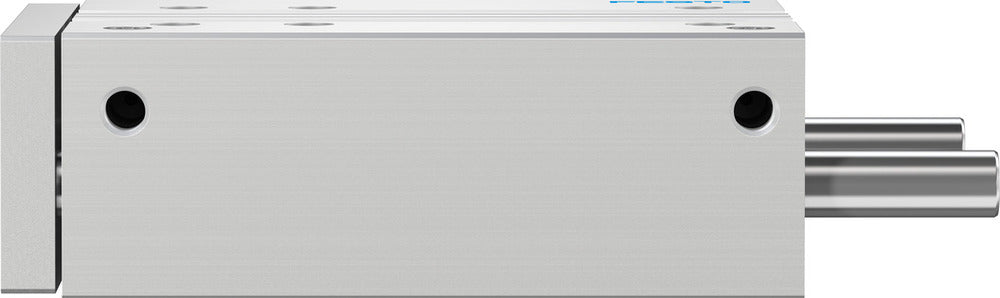

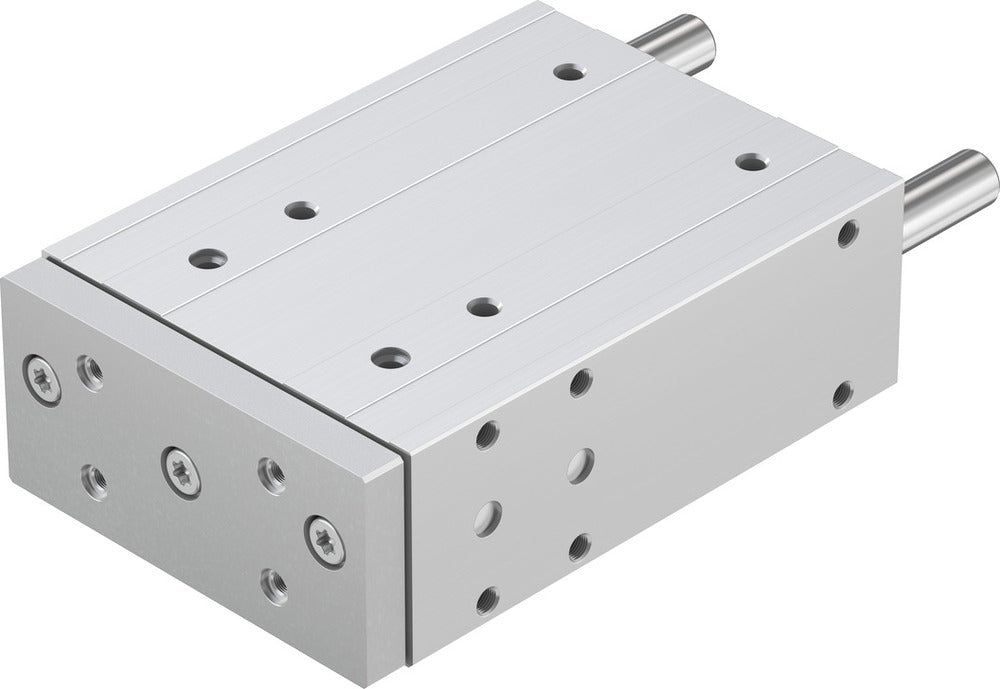

Festo Guided Actuator 63mm Bore 160mm Stroke Double Acting - 170958
The guided actuator DFM combines a recirculating ball bearing guide with a double-acting pneumatic cylinder in a single housing. With a 63 mm piston diameter and 160 mm stroke, it delivers a theoretical force of 1870 N at 6 bar when advancing. The actuator features elastic cushioning rings at both ends and is compatible with proximity sensors for position sensing. Its design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications in industrial environments.
- Regular price
- $1,118.33 USD
We sell only to registered businesses
Description
The guided actuator DFM combines a recirculating ball bearing guide with a double-acting pneumatic cylinder in a single housing. With a 63 mm piston diameter and 160 mm stroke, it delivers a theoretical force of 1870 N at 6 bar when advancing. The actuator features elastic cushioning rings at both ends and is compatible with proximity sensors for position sensing. Its design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications in industrial environments.
