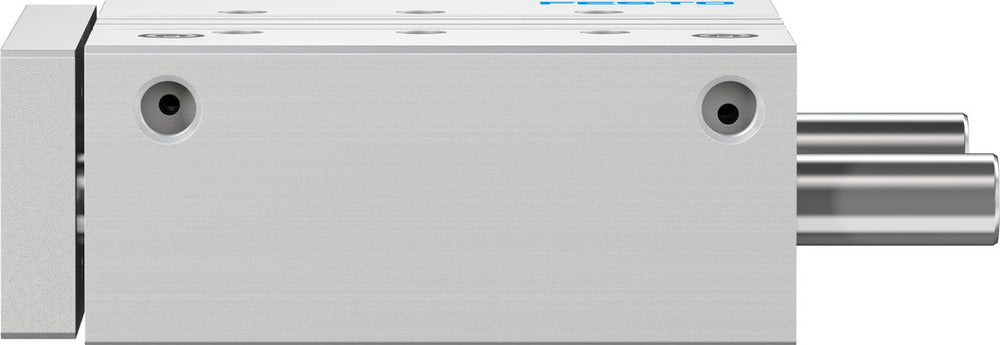

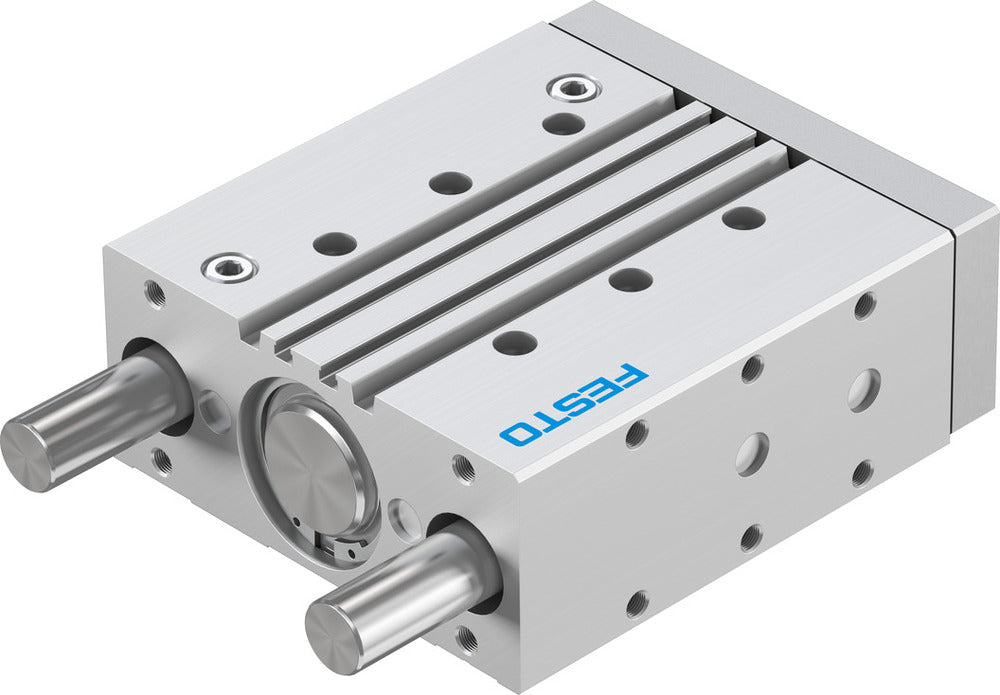

Festo Guided Actuator 50mm Bore 100mm Stroke Double Acting - 170949
The guided actuator DFM combines a recirculating ball bearing guide with a double-acting pneumatic cylinder in a single housing. With a 50 mm piston diameter and 100 mm stroke, it delivers a theoretical force of 1178 N at 6 bar when advancing. The actuator features elastic cushioning rings at both ends and is compatible with proximity sensors for position sensing. Its design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications in industrial environments.
- Regular price
- $824.77 USD
We sell only to registered businesses
Description
The guided actuator DFM combines a recirculating ball bearing guide with a double-acting pneumatic cylinder in a single housing. With a 50 mm piston diameter and 100 mm stroke, it delivers a theoretical force of 1178 N at 6 bar when advancing. The actuator features elastic cushioning rings at both ends and is compatible with proximity sensors for position sensing. Its design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications in industrial environments.
