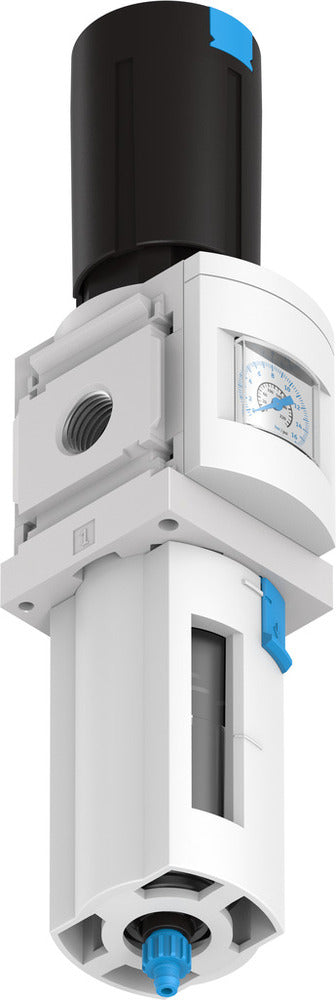

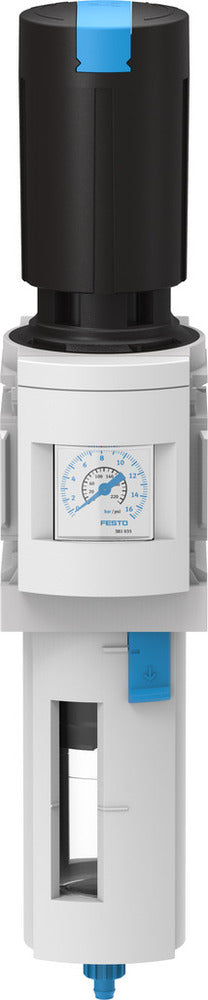

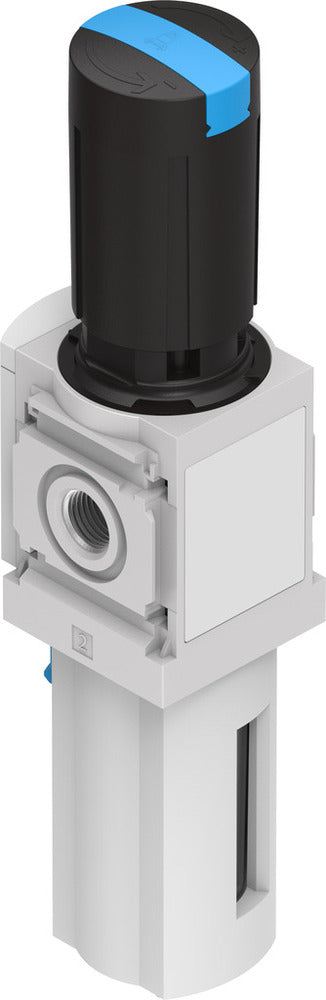

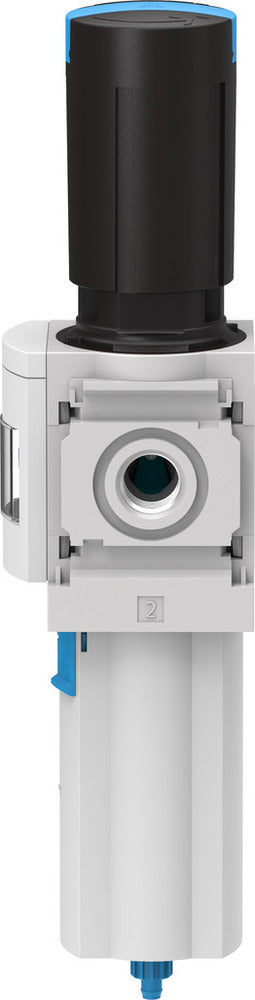

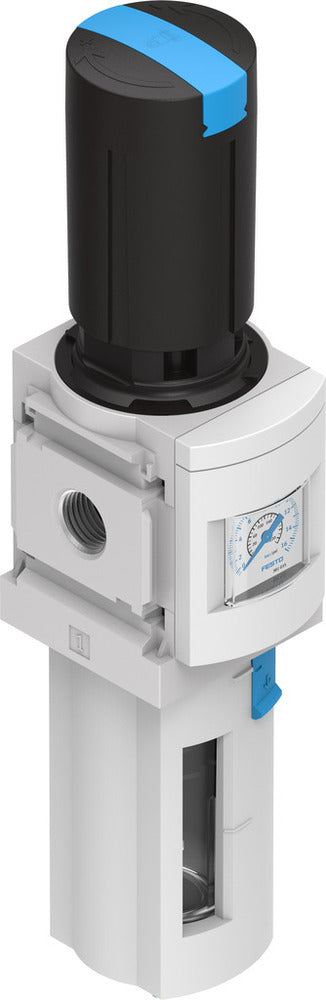

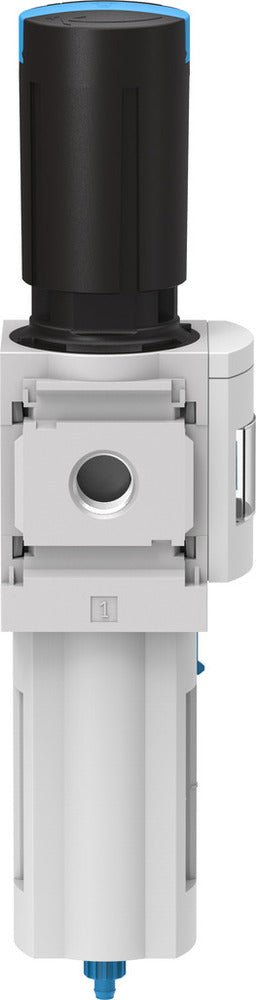

Festo Compressed Air Filter Regulator G3/8'' 0.5-12bar 4000l/min 40µm - 529228
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm width unit. It offers a standard nominal flow rate of 4000 l/min and a pressure regulation range of 0.5 - 12 bar. The G3/8 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
- Regular price
- $115.52 USD
We sell only to registered businesses
Description
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm width unit. It offers a standard nominal flow rate of 4000 l/min and a pressure regulation range of 0.5 - 12 bar. The G3/8 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
