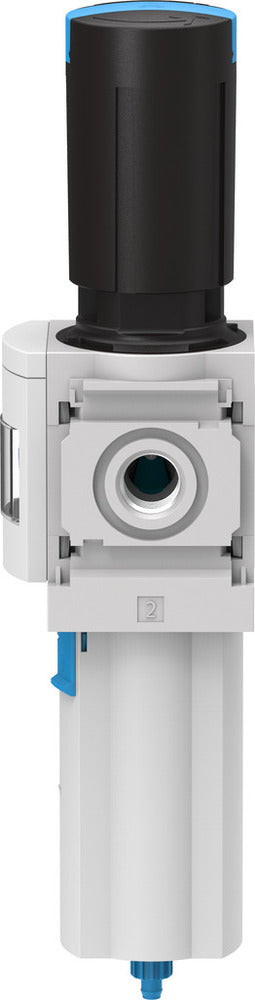

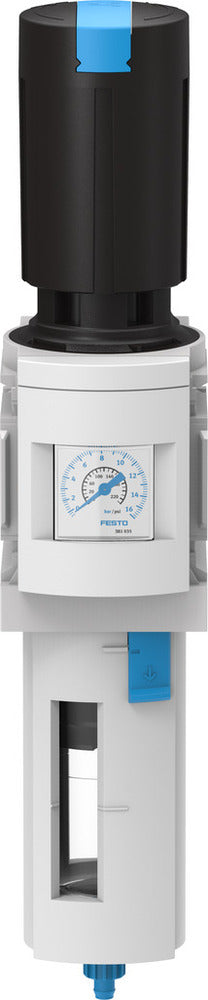

Festo Compressed Air Filter Regulator G3/8'' 0.3-7bar 5700l/min 40µm - 529220
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm width unit. It offers a standard nominal flow rate of 5700 l/min and a pressure regulation range of 0.3 - 7 bar. The G3/8 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings.
- Regular price
- $118.14 USD
Description
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm width unit. It offers a standard nominal flow rate of 5700 l/min and a pressure regulation range of 0.3 - 7 bar. The G3/8 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings.
