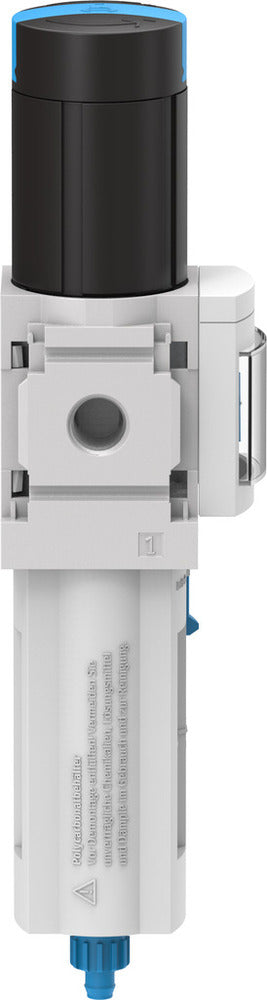

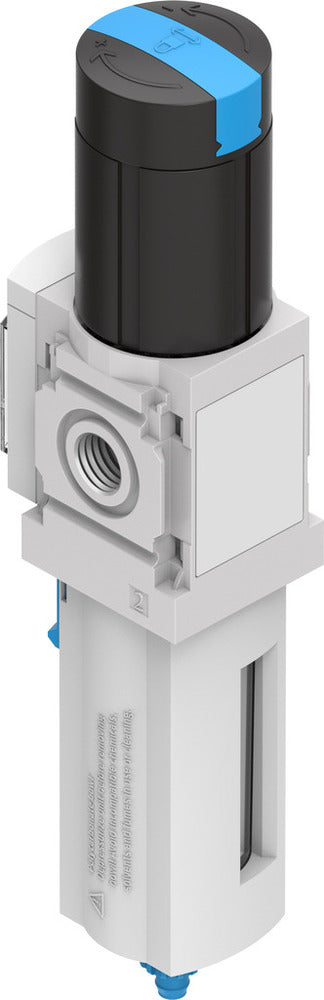

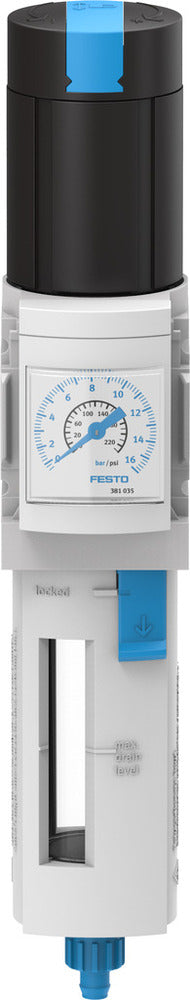

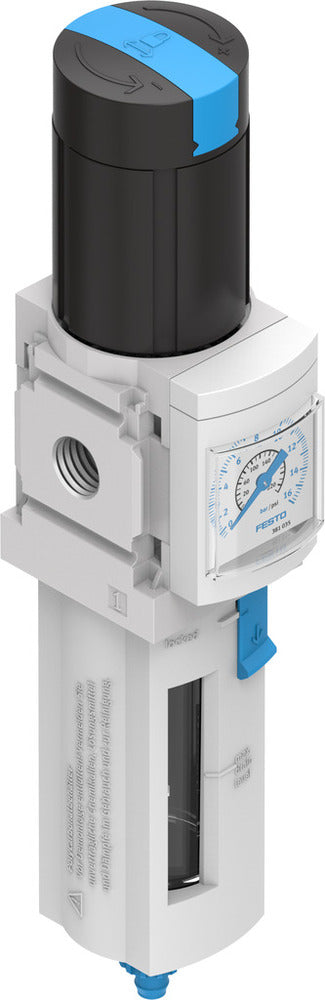

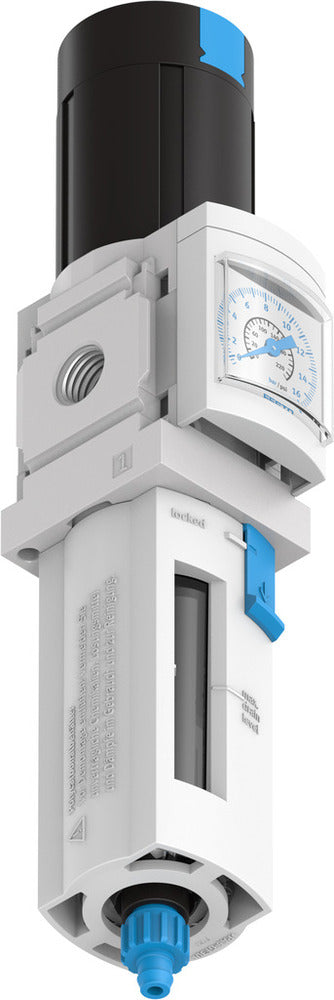

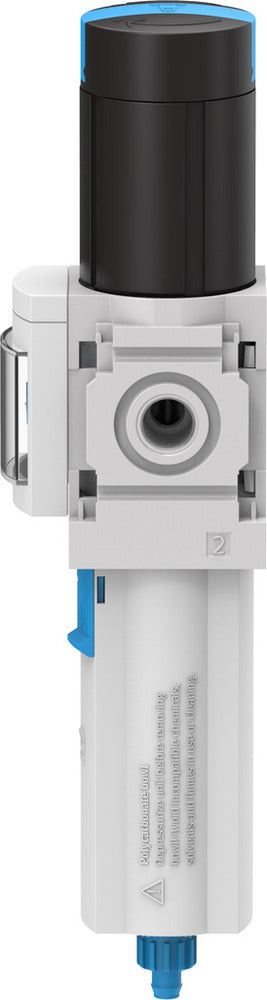

Festo Compressed Air Filter Regulator G1/8'' 0.3-7bar 900l/min 5µm - 529160
This compressed air filter regulator combines pressure regulation and filtration in a compact 40 mm width unit. It offers a standard nominal flow rate of 900 l/min and a pressure regulation range of 0.3 - 7 bar. The G1/8 pneumatic connection and 5 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
- Regular price
- $89.19 USD
We sell only to registered businesses
Description
This compressed air filter regulator combines pressure regulation and filtration in a compact 40 mm width unit. It offers a standard nominal flow rate of 900 l/min and a pressure regulation range of 0.3 - 7 bar. The G1/8 pneumatic connection and 5 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
