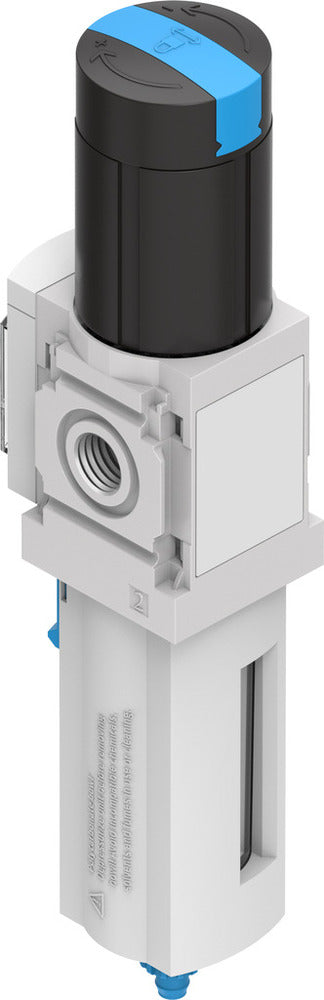

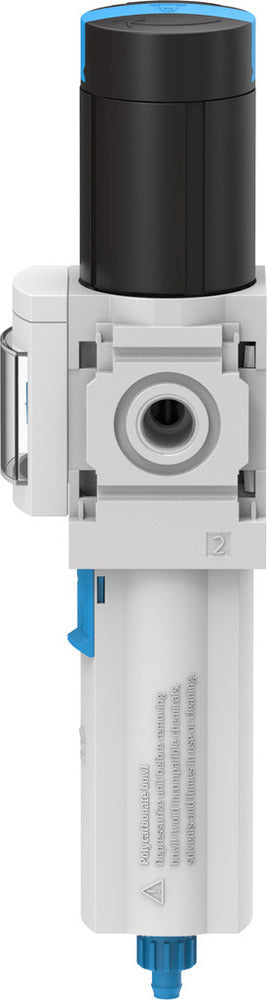

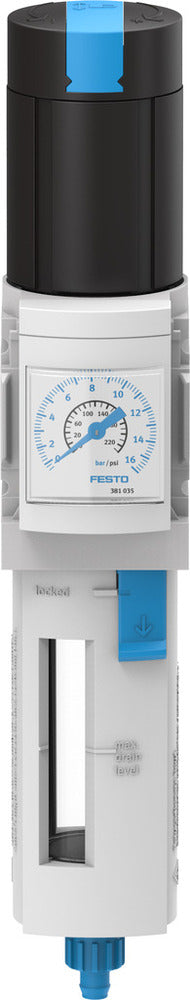

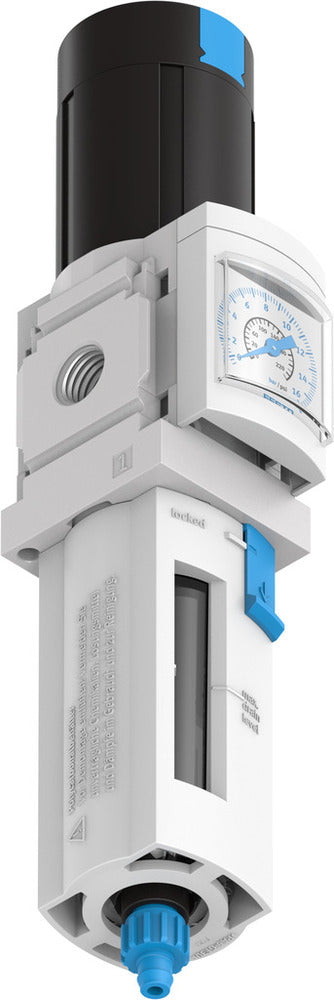

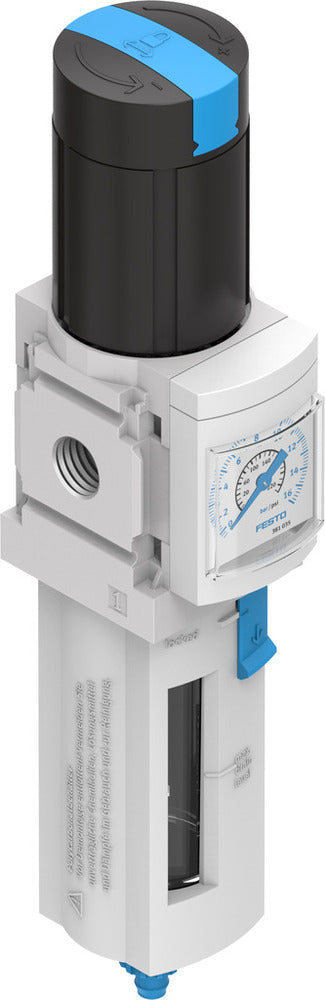

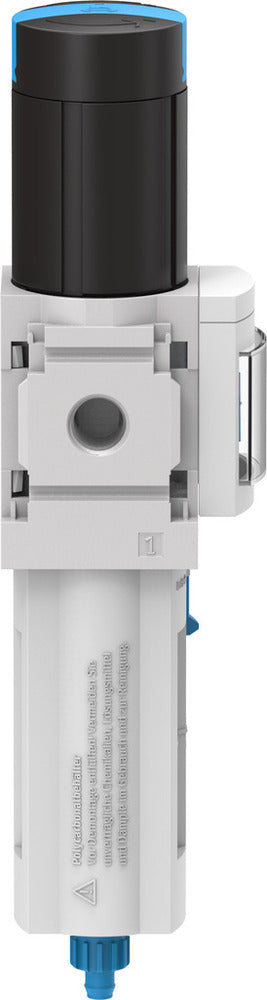

Festo Compressed Air Filter Regulator G1/4'' 0.5-12bar 1500l/min 40µm - 529157

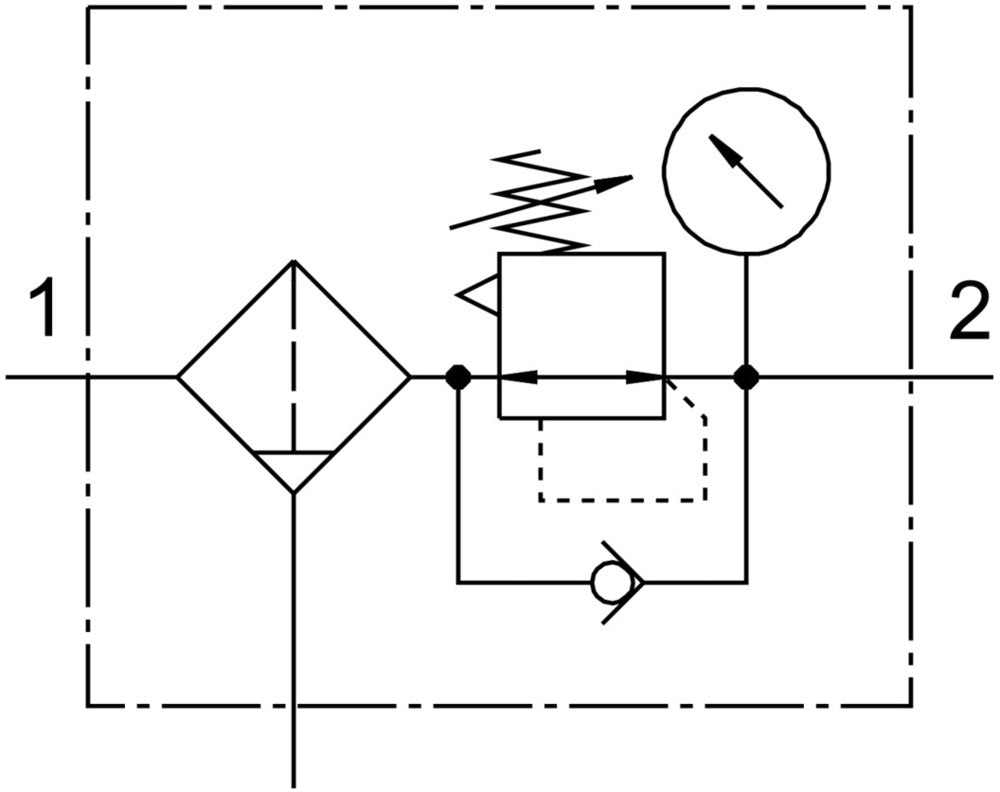

This compressed air filter regulator combines pressure regulation and filtration in a compact 40 mm width unit. It offers a standard nominal flow rate of 1500 l/min and a pressure regulation range of 0.5 - 12 bar. The G1/4 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
- Regular price
- $89.17 USD
Description
This compressed air filter regulator combines pressure regulation and filtration in a compact 40 mm width unit. It offers a standard nominal flow rate of 1500 l/min and a pressure regulation range of 0.5 - 12 bar. The G1/4 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
