ESYLUX Standard Motion Switch (Complete) - EM10055300

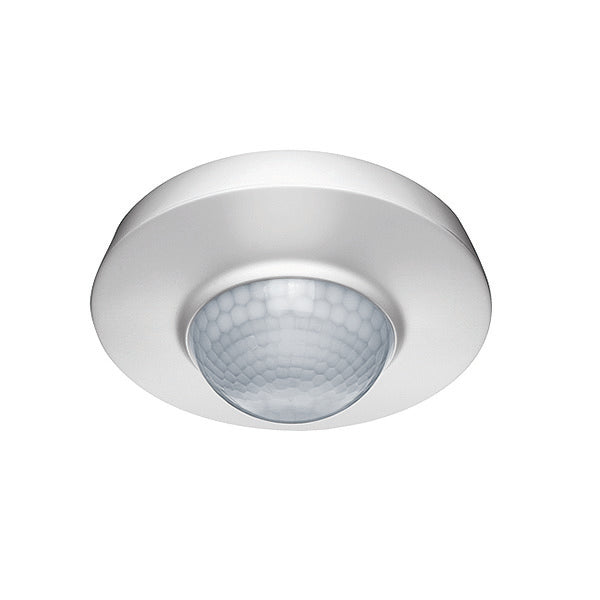

This motion detector from the STANDARD series from ESYLUX is a motion-responsive detector with a 360° detection angle, a range of approximately 8/24 meters (frontal/cross). Perfect for classrooms, offices, meeting rooms and transit areas with no or little natural light. The motion detector is only suitable for ceiling mounting (optimally at a height of 3 meters, maximum 10 meters). The higher you hang the motion detector, the greater the range, only the sensitivity also decreases. With the motion detector, your lights will not have to be left on unnecessarily and you will save electricity.
- Regular price
- $174.67 USD
We sell only to registered businesses
Description
Motion detector with 360° field of detection provides demand-responsive lighting control, leading to noticeable energy cost reductions. It has a large range of up to 24 m in diameter, making it suitable for a variety of applications.
The device features a 16 A high-performance relay (tungsten pre-contact), making it ideal for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps and energy-saving lamps. The device can be programmed by remote control for functions like continuous lighting ON/OFF, and it also has automatic storage of the current light value.
The in-built selector switch for remote control/potentiometer settings prevents operating errors. The device is a flush-mounted as standard. It also comes with a universal surface-mounted box IP 54 with double diaphragm line entrance as an accessory. It also has double plug-in terminals for through-wiring.
The system is modular, consisting of a power box and plug-in sensor. After the painting work is completed, the sensor can simply be plugged into the power box. The power box has large wiring space due to its low overall height. Default settings ensure immediate operability.
The device has an additional switch input for manual control. The setting elements are concealed to prevent unintentional parameter adjustments. The device also has an in-built impulse feature for controlling automatic stairwell lights or control devices, and for use in facility management or programmable logic controller.
