ESYLUX Compact Switching Actuator Bus System - EP10427473

ESYLUX Compact Switching Actuator Bus System - EP10427473
ESYLUX Compact Switching Actuator Bus System - EP10427473

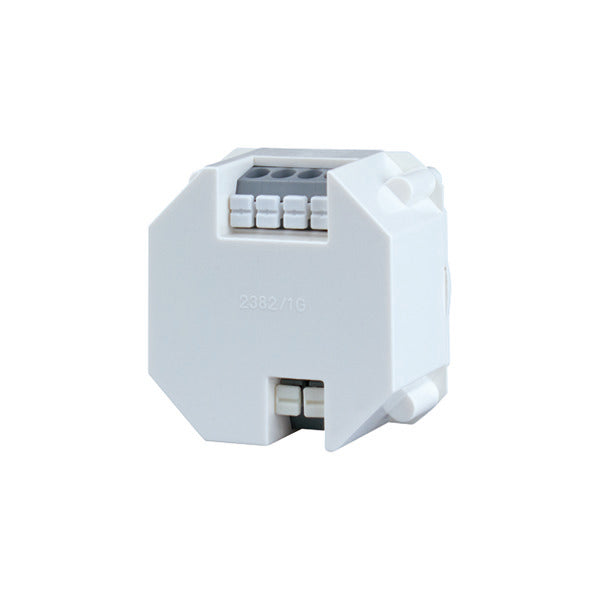

Image may vary slightly
See specifications for accurate information.
Reference: E37M9
Brand: ESYLUX
Mfr. Part: EP10427473

Esylux Compact switching actuator bus system, flush-mounted installation, max. Number of switching outputs 1, 1 digital inputs, operating voltage (measurement voltage) 13 - 22.4V, degree of protection (IP) IP20, bus connection incl., max. Switching current 10A, max. Switching capacity 2300W, min. Depth of flush-mounted box 25mm.

View all
$45.84 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 46 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Esylux Compact switching actuator bus system, flush-mounted installation, max. Number of switching outputs 1, 1 digital inputs, operating voltage (measurement voltage) 13 - 22.4V, degree of protection (IP) IP20, bus connection incl., max. Switching current 10A, max. Switching capacity 2300W, min. Depth of flush-mounted box 25mm.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Built-in installation
Width in number of modular spacings
0
Local operation/hand operation
No
With LED indication
No
Number of digital inputs
1
Max. switching power
2300 W
Output power
0.2 W
Suitable for C-load
No
Max. number of switching contacts
1
Max. switching current
10 A
Rated operating voltage
13..22.4 V
Different phases connectable
No
With bus connection
Yes
