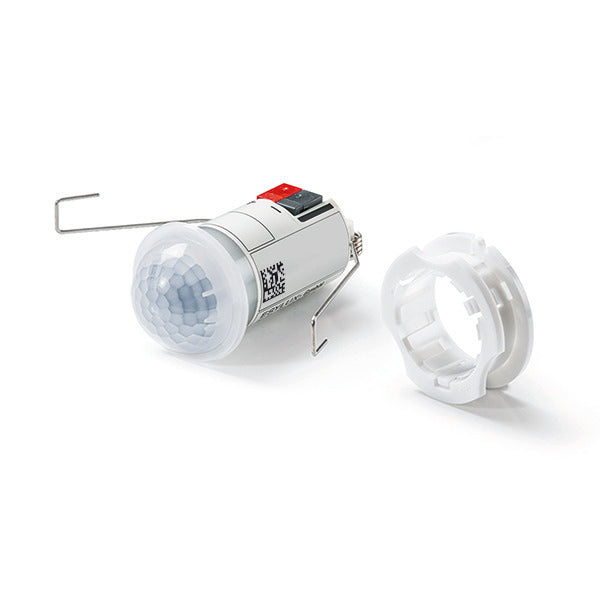

ESYLUX Compact Mini Motion Detector Bus System - EP10426155
Esylux Compact Mini motion detector bus system, plastic, recessed, presence detector type, KNX bus system, optimal mounting height 3m, response brightness adjustable, 3 channels, bus connection included, diameter range on floor 8m, angle range horizontally 180 - 360°.
- Regular price
- $136.17 USD
Description
The KNX Mini presence detector with a 360° field of detection is suitable for recessed ceiling mounting. It has a range of up to 8 m in diameter at a recommended installation height of 3 m. This detector is designed for use in the KNX, TP bus system in conjunction with other KNX components. Parameter and function settings are made via ETS. User remote control allows for manual, temporary switching or dimming.
The detector comes with communication objects, constant light control or switching, heating, ventilation, and air conditioning. It also includes a block object for HVAC, light value output, status report, and presence output. It can be used as either a 'master' or 'slave'.
The KNX button control is designed for light channels. It offers fully automatic or semi-automatic options, with 2 light values selectable for orientation light 10% - 50%. Other features include a test mode, correction factor for interior lighting, and a night-light feature. Targeted masking out of areas is possible by means of an enclosed lens mask.
