ESYLUX Compact Express Motion Switch (Complete) - EP10510717
This motion detector from ESYLUX's COMPACT EXPRESS series is a presence detector that responds to light and heat sources, with a 360° detection angle, a range of approximately 6/8 meters (frontal/cross). Perfect for small spaces and transit areas or small work areas with natural light. The motion detector is only suitable for ceiling mounting (optimally at a height of 3 meters, maximum 5 meters). The higher you hang the motion detector, the greater the range, only the sensitivity also decreases. With the motion detector, your lights will not have to be left on unnecessarily and you will save electricity.
- Regular price
- $169.76 USD
We sell only to registered businesses
Description

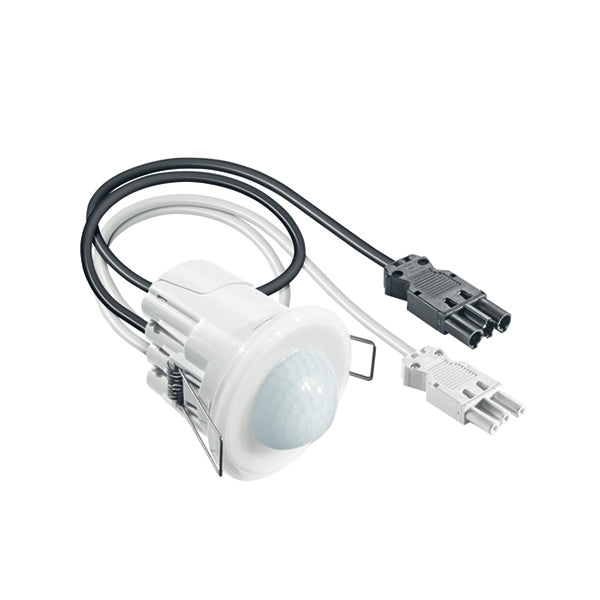

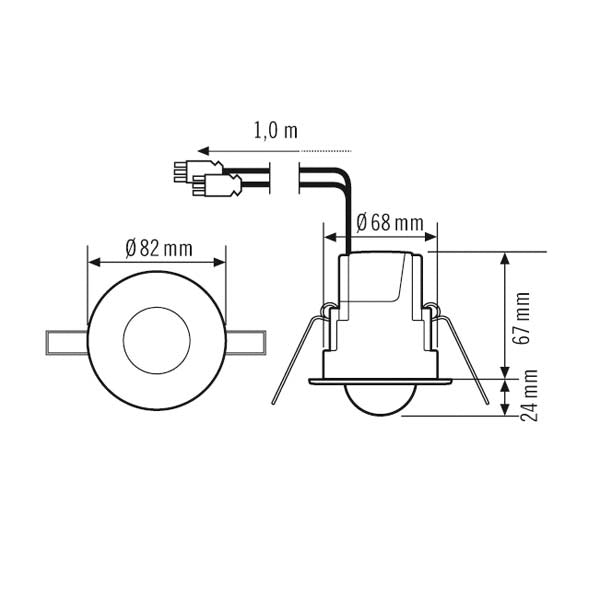

The presence detector with a 360° field of detection is specifically designed for recessed ceiling mounting. This detector has a maximum range of up to 8 m in diameter, which makes it the perfect choice for use in small rooms and passageways that have natural lighting. This device comes with a 1.0 m pre-assembled GST18i3 feed line.
It includes a 16 A high-performance relay that is ideal for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. The detector features an automatic light control that operates based on presence and daylight.
This device can be programmed using a remote control for continuous lighting ON/OFF, and it also automatically stores the current light value. The default settings are designed to ensure immediate operability. It also comes with an additional switch input for individual manual lighting control.
The presence detector can be used as either a fully automatic or semi-automatic device. The field of detection can be extended by connecting a "slave" presence detector. This device also has an in-built impulse feature for controlling automatic stairwell lights or control devices and can be utilized in facilities management/PLC.
