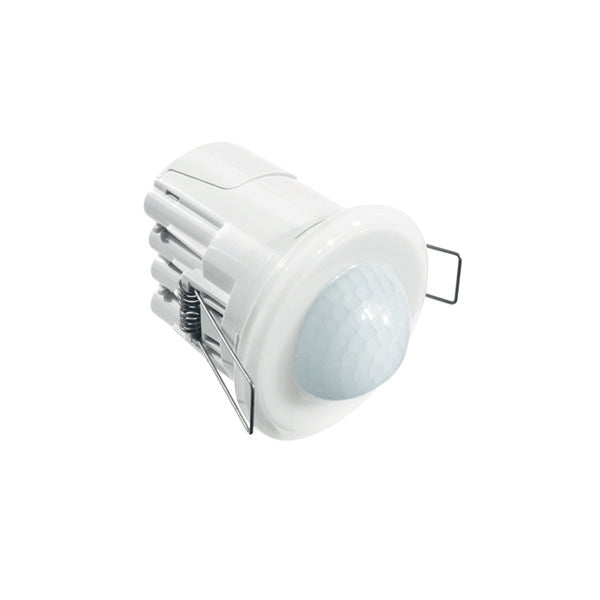

ESYLUX Compact Express Motion Sensor Element - EP10510748
Esylux Compact Express motion sensor element, plastic, white, wall channel, presence detector version, protection rating (IP) IP44, staircase monitoring, response sensitivity adjustable, response brightness adjustable, diameter range on floor 8m, halogen-free.
- Regular price
- $129.15 USD
We sell only to registered businesses
Description
The "slave" presence detector is used for extending the field of detection of a "master" presence detector. It has a 360° field of detection and is perfectly suited for recessed ceiling mounting. It has a range of up to 8 meters in diameter, acting as a cost-efficient system upgrade with up to ten additional extensions. All parameters are set on the "master" detector, while the "slave" device records movements and relays them to the "master".
The device is recessed-mounted by standard with a white cover and design ring, rated IP 20. There's also a universal surface-mounted box available, rated IP 54 and equipped with a double diaphragm line entrance as an accessory. The device also features double plug-in terminals for through-wiring.
The device is a part of a modular system that consists of a power box and a plug-in sensor. The power box can be installed or connected after the completion of the painting work, allowing the sensor to be simply plugged in. There is ample wiring space due to the low overall height of the power box.
The "slave" detector can be connected to the following presence detectors:
- PD-CE360i/8
- PD-CE360i/8 GST
- PD-CE360i/8 WAGO
- PD-CE360i/24
- PD-CE360i/24 GST
- PD-CE360i/24 WAGO
