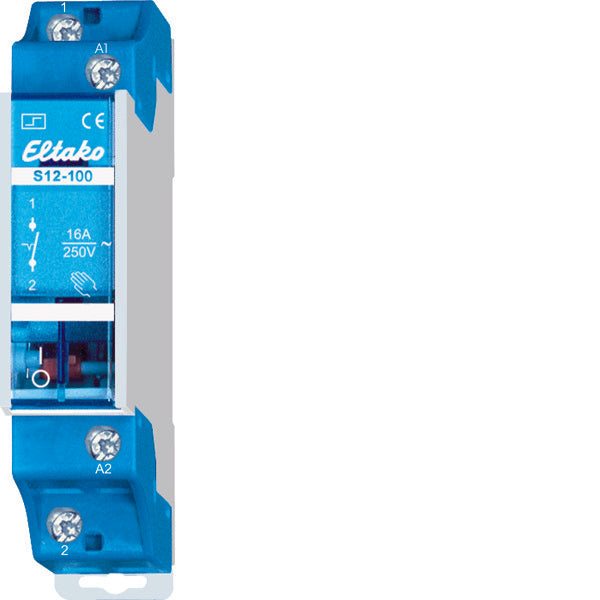

Eltako S12 Bistable Relay - 21100055

Eltako S12 Bistable Relay - 21100055
Eltako S12 Bistable Relay - 21100055
Image may vary slightly
See specifications for accurate information.
Reference: E2J2V
Brand: Eltako
Mfr. Part: 21100055

This impulse relay from Eltako's S12 series features one make contact (NO) and has the dimensions of 1 module (18mm wide and 55m deep). The impulse relay has manual operation and indication of the switching position. In addition, this impulse relay has a control voltage of 24V DC and a current rating of 16A. Furthermore, the impulse relay is suitable for mounting on a DIN rail DIN-EN 50.022.

View all
$41.04
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 18 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This impulse relay from Eltako's S12 series features one make contact (NO) and has the dimensions of 1 module (18mm wide and 55m deep). The impulse relay has manual operation and indication of the switching position. In addition, this impulse relay has a control voltage of 24V DC and a current rating of 16A. Furthermore, the impulse relay is suitable for mounting on a DIN rail DIN-EN 50.022.

Downloads

Specifications

Function
Other
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth (mm)
55
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
24 V to 24 V
Type of control voltage 1
DC
Rated switch current (A)
16
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
2300
Max. load fluorescent lamp (VA)
2300
Max. load fluorescent lamp (Duo circuit) (VA)
2300
Max. load fluorescent lamp (parallel compensated) (VA)
500
Max. switching current (cos phi = 0.6) (A)
10
Manual override
Yes
