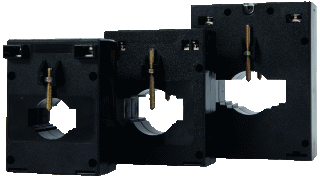

ELEQ RM Current Transformer 400/5A | 4M3454N

ELEQ RM Current Transformer 400/5A | 4M3454N
ELEQ RM Current Transformer 400/5A | 4M3454N
Image may vary slightly
See specifications for accurate information.
Reference: E24YW
Brand: ELEQ
Mfr. Part: 4M3454N

Eleq RM current measurement transformer, primary measuring current in 400A, secondary rated 5A, secondary (measuring), apparent power 5VA. Version overshooting current measurement transformer, accuracy class 0.2s. Height opening 17.8mm. Width opening 40mm. Opening diameter 30.5mm.

View all
$105.00
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 43 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Eleq RM current measurement transformer, primary measuring current in 400A, secondary rated 5A, secondary (measuring), apparent power 5VA. Version overshooting current measurement transformer, accuracy class 0.2s. Height opening 17.8mm. Width opening 40mm. Opening diameter 30.5mm.

Downloads

Specifications

Primary rated current (A)
400
Secondary rated current (A)
5
Secondary rated apparent power (VA)
5
Secondary connection
Screw connection
Over current limiting factor
FS 5
Accuracy class
0.2S
Calibrated
No
Number of primary inputs
1
Height opening (mm)
17.8 mm to 17.8 mm
Width opening (mm)
40 mm to 40 mm
Model
Attachable current transformer
With shock protection
Yes
Opening diameter (mm)
30.5
Snap mounting
No
With copper rail
No
