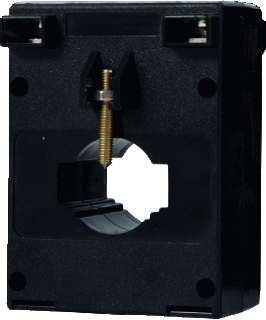

ELEQ RM Current Transformer 250/5A | 4M2452N

ELEQ RM Current Transformer 250/5A | 4M2452N
ELEQ RM Current Transformer 250/5A | 4M2452N
Image may vary slightly
See specifications for accurate information.
Reference: E24YV
Brand: ELEQ
Mfr. Part: 4M2452N

Eleq RM current measurement transformer, primary measuring current in 250A, secondary rated power 5A, version overshooting voltage current measuring transformer. Accuracy class 0.2s. Width opening 60mm. Opening diameter 14.5mm. Overcurrent limiting factor FS 5.

View all
$104.58
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Eleq RM current measurement transformer, primary measuring current in 250A, secondary rated power 5A, version overshooting voltage current measuring transformer. Accuracy class 0.2s. Width opening 60mm. Opening diameter 14.5mm. Overcurrent limiting factor FS 5.

Downloads

Specifications

Primary rated current (A)
250
Secondary rated current (A)
5
Secondary rated apparent power (VA)
2.5
Number of phases
1
Secondary connection
Screw connection
Output voltage
No
Over current limiting factor
FS 5
Accuracy class
0.2S
Calibrated
No
Conductor feedthrough
24.5 mm
Number of primary inputs
1
Width opening (mm)
60 mm to 60 mm
Model
Attachable current transformer
With shock protection
No
Opening diameter (mm)
14.5
Snap mounting
No
With copper rail
No
